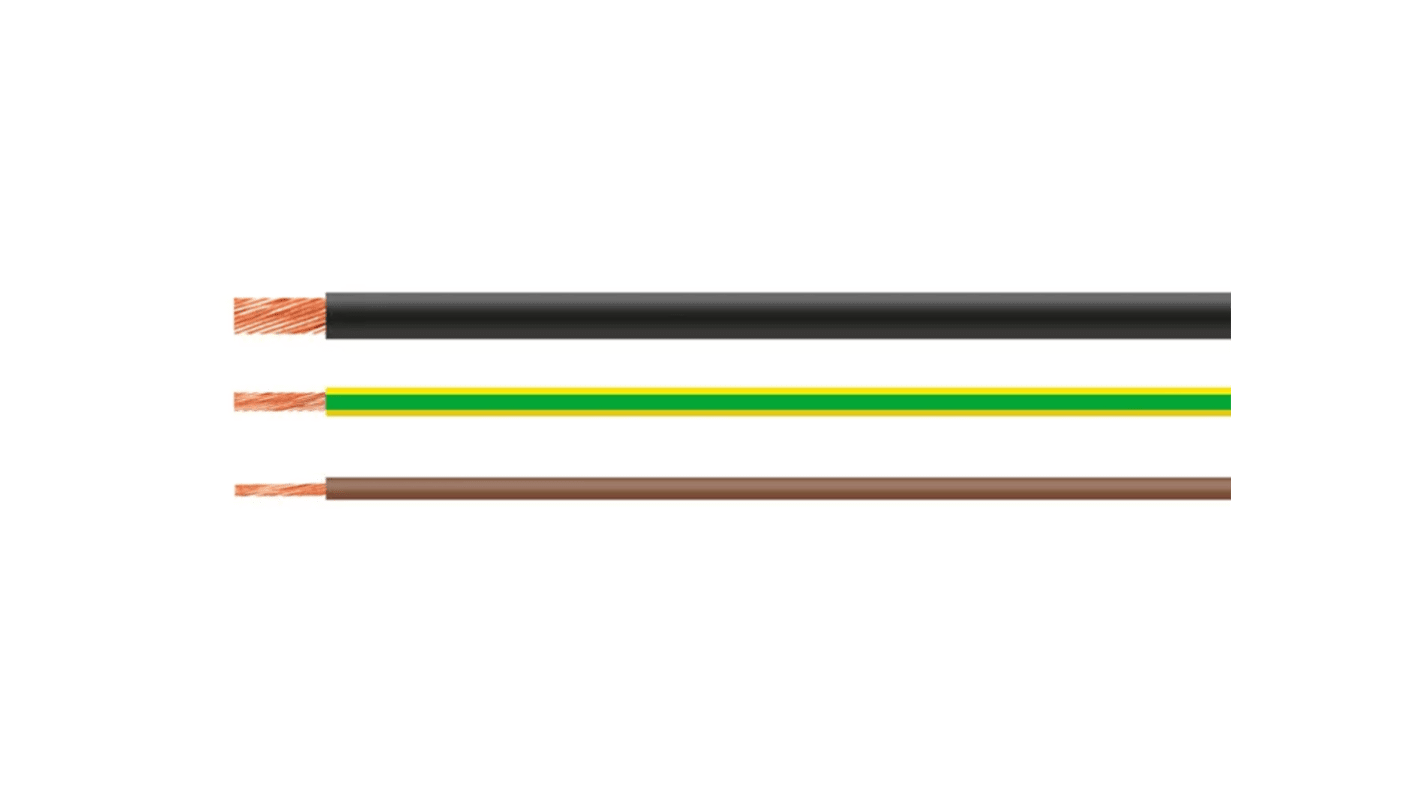

Helukabel H07V Series Black 16 mm² Hook Up Wire, 6 AWG, 100 m, Polyvinyl Chloride, 29209
- RS Stock No.:
- 362-010
- Mfr. Part No.:
- 29209
- Brand:
- Helukabel
Subtotal (1 reel of 100 metres)*
£281.49
(exc. VAT)
£337.79
(inc. VAT)
Stock information currently inaccessible - Please check back later
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £281.49 | £2.815 |
*price indicative
- RS Stock No.:
- 362-010
- Mfr. Part No.:
- 29209
- Brand:
- Helukabel
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Helukabel | |
| Product Type | Hook Up Wire | |
| Cross Sectional Area | 16 mm² | |
| Jacket Colour | Black | |
| American Wire Gauge | 6AWG | |
| Cable Length | 100m | |
| Maximum Operating Temperature | 80°C | |
| Conductor Material | Copper | |
| Standards/Approvals | DIN VDE 0207-363-3, DIN EN 50363-3, DIN EN 50525-2-31, DIN EN 60332-1-2, DIN VDE 0285-525-2-31, DIN VDE 0295, DIN VDE 0482-332-1-2, IEC 60227-3, IEC 60228, IEC 60332-1-2 | |
| Sub Type | Helukabel PVC Single Core Cable | |
| Cable Type | Round | |
| Jacket Material | Polyvinyl Chloride | |
| Minimum Operating Temperature | -30°C | |
| Fire Behaviour | Flame Retardant, Oil Resistant | |
| Series | H07V | |
| Select all | ||
|---|---|---|
Brand Helukabel | ||
Product Type Hook Up Wire | ||
Cross Sectional Area 16 mm² | ||
Jacket Colour Black | ||
American Wire Gauge 6AWG | ||
Cable Length 100m | ||
Maximum Operating Temperature 80°C | ||
Conductor Material Copper | ||
Standards/Approvals DIN VDE 0207-363-3, DIN EN 50363-3, DIN EN 50525-2-31, DIN EN 60332-1-2, DIN VDE 0285-525-2-31, DIN VDE 0295, DIN VDE 0482-332-1-2, IEC 60227-3, IEC 60228, IEC 60332-1-2 | ||
Sub Type Helukabel PVC Single Core Cable | ||
Cable Type Round | ||
Jacket Material Polyvinyl Chloride | ||
Minimum Operating Temperature -30°C | ||
Fire Behaviour Flame Retardant, Oil Resistant | ||
Series H07V | ||
- COO (Country of Origin):
- DE
The Helukabel PVC single core cable designed for an installation in electrical conduits, on or under plaster or similar enclosed systems. Suitable for protected and fixed installation in lighting systems or switching and control devices up to and including 1000 V AC voltage or up to 750 V DC voltage against earth. Not suitable for direct laying in cable ladders and cable trays, except as a potential equalization cable.
Radiation resistance
Finely stranded
DIN VDE 0482-332-1-2 and DIN EN 60332-1-2 standard
