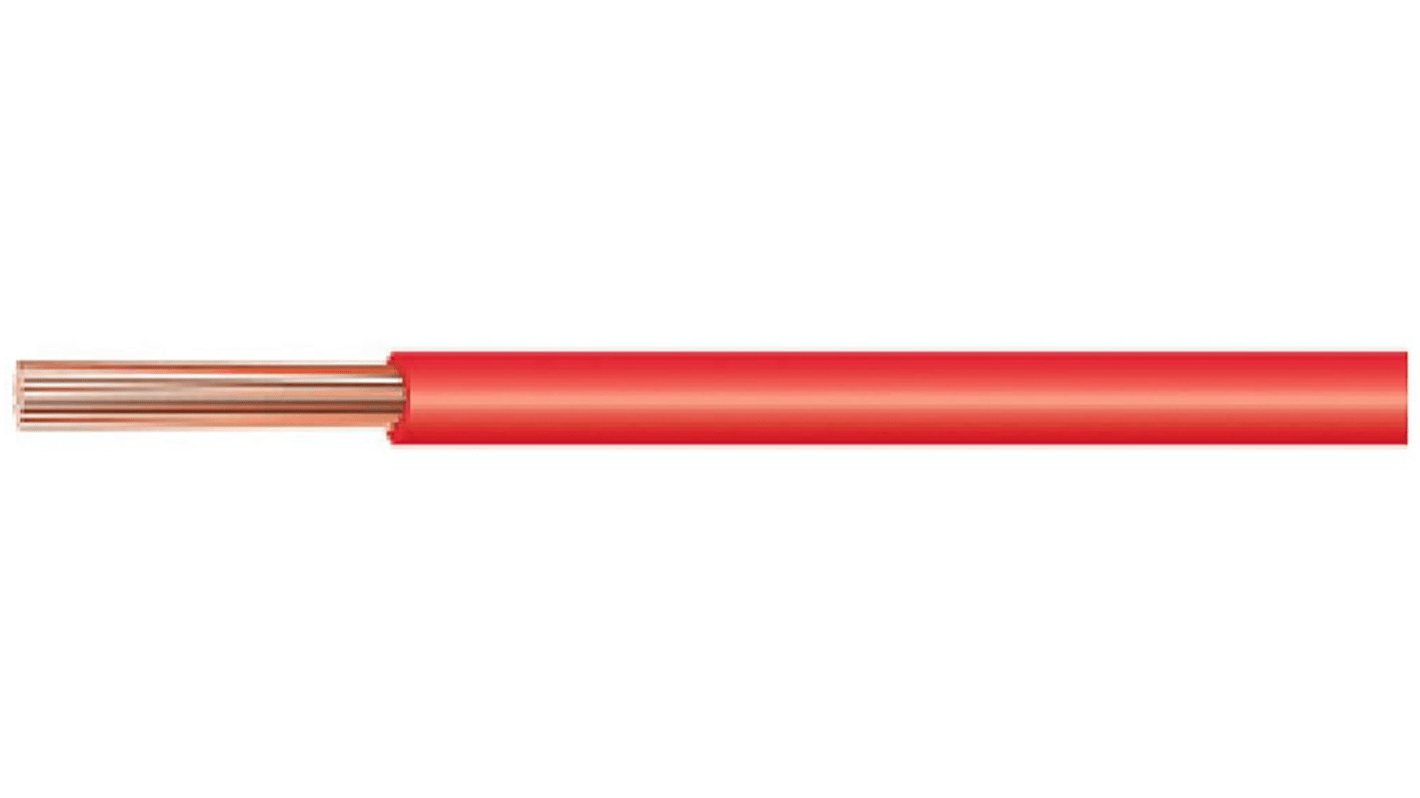

Helukabel H07V Series Red 16 mm² Hook Up Wire, 6 AWG, 100 m, Polyvinyl Chloride, 29213
- RS Stock No.:
- 362-013
- Mfr. Part No.:
- 29213
- Brand:
- Helukabel
Subtotal (1 reel of 100 metres)*
£225.82
(exc. VAT)
£270.98
(inc. VAT)
Stock information currently inaccessible - Please check back later
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £225.82 | £2.258 |
*price indicative
- RS Stock No.:
- 362-013
- Mfr. Part No.:
- 29213
- Brand:
- Helukabel
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Helukabel | |
| Product Type | Hook Up Wire | |
| Cross Sectional Area | 16 mm² | |
| Jacket Colour | Red | |
| American Wire Gauge | 6AWG | |
| Cable Length | 100m | |
| Voltage | 750V | |
| Maximum Operating Temperature | 80°C | |
| Conductor Material | Copper | |
| Cable Type | Round | |
| Jacket Material | Polyvinyl Chloride | |
| Sub Type | Helukabel PVC Single Core Cable | |
| Standards/Approvals | DIN VDE 0207-363-3 / DIN EN 50363-3 (compound type TI1), DIN VDE 0285-525-2-31 / DIN EN 50525-2-31, DIN VDE 0295 Class 5 / IEC 60228 Class 5, DIN VDE 0482-332-1-2 / DIN EN 60332-1-2 / IEC 60332-1-2, IEC 60227-3 | |
| Minimum Operating Temperature | 30°C | |
| Fire Behaviour | Flame Retardant, Oil Resistant | |
| Series | H07V | |
| Select all | ||
|---|---|---|
Brand Helukabel | ||
Product Type Hook Up Wire | ||
Cross Sectional Area 16 mm² | ||
Jacket Colour Red | ||
American Wire Gauge 6AWG | ||
Cable Length 100m | ||
Voltage 750V | ||
Maximum Operating Temperature 80°C | ||
Conductor Material Copper | ||
Cable Type Round | ||
Jacket Material Polyvinyl Chloride | ||
Sub Type Helukabel PVC Single Core Cable | ||
Standards/Approvals DIN VDE 0207-363-3 / DIN EN 50363-3 (compound type TI1), DIN VDE 0285-525-2-31 / DIN EN 50525-2-31, DIN VDE 0295 Class 5 / IEC 60228 Class 5, DIN VDE 0482-332-1-2 / DIN EN 60332-1-2 / IEC 60332-1-2, IEC 60227-3 | ||
Minimum Operating Temperature 30°C | ||
Fire Behaviour Flame Retardant, Oil Resistant | ||
Series H07V | ||
- COO (Country of Origin):
- DE
The Helukabel PVC single core cable designed for an installation in electrical conduits, on or under plaster or similar enclosed systems. Suitable for protected and fixed installation in lighting systems or switching and control devices up to and including 1000 V AC voltage or up to 750 V DC voltage against earth. Not suitable for direct laying in cable ladders and cable trays, except as a potential equalization cable.
Radiation resistance
Finely stranded
DIN VDE 0482-332-1-2 and DIN EN 60332-1-2 standard
