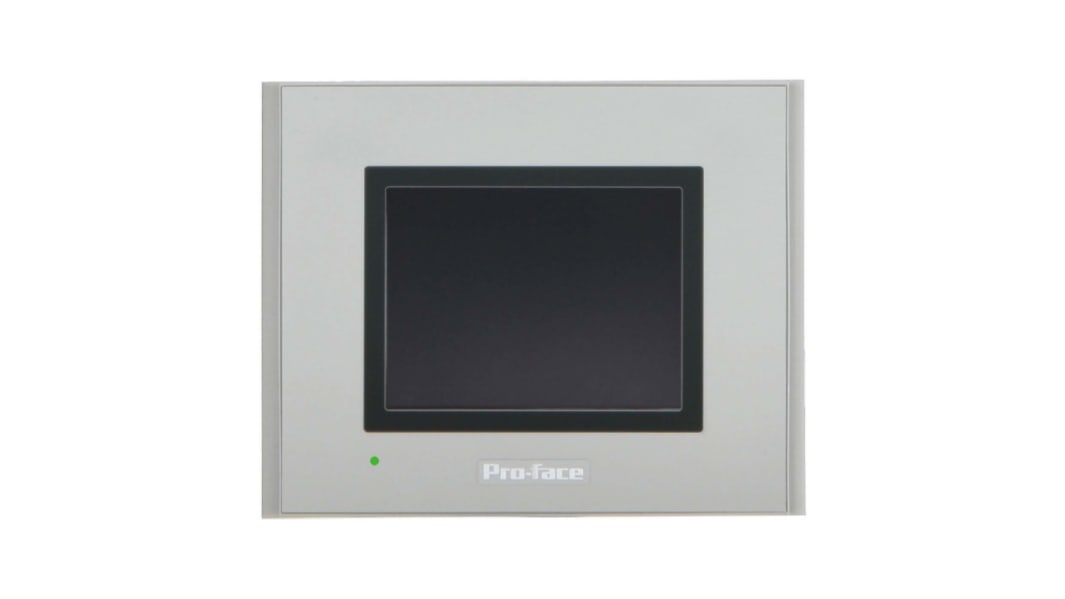

Pro-face GP4000 Series Touch Screen HMI - 5.7 in, TFT LCD Display, 320 x 240 pixel
- RS Stock No.:
- 144-4975
- Mfr. Part No.:
- PFXGP4301TADW
- Brand:
- Pro-face
Subtotal (1 unit)*
£1,049.61
(exc. VAT)
£1,259.53
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 20 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 + | £1,049.61 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 144-4975
- Mfr. Part No.:
- PFXGP4301TADW
- Brand:
- Pro-face
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Pro-face | |
| Series | GP4000 | |
| Product Type | Touch Screen HMI | |
| Display Type | TFT LCD | |
| Display Resolution | 320 x 240 pixel | |
| Number of Ports | 4 | |
| Port Type | USB | |
| Onboard Memory | 8MB | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 50°C | |
| Diagonal Display Size | 5.7in | |
| Backlighting | Yes | |
| Length | 169.5mm | |
| Depth | 137mm | |
| Width | 59.5mm | |
| Standards/Approvals | cUL, KC, CE, UL | |
| IP Rating | IP65F | |
| Better World Product | Yes | |
| Hazardous Area Certification | NO | |
| Select all | ||
|---|---|---|
Brand Pro-face | ||
Series GP4000 | ||
Product Type Touch Screen HMI | ||
Display Type TFT LCD | ||
Display Resolution 320 x 240 pixel | ||
Number of Ports 4 | ||
Port Type USB | ||
Onboard Memory 8MB | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 50°C | ||
Diagonal Display Size 5.7in | ||
Backlighting Yes | ||
Length 169.5mm | ||
Depth 137mm | ||
Width 59.5mm | ||
Standards/Approvals cUL, KC, CE, UL | ||
IP Rating IP65F | ||
Better World Product Yes | ||
Hazardous Area Certification NO | ||
Schneider Electric Pro-Face Touch Screen HMI, 8MB Application Memory,
For simple interaction with and control of your industrial equipment, choose this HMI from Schneider Electric's Pro-Face range. With a 320 x 240 pixel (QVGA) resolution, the unit gives you clear graphics quality, making it easy to monitor your machines. Its touch panel is made of resistive film, so it responds to either your fingers or a stylus for versatility. Thanks to an onboard memory capacity of 8MB, you can install control software to enable compatibility with your equipment.
Features & Benefits
• White LED backlight for use in areas with low light
• Wide operating temperature range of 0°C to +50°C for use in demanding conditions
• Power consumption of 10.5W or less for energy efficiency
• Touch panel service life of 1,000,000 operations for long-term performance
• Integrated 128kB backup memory for reliable data storage
Applications
• Automotive industry
• Process and packaging equipment
• Medical facilities
How many communication ports does this HMI have?
This versatile HMI has two COM ports for serial communication, 2 USB ports for data exchange with your PC and an Ethernet port to connect to the internet.
