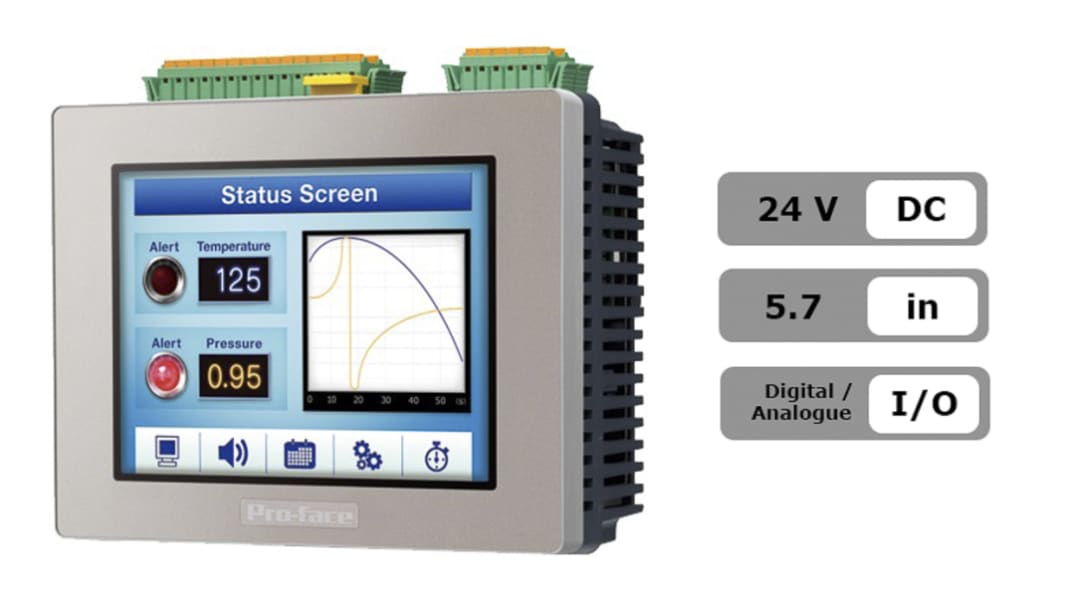

Pro-face LT4000M Series Touch Screen HMI - 5.7 in, TFT LCD Display, 320 x 240 pixel
- RS Stock No.:
- 144-4981
- Mfr. Part No.:
- PFXLM4301TADAC
- Brand:
- Pro-face
Subtotal (1 unit)*
£1,121.67
(exc. VAT)
£1,346.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 6 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,121.67 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 144-4981
- Mfr. Part No.:
- PFXLM4301TADAC
- Brand:
- Pro-face
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Pro-face | |
| Series | LT4000M | |
| Product Type | Touch Screen HMI | |
| Display Type | TFT LCD | |
| Display Resolution | 320 x 240 pixel | |
| Number of Ports | 5 | |
| Onboard Memory | 16MB | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 55°C | |
| Diagonal Display Size | 5.7in | |
| Backlighting | Yes | |
| Length | 163mm | |
| Depth | 129.4mm | |
| Width | 76.22mm | |
| Standards/Approvals | UL, CE, KC, cUL | |
| IP Rating | IP65 | |
| Better World Product | Yes | |
| Hazardous Area Certification | NO | |
| Select all | ||
|---|---|---|
Brand Pro-face | ||
Series LT4000M | ||
Product Type Touch Screen HMI | ||
Display Type TFT LCD | ||
Display Resolution 320 x 240 pixel | ||
Number of Ports 5 | ||
Onboard Memory 16MB | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 55°C | ||
Diagonal Display Size 5.7in | ||
Backlighting Yes | ||
Length 163mm | ||
Depth 129.4mm | ||
Width 76.22mm | ||
Standards/Approvals UL, CE, KC, cUL | ||
IP Rating IP65 | ||
Better World Product Yes | ||
Hazardous Area Certification NO | ||
Pro-face Touch-Screen HMI Display
The Pro-face LT4000M series 5.7inch hybrid touch screen HMI display is an innovative device with built-in PLC functions display. The combination of HMI and PLC saves the panel space, wiring work and programming time. A 22mm modular mounting technique and separation cables allow easy detection of the LT4000M on a panel. It provides LED-backlit, TFT colour LCD type with 65,536 colours. This display is compact in size and all-in-one unit with easy-to-use touch screen display.
GP-Pro EX
Self-guiding development
Configure the system and communication
Search/sort alarm sampling history
Easy change recipe function
Project comparison tools
GP-Pro EX is the development software for all of the Pro-face series. The software is easy to use and takes users through the development process, one step at a time. The GP-Pro Ex software comes with a wide range of application development tools, expanded diagnostic features and simulation capabilities.
Features and Benefits
Multiple mounting options
Programmed with GP-Pro EX screen development software
USB interfaces for connection to BCR scanners, printers and memory devices
Supports serial or Ethernet protocols
Fast refresh and communication with 64-bit RISC CPU
Resolution is 320x240pixels (QVGA)
Active display area dimension is 115.2mm x 86.4mm
Port type: CAN-CiA D-sub9, Ethernet, RS422C/RS485, USB 2.0 (Mini-B), USB 2.0 (Type A)
Power consumption is up to13W or less
On-board memory is 16MB
Applications
Automation
Control panels
Manufacturing industry
Certifications
IP65F rated
ABS
CE certified
Class NK certified
DNV certified
EAC certified
RINA certified
UL approved
cUL approved
