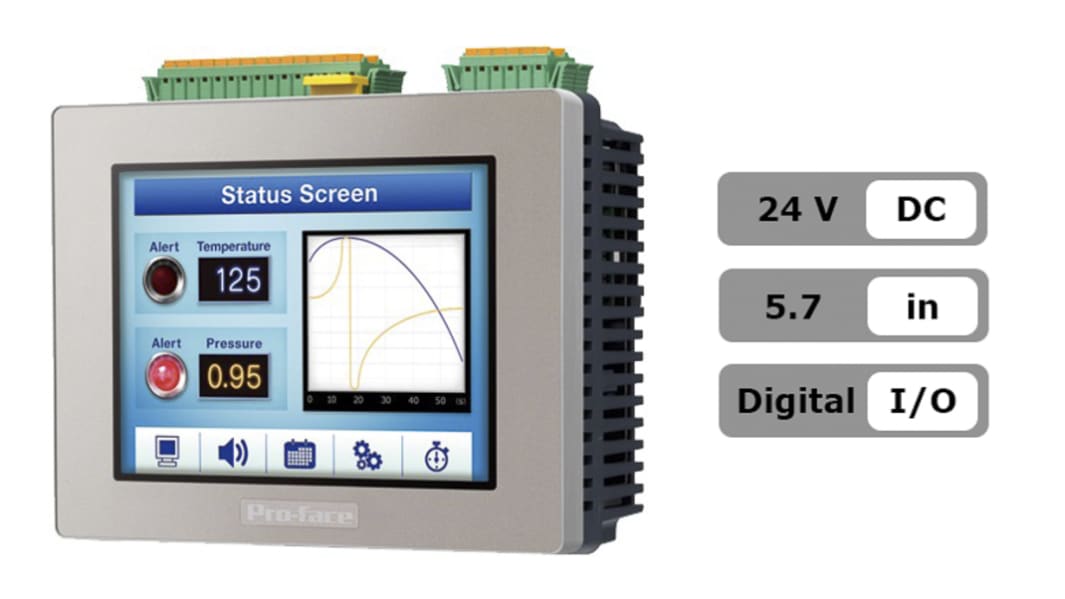

    Pro-face LT4000M Series Touch Screen HMI - 5.7 in, TFT LCD Display, 320 x 240pixels

    Pro-face
    RS Stock No.:
    144-4982
    Mfr. Part No.:
    PFXLM4301TADDC
    Brand:
    Pro-face
    View all HMI Displays
    9 In stock - FREE next working day delivery available
    Add to Basket
    Units

    Added

    Price Each

    £993.90

    (exc. VAT)

    £1,192.68

    (inc. VAT)

    UnitsPer unit
    1 +£993.90

    Better World

    We know you want to be able to choose products that are better for people and the planet. Our new Better World product range makes it easier for you to be informed and select a greener choice; we’ve partnered with trusted experts and selected over 40 sustainability certifications and energy labels to highlight products that are better for the environment. Each product is tagged with a Better World badge. – click here to read more.

    RS Stock No.:
    144-4982
    Mfr. Part No.:
    PFXLM4301TADDC
    Brand:
    Pro-face

    Technical Reference


    Legislation and Compliance


    Product Details

    Pro-face Touch-Screen HMI Displays


    The Pro-face LT4000M series hybrid touch screen HMI has a built-in 5.7inch TFT LCD PLC function display. The combination of HMI plus PLC saves panel space, wiring work and programming time. It is possible to locate LT4000M on a panel with an easy 22mm modular mounting and separation cables. This display also provides LED-backlit TFT colour LCD type with 65,536 colours. It is compact in size and all-in-one unit with easy-to-use touch screen display.
    GP-Pro EX
    Self-guiding development
    Configure the system and communication
    Search/sort alarm sampling history
    Easy change recipe function
    Project comparison tools
    GP-Pro EX is the development software for all the Pro-face series. This software is easy to use and takes users through the development process one step at a time. The GP-Pro Ex software comes with a wide range of application development tools, expanded diagnostic features and simulation capabilities.

    Features and Benefits


    Multiple mounting options
    Programmed with GP-Pro EX screen development software
    USB interfaces for connection to BCR scanners, printers and memory devices
    Supports Serial or Ethernet protocols
    Fast refresh and communication with 64-bit RISC CPU
    Resolution is 320x240 (QVGA)
    Active display area of 115.2mm x 86.4mm
    Port types available CAN-CiA D-sub9, Ethernet, RS422C/RS485, USB 2.0 (Mini-B) and USB 2.0 (Type A)
    Power consumption is 13W or less
    Backlight White LED

    Certifications


    IP65F rated
    ABS
    CE certified
    Class NK certified
    DNV certified
    EAC certified
    RINA certified
    UL listed
    cUL listed


    Specifications

    AttributeValue
    Manufacturer SeriesLT4000M
    Display TypeTFT LCD
    Display Size5.7 in
    Display Resolution320 x 240pixels
    Display ColourColour
    InterfaceUSB
    Port TypeCAN-CiA D-sub9, Ethernet, RS422C/RS485, USB 2.0 (Mini-B), USB 2.0 (Type A)
    Processor Type64 Bit RISC
    Onboard Memory16 MB
    BacklightingYes
    Supply Voltage24 V dc
    IP RatingIP65
    Better World ProductYes
    Depth129.4mm
    Width76.22mm
    Minimum Operating Temperature0°C
    Dimensions163 x 76.22 x 129.4 mm
    Length163mm
    Better World VerificationGreen Premium
