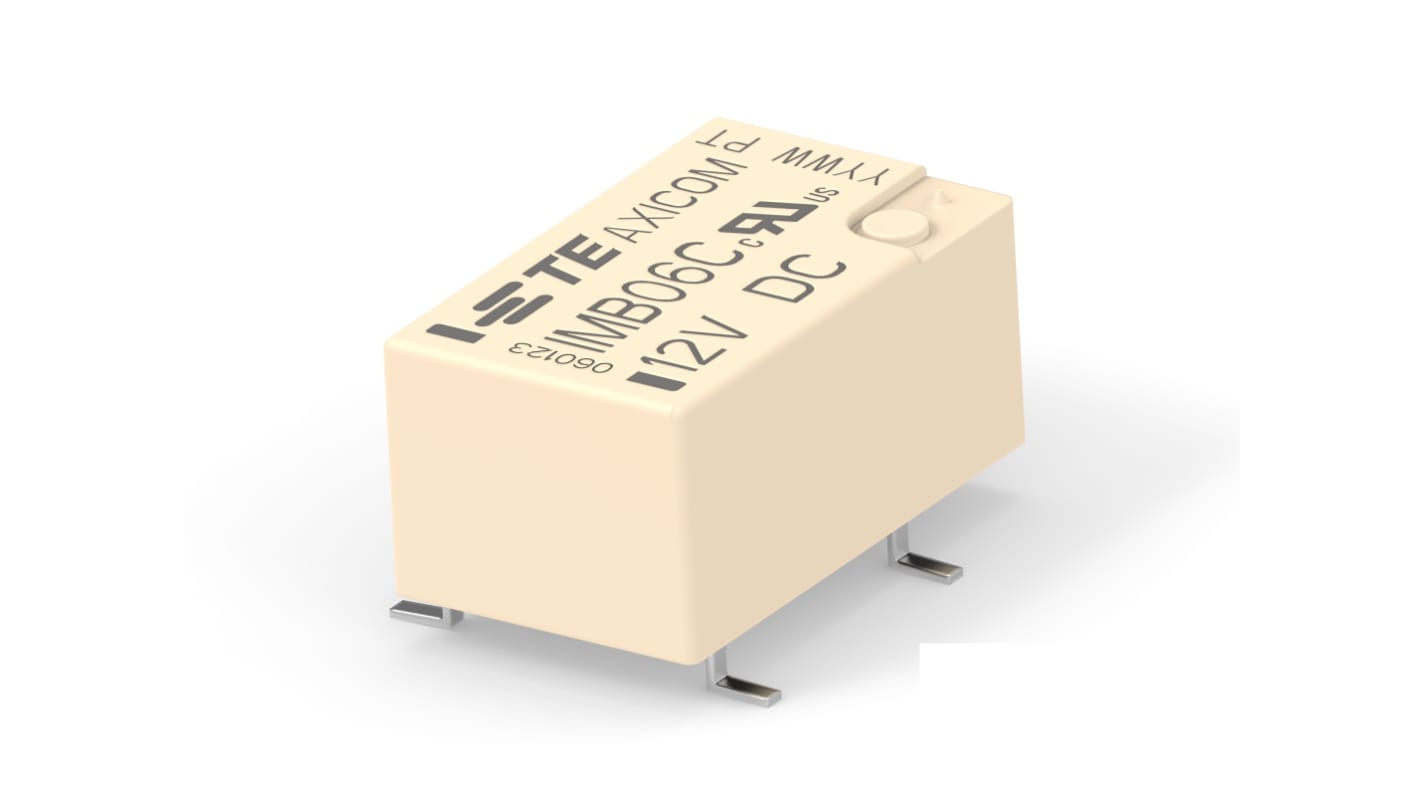

TE Connectivity PCB Mount Relay, 12V dc Coil, SPST

View all HF & RF Relays

Subtotal (1 reel of 1000 units)*

£2,505.00

(exc. VAT)

£3,006.00

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
1000 +£2.505£2,505.00

*price indicative

RS Stock No.:
279-8751
Distrelec Article No.:
301-67-786
Mfr. Part No.:
1462041-3
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Coil Resistance

1.029 kΩ

Relay Type

HF Relay

Contact Resistance

100 mΩ

Insertion Loss

0.03 And 0.33 dB

Isolation

18.8 And 37 dB

Contact Configuration

SPST

Coil Voltage

12V dc

Mounting Type

PCB Mount

Coil Power

140mW

Contact Material

Gold Plated

Length

10mm

Dimensions

10 x 6 x 5.65mm

Maximum Operating Temperature

+85°C

Height

5.65mm

Contact Current Rating

2A

Minimum Operating Temperature

-40°C

Number of Poles

1

Operating Temperature Range

-40 → 85°C

Terminal Type

PCB Pin

Switching Voltage

250V ac/dc

Depth

6mm

TE Connectivity PCB Mount Signal Relay - IM Series


IM series slimline PCB mount signal relays with a low profile of 5.65mm that occupy a minimum board space of 60mm². These slimline IM series PCB mount signal relays have a low coil power consumption of 140mW for standard coil, 100mW for bistable and 50mW for the ultra high sensitive versions, along with a high dielectric surge capability and 300g mechanical shock resistance.

Features and Benefits:


• Slimline and low profile - 10x6x5.65 mm
• Bifurcated contacts, gold plated
• Hermetically sealed (RT V), IP67
• High mechanical shock resistance up to 300G functional, 500G survival
• Insulation resistance at 500V dc >10⁹Ω
• High surge capability (1.2/50 μs and 10 / 700 μs) meets Telcordia GR 1089, FCC Part 68 and ITU-T K20,21,45.
• 1500V between open contacts and 2500V between coil and contacts

Applications:


• Telecommunication equipment
• Optical network terminals
• Office equipment
• Test and measurement equipment
• Medical equipment
• Automotive applications

Approvals

UL
The TE Connectivity Axicom IM-B signal relays is equipped with a 1 pole normally open contact, available as high dielectric or high load version.

Switching current 2A
Bifurcated or single contacts
High mechanical shock resistance
