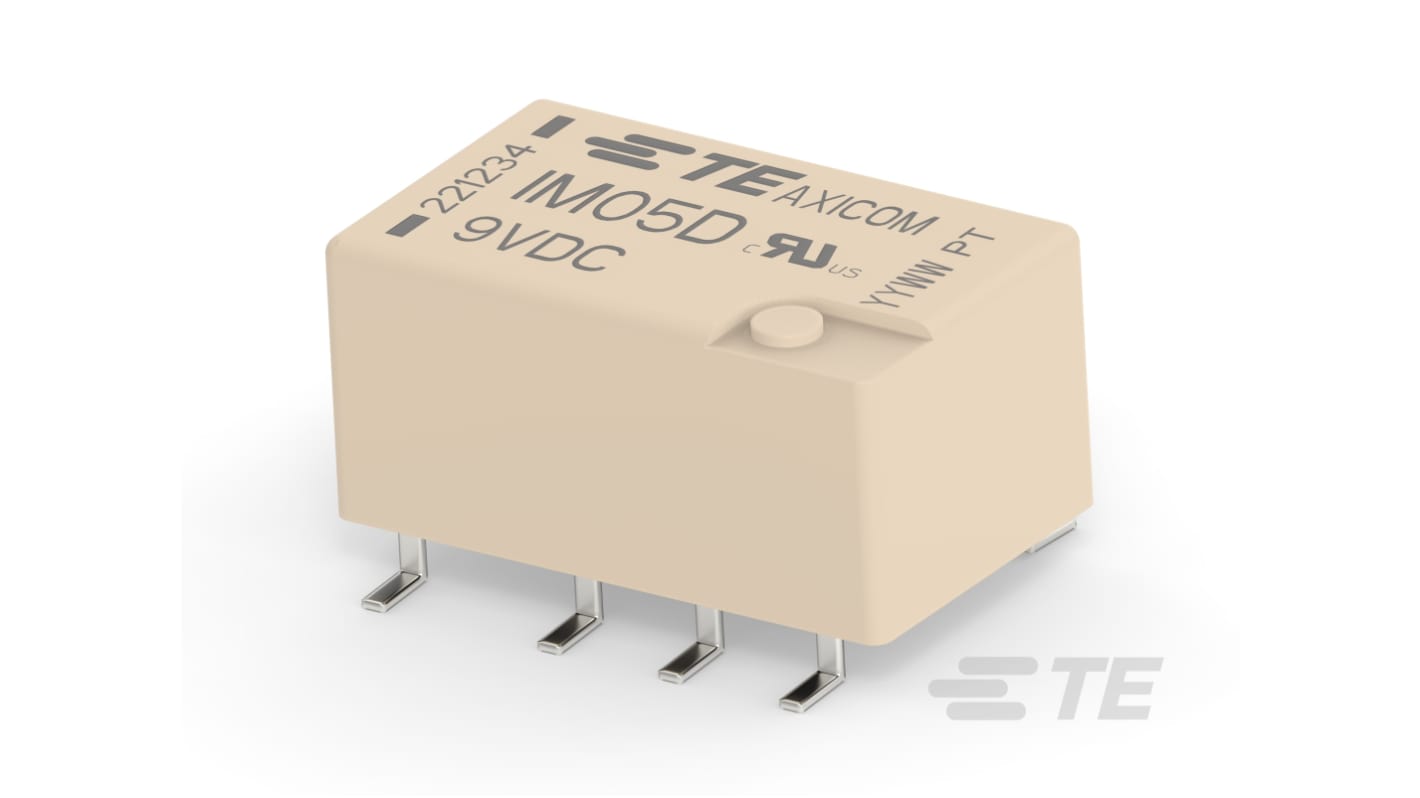

TE Connectivity PCB Relay, 9V dc Coil, 900 MHz Max. Coil Freq., DPDT
- RS Stock No.:
- 474-285
- Distrelec Article No.:
- 304-59-843
- Mfr. Part No.:
- 1-1462039-7
- Brand:
- TE Connectivity
Subtotal (1 reel of 1000 units)*
£2,353.82
(exc. VAT)
£2,824.58
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Stock information currently inaccessible - Please check back later
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £2,353.82 | £2.354 |
*price indicative
- RS Stock No.:
- 474-285
- Distrelec Article No.:
- 304-59-843
- Mfr. Part No.:
- 1-1462039-7
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Maximum Coil Frequency | 900MHz | |
| Product Type | Relay | |
| Coil Resistance | 579Ω | |
| Insertion Loss | -0.33dB | |
| Isolation | -37dB | |
| Contact Configuration | DPDT | |
| Terminal Type | Surface Mount | |
| Mount Type | PCB | |
| Contact Current | 5A | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Length | 10mm | |
| Series | Axicom IM | |
| Standards/Approvals | China RoHS 2 Directive MIIT Order No 32, 2016, EU ELV Directive 2000/53/EC Compliant, EU RoHS Directive 2011/65/EU Compliant | |
| Coil Power | 0.14W | |
| Height | 5.65mm | |
| Contact Material | Silver Nickel Alloy | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Maximum Coil Frequency 900MHz | ||
Product Type Relay | ||
Coil Resistance 579Ω | ||
Insertion Loss -0.33dB | ||
Isolation -37dB | ||
Contact Configuration DPDT | ||
Terminal Type Surface Mount | ||
Mount Type PCB | ||
Contact Current 5A | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Length 10mm | ||
Series Axicom IM | ||
Standards/Approvals China RoHS 2 Directive MIIT Order No 32, 2016, EU ELV Directive 2000/53/EC Compliant, EU RoHS Directive 2011/65/EU Compliant | ||
Coil Power 0.14W | ||
Height 5.65mm | ||
Contact Material Silver Nickel Alloy | ||
- COO (Country of Origin):
- PT
The TE Connectivity high-performance relay is designed for general-purpose signal applications, ensuring reliability and efficiency in various settings. The device utilizes a polarized, monostable mechanism and features a 2 Form C DPDT-CO configuration, which lends itself to versatile switching capabilities. With a robust contact rating and impressive coil voltage specification, this relay provides seamless operation for DC applications. Its hermetically sealed enclosure enhances durability, making it suitable for challenging environments, while the unique construction ensures consistent performance over time. Engineered for easy PCB SMT integration, this relay simplifies installation and contributes to overall system efficiency. The combination of exceptional electrical characteristics, such as high insulation resistance and limited contact current ratings, establishes this relay as a trusted component in a multitude of electronic applications.
Supplies a reliable solution for signal switching in diverse applications
Ensures minimal insertion loss, maintaining signal integrity
Features gold-plated contacts for enhanced conductivity and reduced wear
Designed to withstand extreme temperature ranges, enhancing durability
Offers reflow solder capability, making installation efficient and straightforward
Exhibits low weight, facilitating ease of integration into compact designs
Meets various international compliance standards for environmental safety
