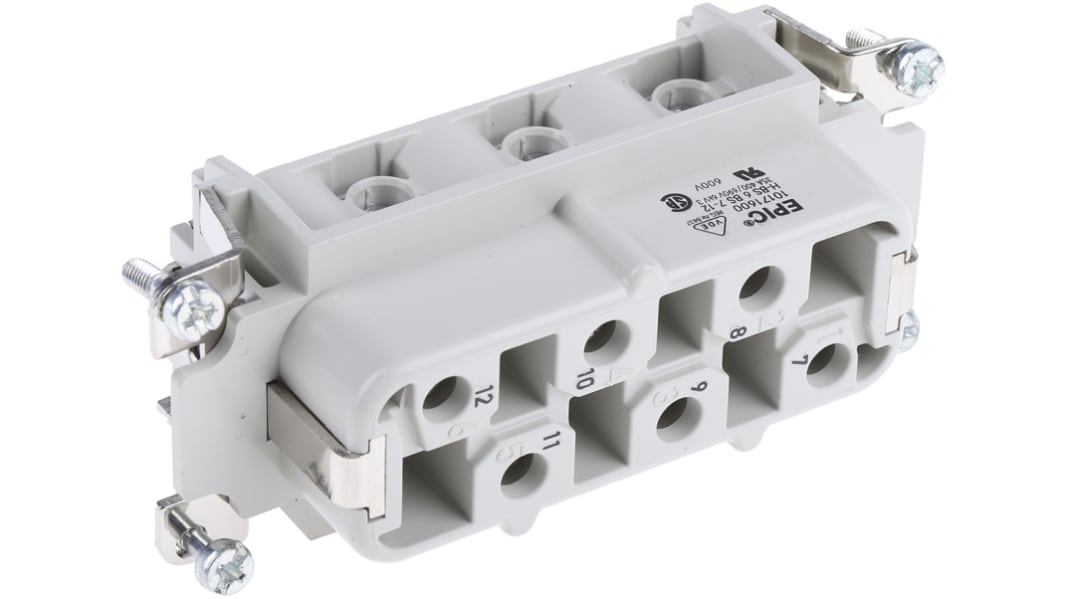

EPIC Heavy Duty Power Connector Insert, 35 A, HBS Series Female, 6 Contacts

View this category
Bulk discount available

Subtotal (1 unit)*

£27.18

(exc. VAT)

£32.62

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 32 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£27.18
10 - 24£26.12
25 - 49£25.03
50 +£23.94

*price indicative

RS Stock No.:
367-2923
Mfr. Part No.:
10171600
Brand:
EPIC
Find similar products by selecting one or more attributes.
Select all

Brand

EPIC

Product Type

Heavy Duty Power Connector Insert

Current Rating

35 A

Series

HBS

Sub Type

Connector Insert

Connector Gender

Female

For Use With

Heavy Duty Power Connector

Pole Format

6

Number of Rows

2

Voltage

600 V

Mount Type

Cable

Manufacturer Size Code

32B

Standards/Approvals

No

Number of Contacts

6

Maximum Wire Size mm²

6mm²

Minimum Wire Size mm²

0.5mm²

Contact Plating

Silver

Contact Material

Copper Alloy

Orientation

Straight

COO (Country of Origin):
DE

H-BS Inserts


H-BS 6 way inserts fit in H-BE 16 hoods and housings

H-BS 12 way inserts fit in H-BE 32 hoods and housings

12 way version needs 6 way (1-6 pin) + 12 way (7-12 pin ) inserts

For hoods and housings see typically stock no. 448-727

Thermoplastic resin body

HBS Range


Assembled connectors are type tested to 35A, 440Vac. Features are as listed for 440Vac 16A Group C connectors but with cable acceptance up to 6.0mm2 wires by screw termination.

Approvals

UL recognised component; CSA cerfified
