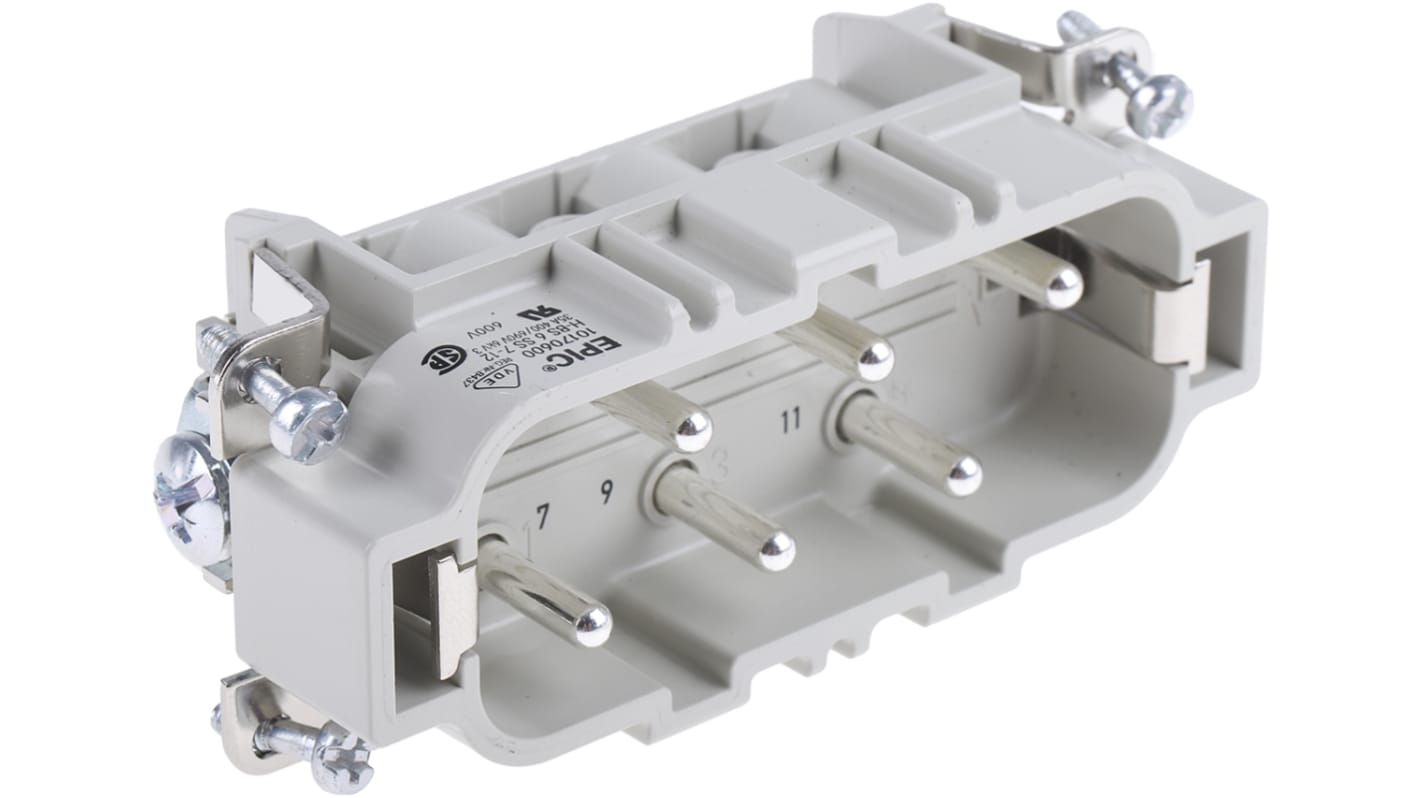

EPIC Heavy Duty Power Connector Insert, 35A, HBS Series Male, 12 Contacts
- RS Stock No.:
- 367-2939
- Mfr. Part No.:
- 10170600
- Brand:
- EPIC
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£24.50
(exc. VAT)
£29.40
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 6 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £24.50 |
| 10 - 24 | £23.51 |
| 25 - 49 | £22.53 |
| 50 + | £21.55 |
*price indicative
- RS Stock No.:
- 367-2939
- Mfr. Part No.:
- 10170600
- Brand:
- EPIC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EPIC | |
| Current Rating | 35A | |
| Product Type | Heavy Duty Power Connector Insert | |
| Series | HBS | |
| Sub Type | Connector Insert | |
| Connector Gender | Male | |
| For Use With | Heavy Duty Power Connector | |
| Pole Format | 12+PE | |
| Number of Rows | 2 | |
| Voltage | 440V ac | |
| Mount Type | Cable | |
| Standards/Approvals | No | |
| Number of Contacts | 12 | |
| Manufacturer Size Code | 32B | |
| Contact Material | Copper Alloy | |
| Orientation | Straight | |
| Maximum Wire Size mm² | 6mm² | |
| Contact Plating | Silver | |
| Minimum Wire Size mm² | 0.5mm² | |
| Select all | ||
|---|---|---|
Brand EPIC | ||
Current Rating 35A | ||
Product Type Heavy Duty Power Connector Insert | ||
Series HBS | ||
Sub Type Connector Insert | ||
Connector Gender Male | ||
For Use With Heavy Duty Power Connector | ||
Pole Format 12+PE | ||
Number of Rows 2 | ||
Voltage 440V ac | ||
Mount Type Cable | ||
Standards/Approvals No | ||
Number of Contacts 12 | ||
Manufacturer Size Code 32B | ||
Contact Material Copper Alloy | ||
Orientation Straight | ||
Maximum Wire Size mm² 6mm² | ||
Contact Plating Silver | ||
Minimum Wire Size mm² 0.5mm² | ||
- COO (Country of Origin):
- DE
H-BS Inserts
H-BS 6 way inserts fit in H-BE 16 hoods and housings
H-BS 12 way inserts fit in H-BE 32 hoods and housings
12 way version needs 6 way (1-6 pin) + 12 way (7-12 pin ) inserts
For hoods and housings see typically stock no. 448-727
Thermoplastic resin body
HBS Range
Assembled connectors are type tested to 35A, 440Vac. Features are as listed for 440Vac 16A Group C connectors but with cable acceptance up to 6.0mm2 wires by screw termination.
Approvals
UL recognised component; CSA cerfified
