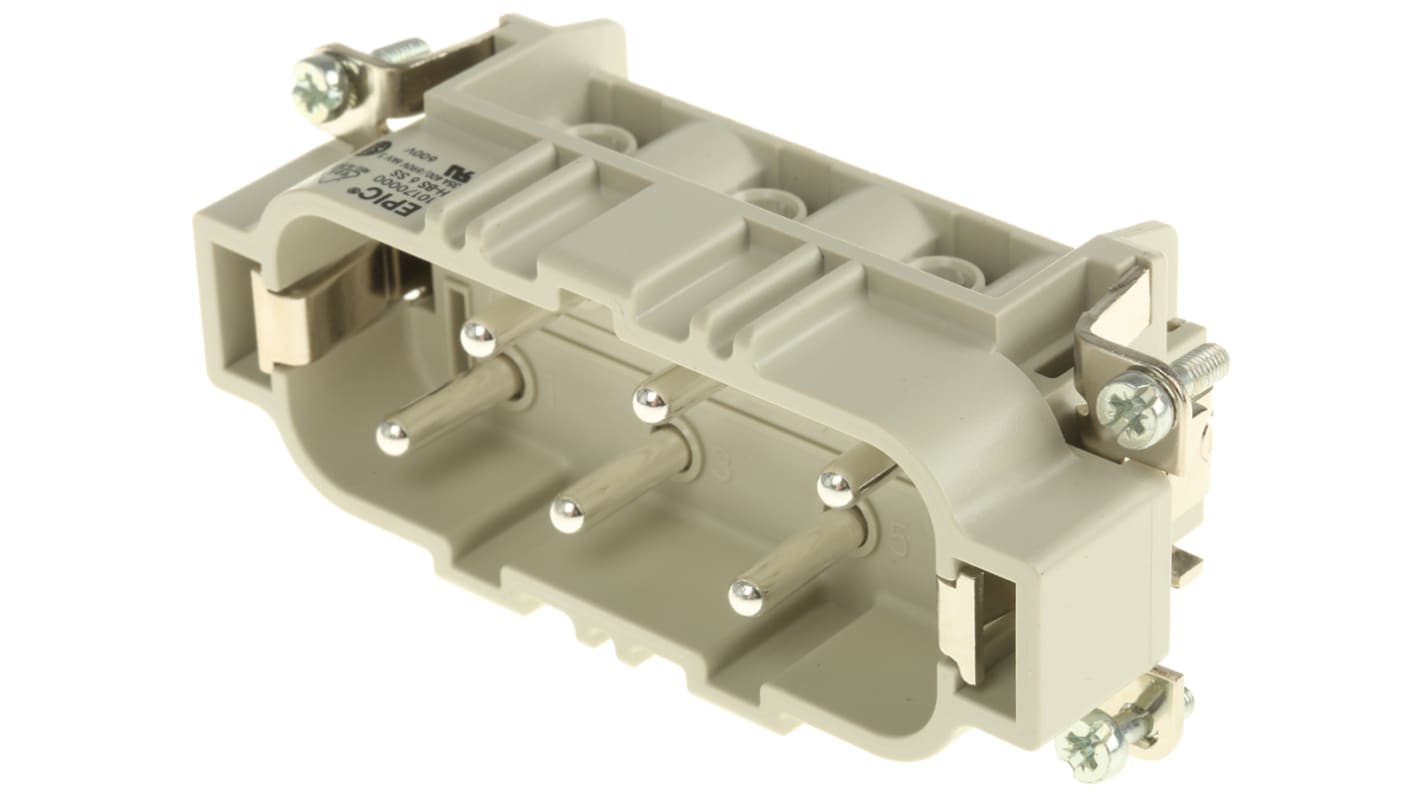

EPIC Heavy Duty Power Connector Insert, 35A, 10170000 Series Male, 6 Contacts
- RS Stock No.:
- 367-2917
- Mfr. Part No.:
- 10170000
- Brand:
- EPIC
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£25.69
(exc. VAT)
£30.83
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 142 unit(s) shipping from 20 July 2026
- Plus 1 unit(s) shipping from 20 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £25.69 |
| 10 - 24 | £24.66 |
| 25 - 49 | £23.64 |
| 50 + | £22.61 |
*price indicative
- RS Stock No.:
- 367-2917
- Mfr. Part No.:
- 10170000
- Brand:
- EPIC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EPIC | |
| Product Type | Heavy Duty Power Connector Insert | |
| Current Rating | 35A | |
| Series | 10170000 | |
| Sub Type | Connector Insert | |
| Connector Gender | Male | |
| For Use With | Heavy Duty Power Connector | |
| Pole Format | 6 | |
| Number of Rows | 2 | |
| Voltage | 600V | |
| Mount Type | Cable | |
| Manufacturer Size Code | 16B | |
| Standards/Approvals | No | |
| Number of Contacts | 6 | |
| Orientation | Straight | |
| Contact Plating | Silver | |
| Contact Material | Copper Alloy | |
| Minimum Wire Size mm² | 0.5mm² | |
| Maximum Wire Size mm² | 6mm² | |
| Select all | ||
|---|---|---|
Brand EPIC | ||
Product Type Heavy Duty Power Connector Insert | ||
Current Rating 35A | ||
Series 10170000 | ||
Sub Type Connector Insert | ||
Connector Gender Male | ||
For Use With Heavy Duty Power Connector | ||
Pole Format 6 | ||
Number of Rows 2 | ||
Voltage 600V | ||
Mount Type Cable | ||
Manufacturer Size Code 16B | ||
Standards/Approvals No | ||
Number of Contacts 6 | ||
Orientation Straight | ||
Contact Plating Silver | ||
Contact Material Copper Alloy | ||
Minimum Wire Size mm² 0.5mm² | ||
Maximum Wire Size mm² 6mm² | ||
- COO (Country of Origin):
- DE
LAPP Heavy Duty Power Connector Insert, Silver-Plated Copper Alloy Contacts, 6mm² Maximum Cross Section - EPIC Series - 10170000
Looking to create a robust connector setup for demanding factory or railway-based tasks? Try this heavy-duty power connector insert module from LAPP. Combine it with housing and levers from LAPP's HB-S range to provide power and data signals for your industrial automation and control applications. Its maximum rated current of 35A means it's practical when you need a durable component that safely withstands high current loads. Thanks to an impulse voltage rating of 6kV, you can rest assured you're protected from electric shocks even in case of significant surges.
• Operating temperature range of -40°C to +100°C for compatibility with harsh settings
• Simple screw termination lets you secure wires with cross-sections up to 6mm²
Applications
• Drive systems
• Plant engineering
• Control cabinets
• Vehicle construction
Is this insert component touch-safe?
This component's body is made of insulating thermoplastic so you can trust you won't be shocked when touching it.
H-BS Inserts
H-BS 6 way inserts fit in H-BE 16 hoods and housings
H-BS 12 way inserts fit in H-BE 32 hoods and housings
12 way version needs 6 way (1-6 pin) + 12 way (7-12 pin ) inserts
For hoods and housings see typically stock no. 448-727
Thermoplastic resin body
HBS Range
Assembled connectors are type tested to 35A, 440Vac. Features are as listed for 440Vac 16A Group C connectors but with cable acceptance up to 6.0mm2 wires by screw termination.
Approvals
UL recognised component; CSA cerfified
