Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

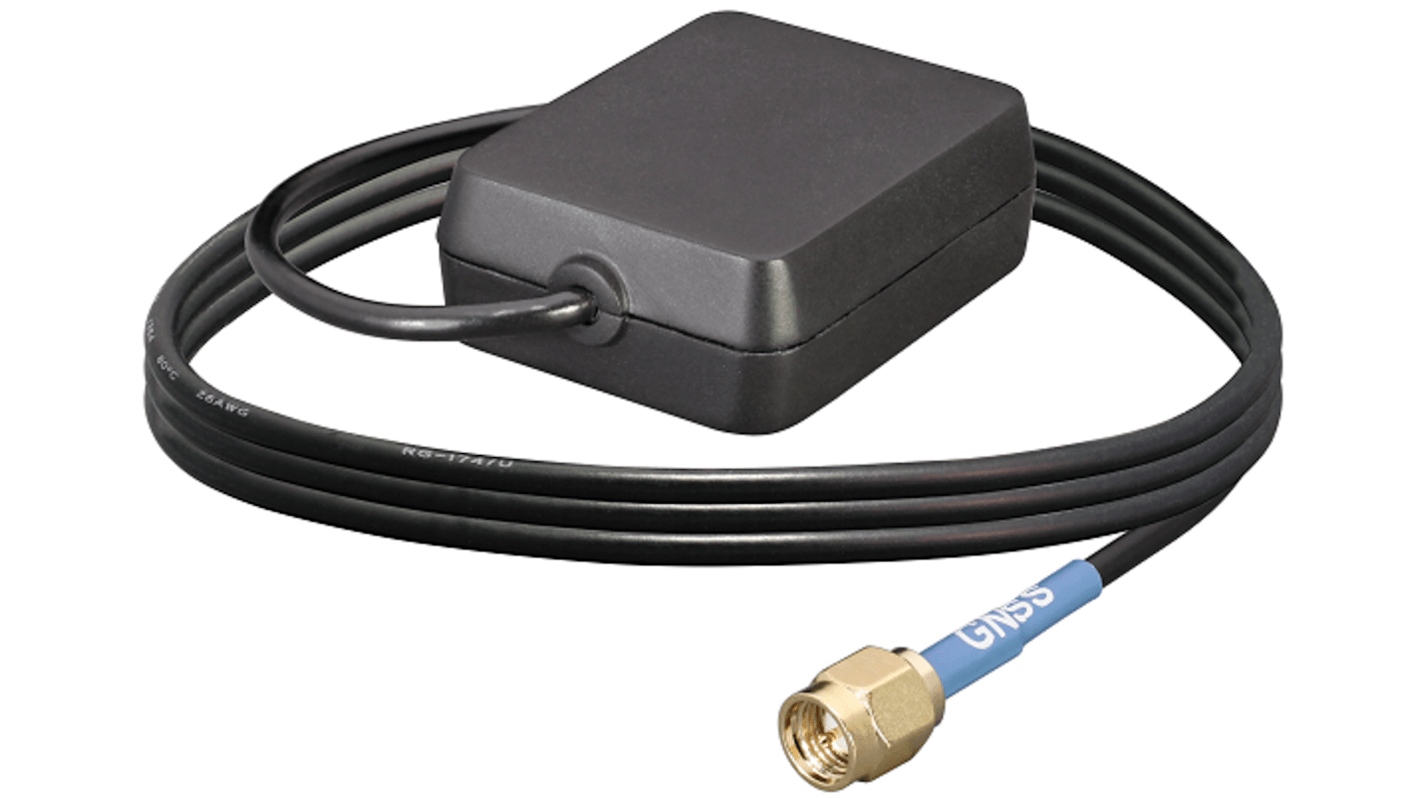

The Linx GNRM-L1A is a magnetic-mount global navigation satellite system (GNSS) antenna with integrated low noise amplifier (LNA), supporting GPS, Galileo, GLONASS, Beidou, NavIC and QZSS systems in the L1/E1/B1 bands and the LNA provides high gain with a low noise figure also the antenna terminates in an SMA plug (male pin) connector on 1 meter, 3 meter or 5 meter lengths of RG-174 coaxial cable.
Active GNSS type
Protocol GNSS
Module mechanical style
Electrical type radiating patch
Center Frequency 1561 MHz, 1575 MHz, 1602 MHz
Frequency range 1559 MHz ∼ 1606 MHz
Impedance 50 Ohms
VSWR 1.3, 1.5, 1.2
Minimum operating temperature -40 °C
Maximum operating temperature +85 °C
Number of bands 3
SMA termination, Gain 32.8, 33.5, 33.4 dBi
Return loss -17.6, -13.9, -20.8 dB
3 m cable length
RG-174/U cable type
SMA Plug connector type
Ingress protection IP67
Length 45 mm
Height 15 mm
Width 35 mm
RHCP polarization
1/2 wavelength
71.4 g weight
Applications GPS, Galileo, GLONASS, QZSS, Beidou, Navigation
Associated products ANT-GNRM-L12A-1, ANT-GNRM-L15A-1, ANT-GNRM-L125A-1, ANT-GPS-SH2
Keywords GPS, Galileo, GLONASS, COMPASS, Beidou, QZSS, NavIC, IRNSS, B1I, B1C, E1, L1C, L1C/A, L1, L3, B2B, E5b, L2, L2C, B2A GNSS, Navigation, Global Navigation Satellite System
Protocol GNSS
Module mechanical style
Electrical type radiating patch
Center Frequency 1561 MHz, 1575 MHz, 1602 MHz
Frequency range 1559 MHz ∼ 1606 MHz
Impedance 50 Ohms
VSWR 1.3, 1.5, 1.2
Minimum operating temperature -40 °C
Maximum operating temperature +85 °C
Number of bands 3
SMA termination, Gain 32.8, 33.5, 33.4 dBi
Return loss -17.6, -13.9, -20.8 dB
3 m cable length
RG-174/U cable type
SMA Plug connector type
Ingress protection IP67
Length 45 mm
Height 15 mm
Width 35 mm
RHCP polarization
1/2 wavelength
71.4 g weight
Applications GPS, Galileo, GLONASS, QZSS, Beidou, Navigation
Associated products ANT-GNRM-L12A-1, ANT-GNRM-L15A-1, ANT-GNRM-L125A-1, ANT-GPS-SH2
Keywords GPS, Galileo, GLONASS, COMPASS, Beidou, QZSS, NavIC, IRNSS, B1I, B1C, E1, L1C, L1C/A, L1, L3, B2B, E5b, L2, L2C, B2A GNSS, Navigation, Global Navigation Satellite System
Specifications
Attribute | Value |
---|---|
Internal/External | External |
Connector Type | SMA Male |
Antenna Physical Form | Square |
Lead Length | 45mm |
Antenna Mounting Type | Magnetic |
Includes Lead | Yes |
Connector Gender | Male |
RF Protocols | GPS |
Gain | 32.8 dBi, 33.4 dBi, 33.5 dBi |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +85°C |
Width | 35mm |
Height | 15mm |
Series | GNRM |
Length | 45mm |
