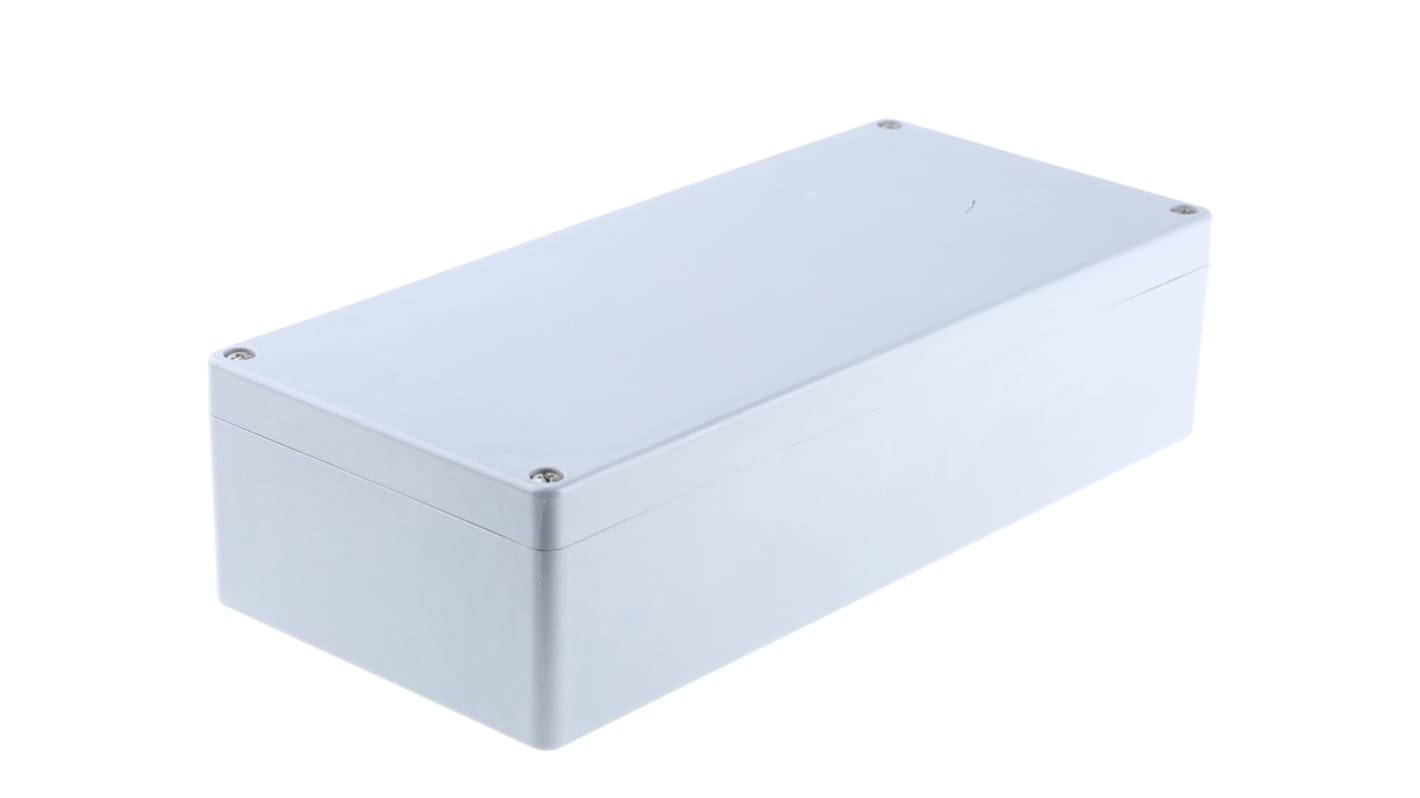

Fibox Euronord II Series Grey Polyester Enclosure, IP54, IP66, Grey Lid, 360 x 160 x 90mm

View all General Purpose Enclosures

Subtotal (1 unit)*

£225.79

(exc. VAT)

£270.95

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 12 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£225.79

*price indicative

RS Stock No.:
507-5548
Mfr. Part No.:
P 163609 ENCLOSURE
Brand:
Fibox
Find similar products by selecting one or more attributes.
Select all

Brand

Fibox

Body Material

Polyester

External Length

360 mm

External Height

90 mm

External Width

160 mm

External Dimensions

360 x 160 x 90mm

IP Rating

IP54, IP66

Colour

Grey

Lid Colour

Grey

Shielded

No

Series

Euronord II

COO (Country of Origin):
FI

FIBOX Euronord II Polyester Enclosure


Euronord range of enclosures from Fibox are designed to house DIN Rail-mounted terminal blocks and various types of sensors. The outer surface is free of ’gate marks’ creating a smooth area for labels, decals or screen printing. Cover screws fully tighten in 4 revolutions, are held captive, but are still removable.

Features and Benefits


• Temperature range -40°C to +80°C (continuous), -50 to +120°C (short term)
• Designed to house DIN Rail-mounted terminal blocks and various types of sensors
• IP 66/67
• Base colour RAL 7001

(IP) Ingress Protection and what it means?


IP rating classifies the degrees of protection provided against the intrusion of solid objects (including body parts like hands and fingers), dust, accidental contact, and water in electrical enclosures.

FAQ’s


Can the box be used outside?
• Yes, Euronord series enclosures have IP66 / IP67 rating

Can you purchase mounting plates separately?
• No, Euronord mounting plates are not available separately

What is supplied?
• Enclosure, cover with EPDM gasket and stainless steel cover screws

Standards

UL 508, NEMA Type 1, 4, 4X, 12 and 13.
