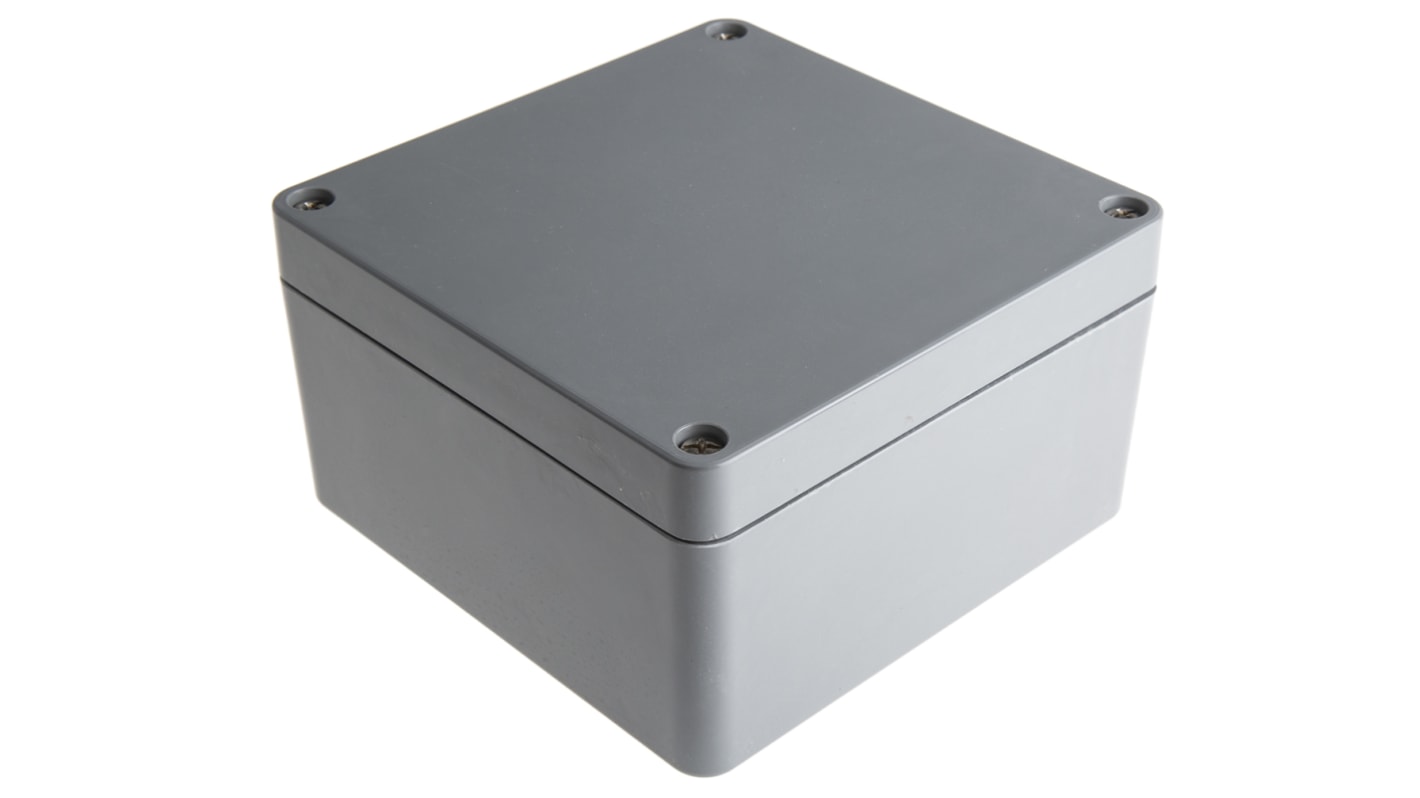

Fibox Euronord II Series Grey Grey Lid Polyester Enclosure, IP66, IP67, IK08 91 mm, 160.5 mm, 160 mm

RS Stock No.:: 507-5481
Distrelec Article No.:: 300-38-787
Mfr. Part No.:: P 161609 ENCLOSURE
Brand:: Fibox

Fibox Euronord II Series Grey Grey Lid Polyester Enclosure, IP66, IP67, IK08 91 mm, 160.5 mm, 160 mm

Subtotal (1 unit)*

£103.53

(exc. VAT)

£124.24

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

64 unit(s) ready to ship
Plus 22 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£103.53

*price indicative

RS Stock No.:: 507-5481
Distrelec Article No.:: 300-38-787
Mfr. Part No.:: P 161609 ENCLOSURE
Brand:: Fibox

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Fibox
	Product Type	Enclosure
	Body Material	Polyester
	External Height	91mm
	External Width	160mm
	External Length	160.5mm
	IP Rating	IP66, IP67
	Lid Colour	Grey
	Colour	Grey
	Hazardous Area Certification	No
	Shielding	Unshielded
	Series	Euronord II
	Standards/Approvals	No
	IK Rating	IK08
	Gasket Material	Ethylene Propylene Diene Monomer

	Select all
	Brand Fibox
	Product Type Enclosure
	Body Material Polyester
	External Height 91mm
	External Width 160mm
	External Length 160.5mm
	IP Rating IP66, IP67
	Lid Colour Grey
	Colour Grey
	Hazardous Area Certification No
	Shielding Unshielded
	Series Euronord II
	Standards/Approvals No
	IK Rating IK08
	Gasket Material Ethylene Propylene Diene Monomer

Data Sheet

FIBOX Euronord II Polyester Enclosure

Euronord range of enclosures from Fibox are designed to house DIN Rail-mounted terminal blocks and various types of sensors. The outer surface is free of ’gate marks’ creating a smooth area for labels, decals or screen printing. Cover screws fully tighten in 4 revolutions, are held captive, but are still removable.

Features and Benefits

• Temperature range -40°C to +80°C (continuous), -50 to +120°C (short term)

• Designed to house DIN Rail-mounted terminal blocks and various types of sensors

• IP 66/67

• Base colour RAL 7001

(IP) Ingress Protection and what it means?

IP rating classifies the degrees of protection provided against the intrusion of solid objects (including body parts like hands and fingers), dust, accidental contact, and water in electrical enclosures.

FAQ’s

Can the box be used outside?

• Yes, Euronord series enclosures have IP66 / IP67 rating

Can you purchase mounting plates separately?

• No, Euronord mounting plates are not available separately

What is supplied?

• Enclosure, cover with EPDM gasket and stainless steel cover screws

Standards

UL 508, NEMA Type 1, 4, 4X, 12 and 13.
