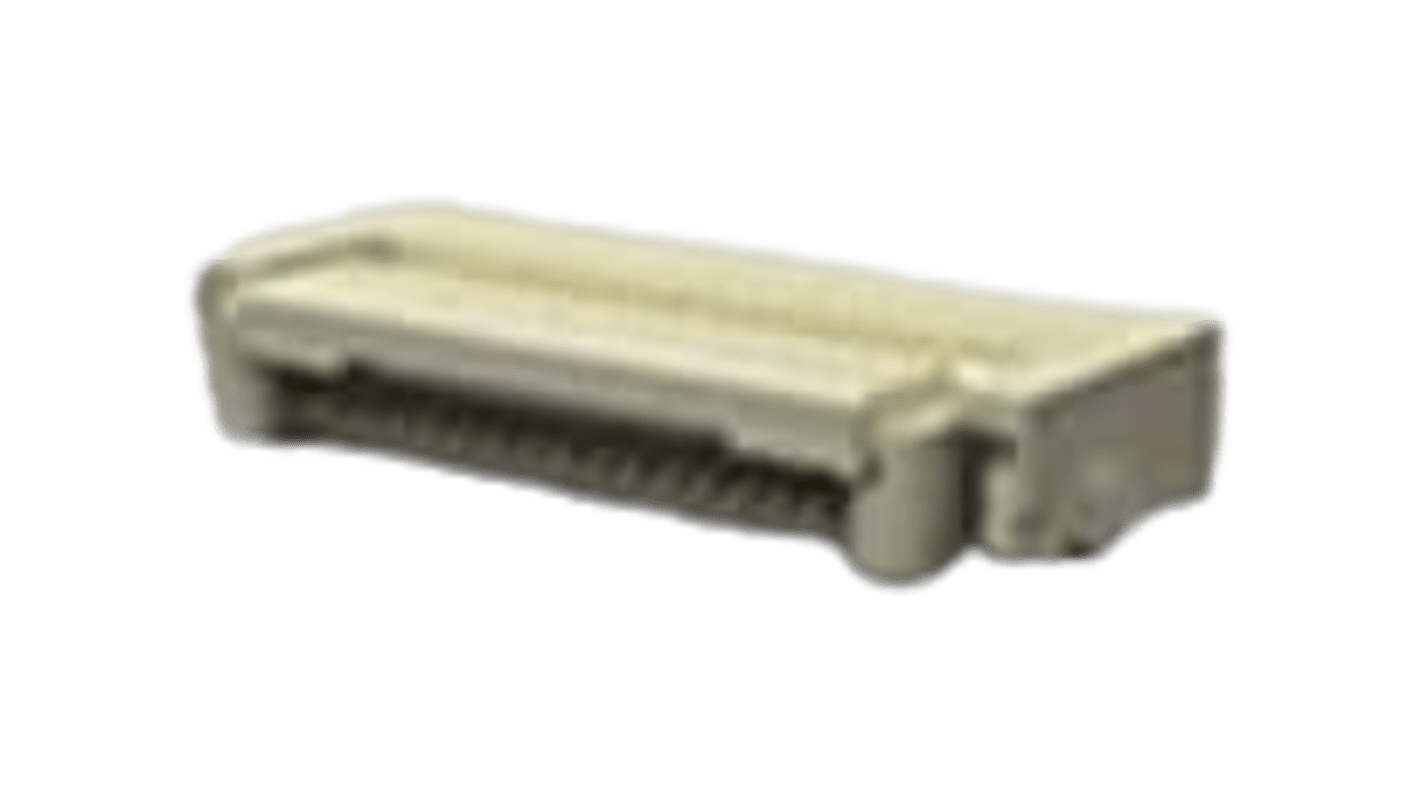

TE Connectivity, FPC 0.5 mm Pitch 36 Way Right Angle Male FPC Connector, Surface Mount
- RS Stock No.:
- 507-153
- Distrelec Article No.:
- 304-55-651
- Mfr. Part No.:
- 3-1775333-6
- Brand:
- TE Connectivity
Subtotal (1 box of 200 units)*
£159.67
(exc. VAT)
£191.60
(inc. VAT)
Add 1 box to get free delivery
Temporarily out of stock
- Shipping from 26 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £159.67 | £0.798 |
*price indicative
- RS Stock No.:
- 507-153
- Distrelec Article No.:
- 304-55-651
- Mfr. Part No.:
- 3-1775333-6
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Number of Contacts | 36 | |
| Product Type | FPC Connector | |
| Contact Material | Phosphor Bronze | |
| Sub Type | FPC Connector | |
| Pitch | 0.5mm | |
| Current | 0.5A | |
| Mount Type | Board | |
| Connector Gender | Male | |
| Contact Position | Bottom | |
| Termination Type | Surface Mount | |
| Orientation | Right Angle | |
| Locking Mechanism | Yes | |
| Voltage | 250 V | |
| Series | FPC | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 260°C | |
| Standards/Approvals | 2016, China RoHS 2 MIIT Order No 32, EU ELV 2000/53/EC, EU REACH (EC) No. 1907/2006, EU RoHS 2011/65/EU | |
| Number of Rows | 1 | |
| Contact Plating | Gold | |
| Housing Material | Liquid Crystal Polymer | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Number of Contacts 36 | ||
Product Type FPC Connector | ||
Contact Material Phosphor Bronze | ||
Sub Type FPC Connector | ||
Pitch 0.5mm | ||
Current 0.5A | ||
Mount Type Board | ||
Connector Gender Male | ||
Contact Position Bottom | ||
Termination Type Surface Mount | ||
Orientation Right Angle | ||
Locking Mechanism Yes | ||
Voltage 250 V | ||
Series FPC | ||
Contact Gender Male | ||
Maximum Operating Temperature 260°C | ||
Standards/Approvals 2016, China RoHS 2 MIIT Order No 32, EU ELV 2000/53/EC, EU REACH (EC) No. 1907/2006, EU RoHS 2011/65/EU | ||
Number of Rows 1 | ||
Contact Plating Gold | ||
Housing Material Liquid Crystal Polymer | ||
- COO (Country of Origin):
- CN
The TE Connectivity ZIF FPC 0.5, 2H, 36P connector is meticulously engineered for streamlined connections in flexible printed circuits. This innovative device offers a robust design, seamlessly integrating into your PCB setups while ensuring optimal performance. Crafted with superior materials, it excels in a variety of applications, from signal circuits to precise electronic devices. Its right-angle orientation provides a space-saving solution, ideal for compact designs while maintaining accessibility. The advanced flip-lock actuator mechanism enhances user convenience, allowing for quick and secure mating. This is the go-to connector for those seeking reliability and efficiency without compromising on quality.
Designed for versatile applications in electronic devices
Ensures reliable connectivity with minimal insertion loss
Facilitates easy integration into existing circuit designs
Optimized for surface mount technology, enhancing assembly efficiency
Constructed with low halogen materials for environmental compliance
