Molex, 51296-6094 0.5 mm Pitch 60 Way Right Angle FPC Connector, Bottom
- RS Stock No.:
- 505-927
- Mfr. Part No.:
- 51296-6094
- Brand:
- Molex

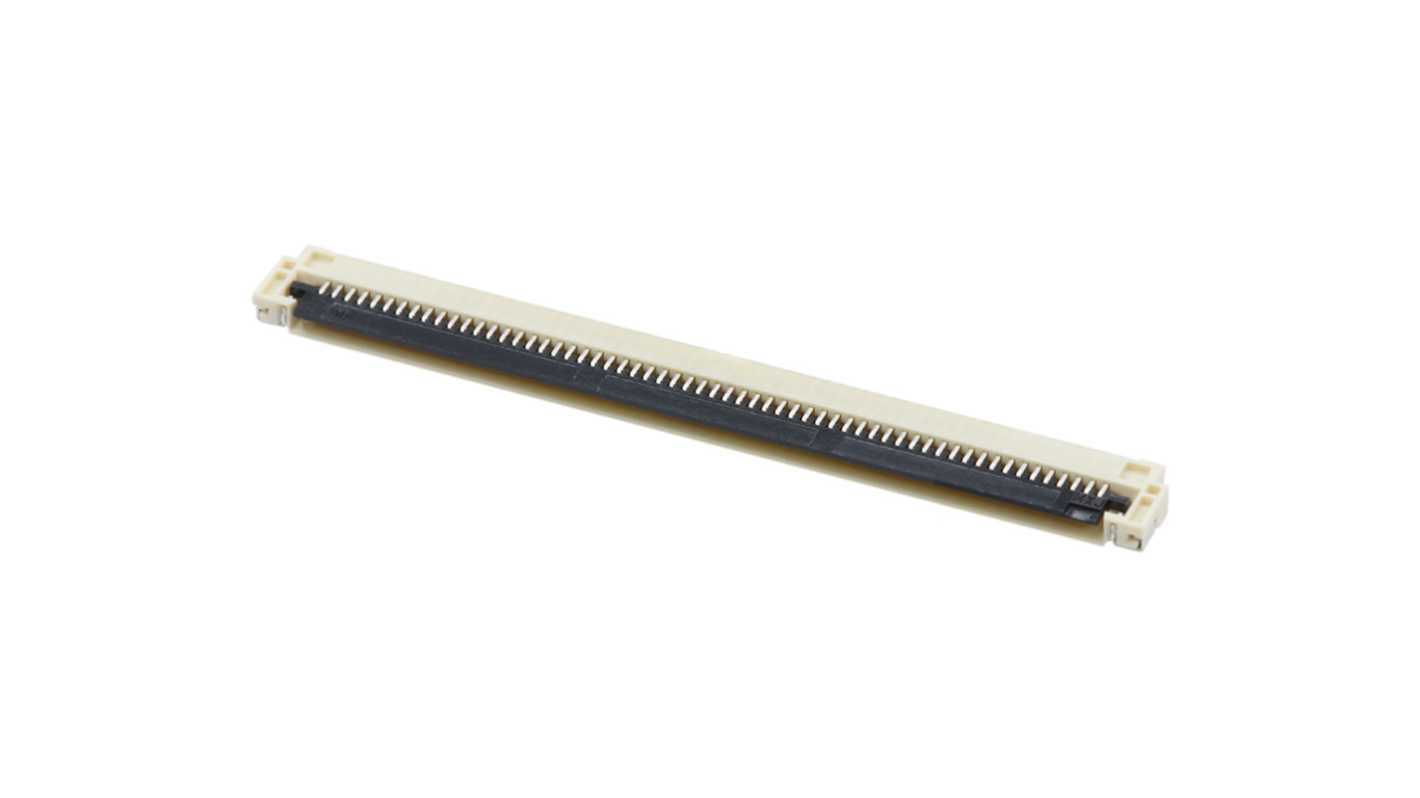

Image representative of range
Subtotal (1 reel of 3000 units)*
£4,363.45
(exc. VAT)
£5,236.14
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 23 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £4,363.45 | £1.454 |
*price indicative
- RS Stock No.:
- 505-927
- Mfr. Part No.:
- 51296-6094
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Number of Contacts | 60 | |
| Product Type | FPC Connector | |
| Contact Material | Phosphor Bronze | |
| Sub Type | Easy-On FFC/FPC Connector | |
| Pitch | 0.5mm | |
| Current | 0.5A | |
| Mount Type | Surface Mount | |
| Termination Type | Bottom | |
| Contact Position | Bottom | |
| Orientation | Right Angle | |
| Insertion Force | ZIF | |
| Locking Mechanism | Yes | |
| Voltage | 5V | |
| Minimum Operating Temperature | -40°C | |
| Series | 51296-6094 | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | EU RoHS, IEC 61249-2-21, IEC-62474 chemSHERPA, IPC 1752A Class C, IPC 1752A Class D, Low-Halogen, REACH SVHC | |
| Number of Rows | 1 | |
| Contact Plating | Gold | |
| Housing Material | Liquid Crystal Polymer | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Number of Contacts 60 | ||
Product Type FPC Connector | ||
Contact Material Phosphor Bronze | ||
Sub Type Easy-On FFC/FPC Connector | ||
Pitch 0.5mm | ||
Current 0.5A | ||
Mount Type Surface Mount | ||
Termination Type Bottom | ||
Contact Position Bottom | ||
Orientation Right Angle | ||
Insertion Force ZIF | ||
Locking Mechanism Yes | ||
Voltage 5V | ||
Minimum Operating Temperature -40°C | ||
Series 51296-6094 | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals EU RoHS, IEC 61249-2-21, IEC-62474 chemSHERPA, IPC 1752A Class C, IPC 1752A Class D, Low-Halogen, REACH SVHC | ||
Number of Rows 1 | ||
Contact Plating Gold | ||
Housing Material Liquid Crystal Polymer | ||
- COO (Country of Origin):
- JP
The TE Connectivity 0.50mm Pitch FFC/FPC Connector is a versatile and efficient solution for your electronic connectivity needs. Engineered with precision, this right-angle connector stands at a Compact height of 1.30mm, ensuring optimal space utilisation on your PCB. Its ZIF design features 60 circuits, providing a robust and reliable connection for fine-pitch applications. Constructed from high-quality materials, including gold-plated contacts, it meets stringent industry standards while maintaining excellent durability. With its surface mount technology and compatibility with various FFC/FPC wire types, this connector offers enhanced operational efficiency and ease of use in modern electronic devices.
Supports a maximum current of 0.5A for dependable performance
Designed for effective operation within a wide temperature range
Features an actuator type that simplifies mating processes
Offers a lightweight design, reducing overall product weight
Constructed for surface mount applications, facilitating easier assembly
Includes PCB retention features, ensuring stable connections
Polarised design to prevent incorrect mating of connectors
Durable construction that withstands up to 20 mating cycles
