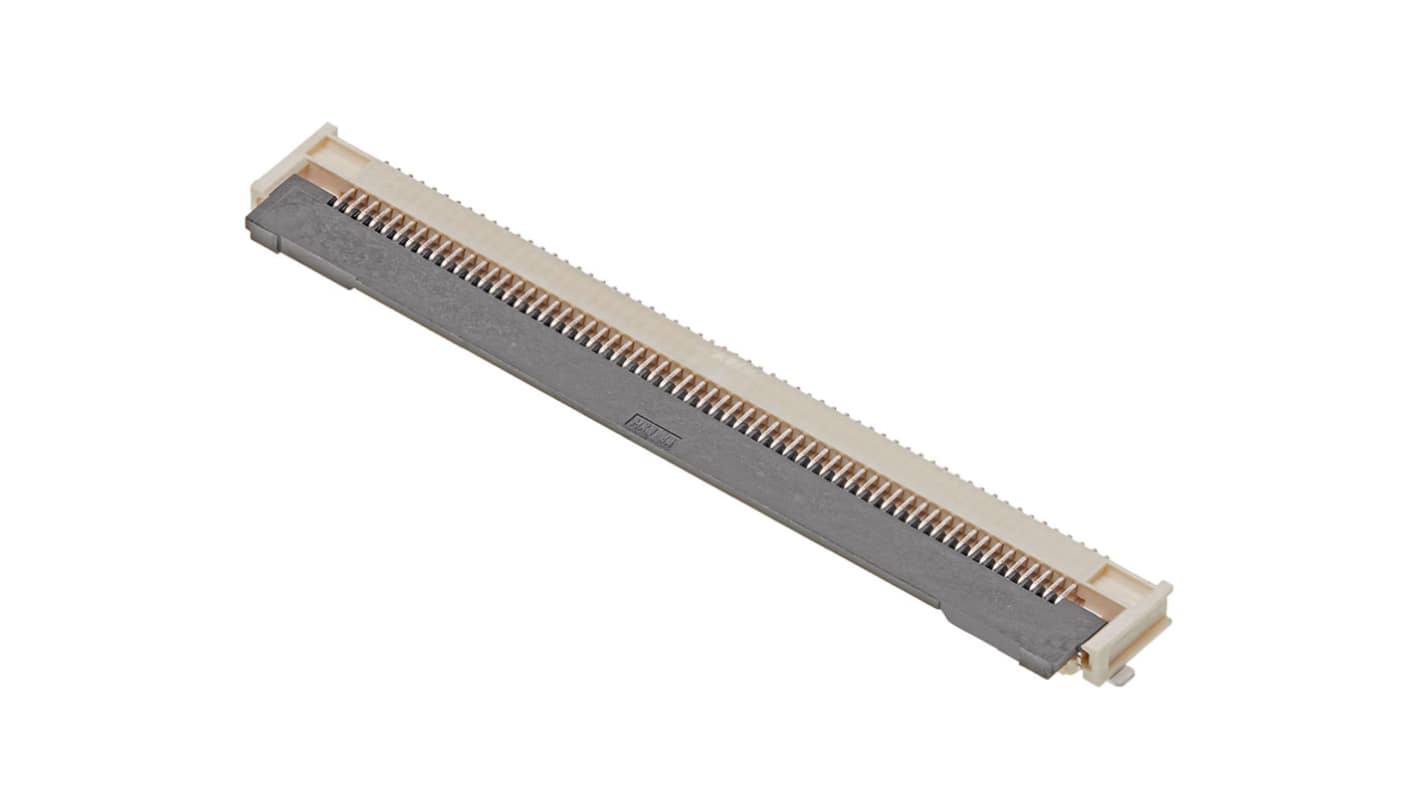

Molex, 505110-6091 0.5 mm Pitch 60 Way Right Angle FPC Connector, Bottom
- RS Stock No.:
- 506-041
- Mfr. Part No.:
- 505110-6091
- Brand:
- Molex
Subtotal (1 reel of 3000 units)*
£3,037.30
(exc. VAT)
£3,644.76
(inc. VAT)
Add 1 reel to get free delivery
Temporarily out of stock
- Shipping from 30 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £3,037.30 | £1.012 |
*price indicative
- RS Stock No.:
- 506-041
- Mfr. Part No.:
- 505110-6091
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Number of Contacts | 60 | |
| Product Type | FPC Connector | |
| Contact Material | Phosphor Bronze | |
| Current | 0.5A | |
| Pitch | 0.5mm | |
| Mount Type | Surface Mount | |
| Contact Position | Bottom | |
| Termination Type | Bottom | |
| Orientation | Right Angle | |
| Locking Mechanism | Yes | |
| Voltage | 5 V | |
| Series | 505110-6091 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | IPC 1752A Class D, IPC 1752A Class C, IEC 61249-2-21, IEC-62474, EU 2015/863, EU RoHS | |
| Contact Plating | Gold over Nickel | |
| Housing Material | Liquid Crystal Polymer | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Number of Contacts 60 | ||
Product Type FPC Connector | ||
Contact Material Phosphor Bronze | ||
Current 0.5A | ||
Pitch 0.5mm | ||
Mount Type Surface Mount | ||
Contact Position Bottom | ||
Termination Type Bottom | ||
Orientation Right Angle | ||
Locking Mechanism Yes | ||
Voltage 5 V | ||
Series 505110-6091 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals IPC 1752A Class D, IPC 1752A Class C, IEC 61249-2-21, IEC-62474, EU 2015/863, EU RoHS | ||
Contact Plating Gold over Nickel | ||
Housing Material Liquid Crystal Polymer | ||
- COO (Country of Origin):
- JP
The TE Connectivity FFC/FPC connector delivers reliability and exceptional performance in compact designs. Featuring a 0.50mm pitch and a right-angle orientation, it efficiently connects multiple circuits while ensuring a robust mating interface. The 60 circuits and gold over nickel plating enhance conductivity, making it an ideal choice for various applications that require durability and efficiency. Designed with a black actuator and a height of 1.90mm, this connector seamlessly integrates into tight spaces, fulfilling the needs of modern electronics. Its front flip actuator type promotes easy handling, while the surface mount design guarantees secure PCB retention and ease of installation in high-density applications. This product stands as an exemplary solution within the FD19 series, combining advanced engineering with practical design.
Robust construction ensures long-lasting performance
Designed for temperature ranges of -40° to +105°C
Surface mount design simplifies PCB integration
Black actuator enhances visual aesthetics and usability
Durability tested for 20 mating cycles for consistent performance
Features a compact height, ideal for space-constrained applications
Meets various industry compliance standards for peace of mind
