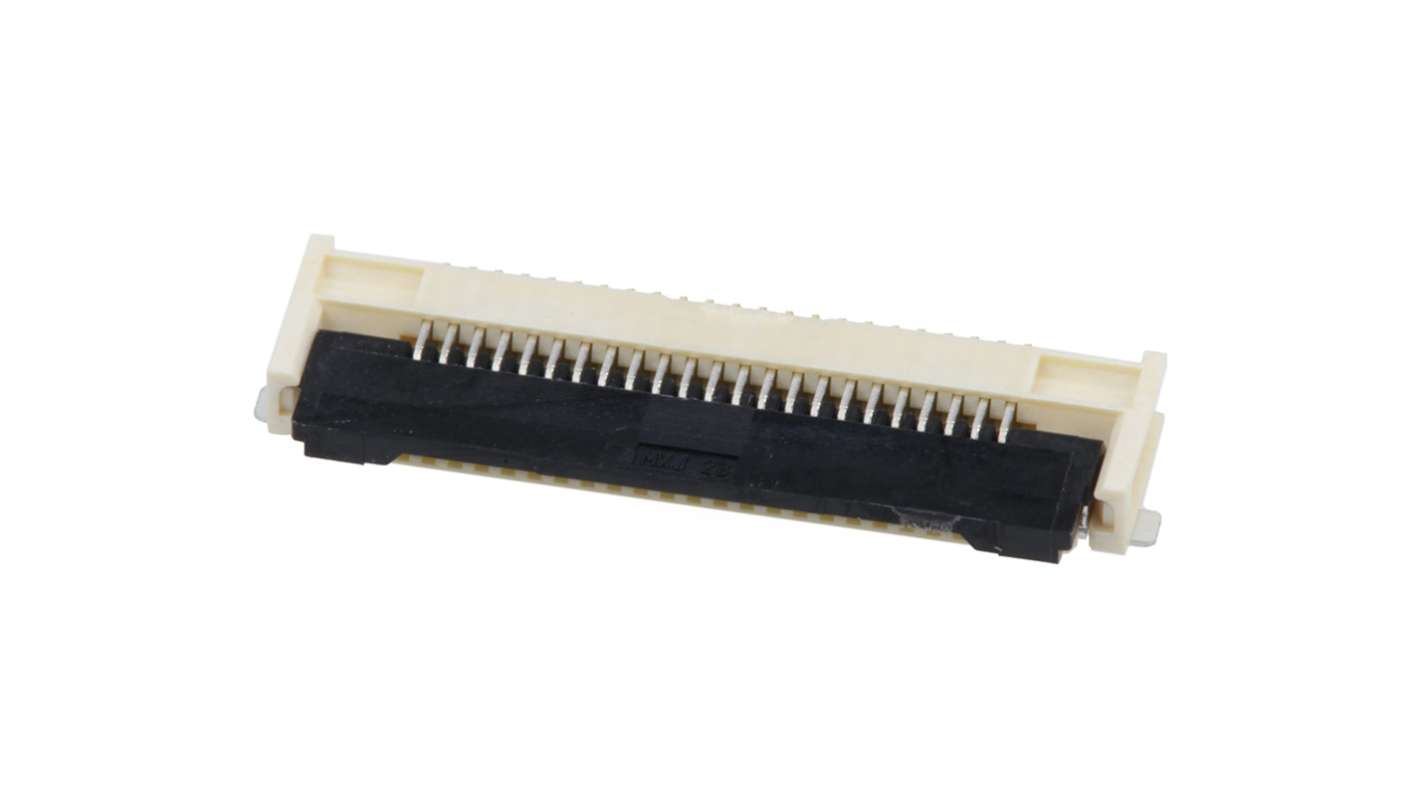

Molex, 505110-2391 0.5 mm Pitch 23 Way Right Angle FPC Connector, Bottom
- RS Stock No.:
- 478-688
- Distrelec Article No.:
- 304-62-430
- Mfr. Part No.:
- 505110-2391
- Brand:
- Molex
Subtotal (1 reel of 3000 units)*
£2,436.40
(exc. VAT)
£2,923.68
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 30 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £2,436.40 | £0.812 |
*price indicative
- RS Stock No.:
- 478-688
- Distrelec Article No.:
- 304-62-430
- Mfr. Part No.:
- 505110-2391
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Product Type | FPC Connector | |
| Number of Contacts | 23 | |
| Contact Material | Phosphor Bronze | |
| Current | 0.5A | |
| Pitch | 0.5mm | |
| Mount Type | Surface Mount | |
| Contact Position | Bottom | |
| Termination Type | Bottom | |
| Orientation | Right Angle | |
| Voltage | 5 V | |
| Minimum Operating Temperature | -40°C | |
| Series | 505110-2391 | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | IPC 1752A Class D, EU ELV, EU RoHS, IEC 61249-2-21, IPC 1752A Class C | |
| Contact Plating | Gold over Nickel | |
| Housing Material | Liquid Crystal Polymer | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Product Type FPC Connector | ||
Number of Contacts 23 | ||
Contact Material Phosphor Bronze | ||
Current 0.5A | ||
Pitch 0.5mm | ||
Mount Type Surface Mount | ||
Contact Position Bottom | ||
Termination Type Bottom | ||
Orientation Right Angle | ||
Voltage 5 V | ||
Minimum Operating Temperature -40°C | ||
Series 505110-2391 | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals IPC 1752A Class D, EU ELV, EU RoHS, IEC 61249-2-21, IPC 1752A Class C | ||
Contact Plating Gold over Nickel | ||
Housing Material Liquid Crystal Polymer | ||
- COO (Country of Origin):
- JP
The TE Connectivity FFC/FPC connector provides a reliable and efficient connection solution for various applications, particularly where space and performance are critical. Designed with a 0.50mm pitch within the FD19 series, this connector features a right-angle entry to facilitate easy integration into compact devices. The robust construction ensures durability with a mating cycle lifespan of up to 20 cycles, making it ideal for frequent connections. The connector’s gold over nickel plating guarantees excellent conductivity and corrosion resistance, while the low-halogen status aligns with modern environmental standards, ensuring compliance without compromising on quality.
Compact design optimises space in electronic assemblies
Front flip actuator allows for straightforward component management
Liquid crystal polymer construction enhances thermal stability and resilience
Embossed tape on reel packaging aids in efficient handling and installation
Right-angle orientation simplifies PCB layout and connection pathways
Suitable for a range of applications from consumer electronics to industrial devices
