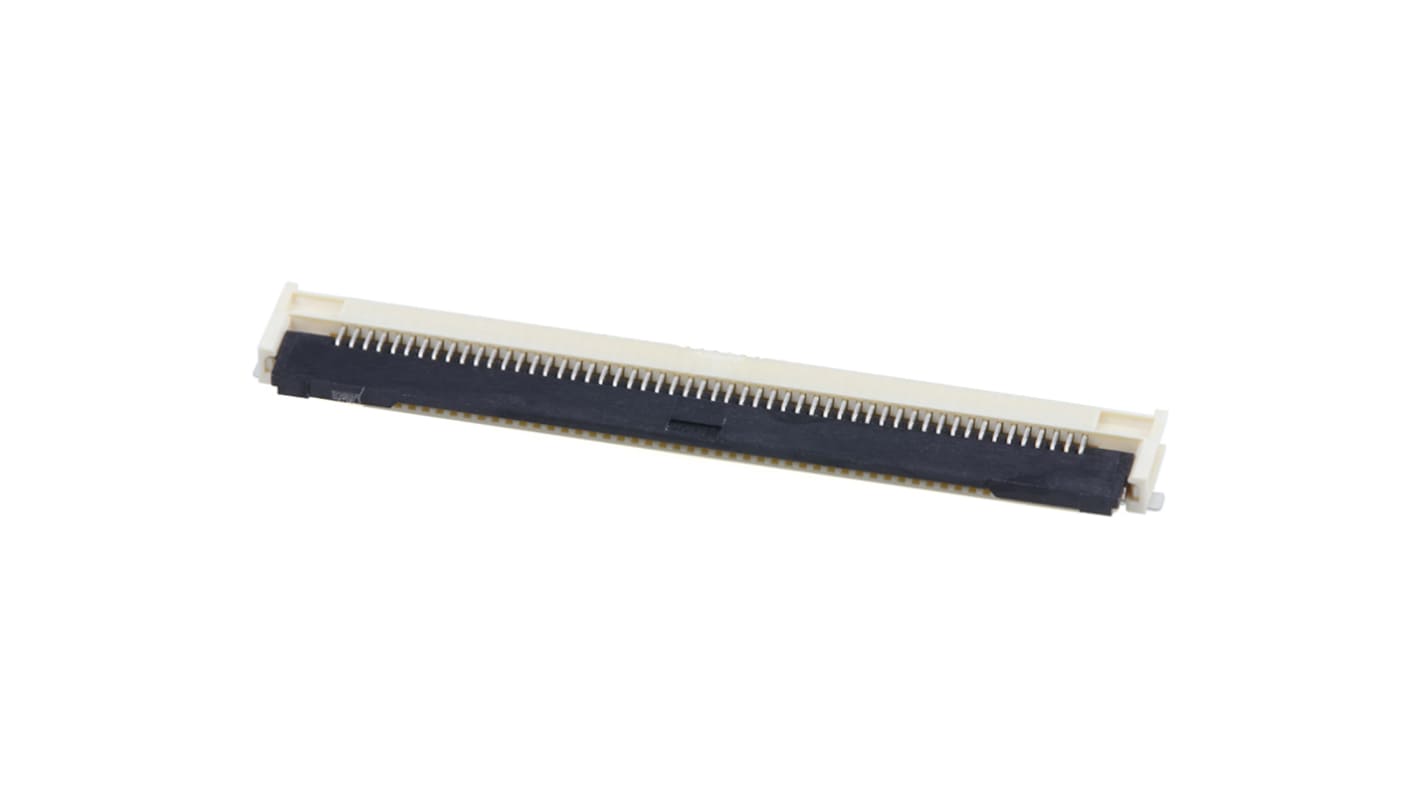

Molex, 505110, 505110-5496 0.5mm Pitch 54 Way Right Angle FPC Connector, Bottom
- RS Stock No.:
- 478-284
- Mfr. Part No.:
- 505110-5496
- Brand:
- Molex
Subtotal (1 reel of 3000 units)*
£11,273.53
(exc. VAT)
£13,528.24
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 333,333,333 unit(s) shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
---|---|---|
1 + | £11,273.53 | £3.758 |
*price indicative
- RS Stock No.:
- 478-284
- Mfr. Part No.:
- 505110-5496
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Molex | |
Number of Contacts | 54 | |
Contact Material | Phosphor Bronze | |
Pitch | 0.5mm | |
Mounting Type | Surface Mount | |
Termination Type | Bottom | |
Body Orientation | Right Angle | |
Series | 505110 | |
Series Number | 505110-5496 | |
Select all | ||
---|---|---|
Brand Molex | ||
Number of Contacts 54 | ||
Contact Material Phosphor Bronze | ||
Pitch 0.5mm | ||
Mounting Type Surface Mount | ||
Termination Type Bottom | ||
Body Orientation Right Angle | ||
Series 505110 | ||
Series Number 505110-5496 | ||
- COO (Country of Origin):
- JP
The TE Connectivity FFC/FPC connector from the FD19 series delivers unmatched performance, seamlessly designed for modern electronic applications. Built to accommodate demanding environments, it features a right-angle, bottom contact arrangement that ensures optimal space utilisation on your printed circuit boards. The connector offers exceptional durability, able to withstand up to 20 mating cycles, making it an ideal choice for applications that require reliability and longevity. It supports a broad operating temperature range, ensuring consistent performance in both high and low-temperature environments. Additionally, its low-halogen composition makes it a responsible choice for manufacturers committed to sustainability and compliance with environmental regulations.
Durable construction allows for long-term use in various applications
Designed for front flip actuation to enhance ease of use
Beige resin colour provides a discreet, professional appearance
Right-angle orientation optimises PCB layout and connectivity
Suitable for surface mounting, enhancing installation flexibility
Low halogen content aligns with eco-friendly design principles
Meets stringent industry compliance standards for reliability
Embossed tape packaging ensures simple handling and application
Designed for front flip actuation to enhance ease of use
Beige resin colour provides a discreet, professional appearance
Right-angle orientation optimises PCB layout and connectivity
Suitable for surface mounting, enhancing installation flexibility
Low halogen content aligns with eco-friendly design principles
Meets stringent industry compliance standards for reliability
Embossed tape packaging ensures simple handling and application
