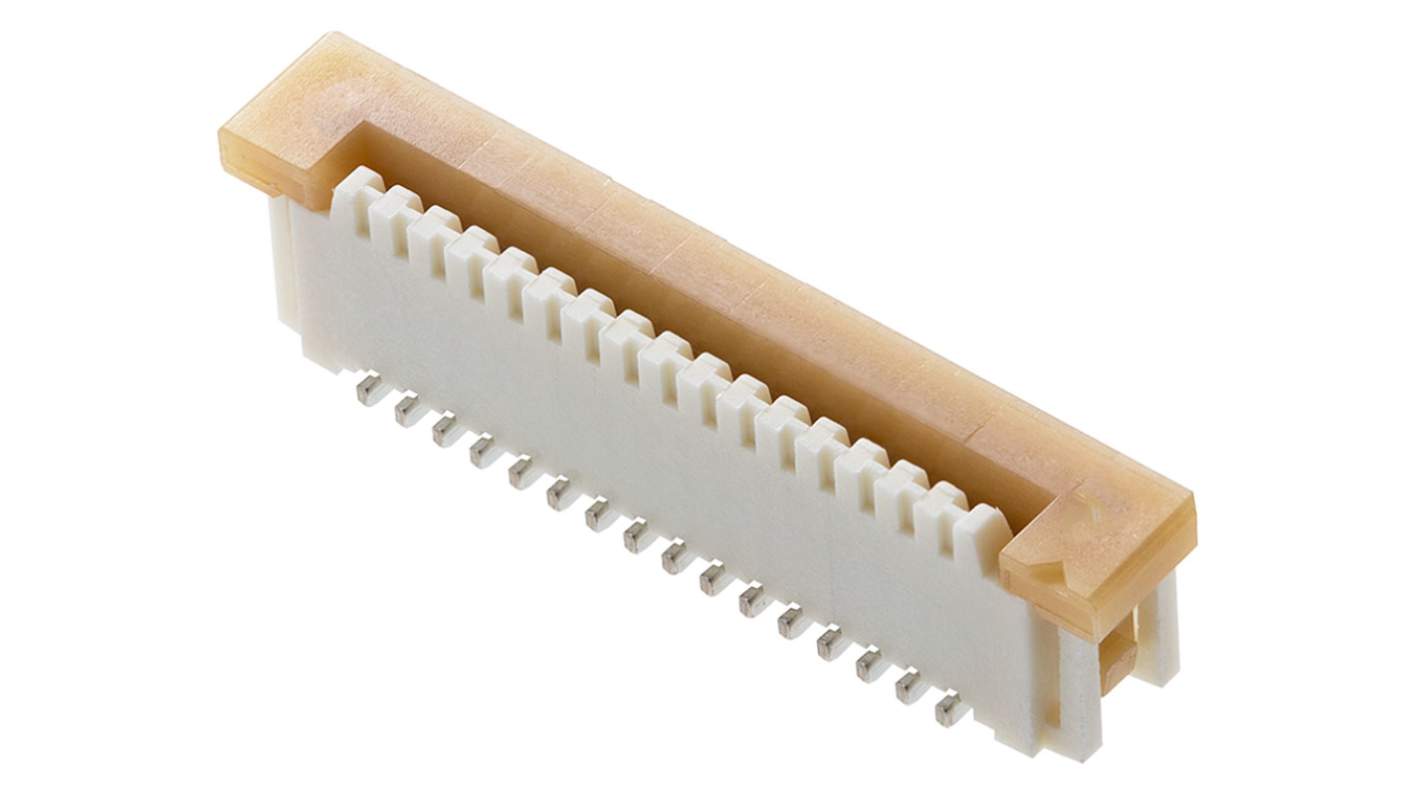

Molex, 52610-1634 0.3 mm Pitch 16 Way Vertical FPC Connector
- RS Stock No.:
- 471-980
- Distrelec Article No.:
- 304-62-580
- Mfr. Part No.:
- 52610-1634
- Brand:
- Molex
Subtotal (1 reel of 1000 units)*
£1,486.63
(exc. VAT)
£1,783.96
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £1,486.63 | £1.487 |
*price indicative
- RS Stock No.:
- 471-980
- Distrelec Article No.:
- 304-62-580
- Mfr. Part No.:
- 52610-1634
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Number of Contacts | 16 | |
| Product Type | FPC Connector | |
| Contact Material | Phosphor Bronze | |
| Sub Type | Slide | |
| Pitch | 0.3mm | |
| Current | 1A | |
| Mount Type | Surface Mount | |
| Orientation | Vertical | |
| Voltage | 125 V | |
| Series | 52610-1634 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | UL E29179, 94V-0, CSA LR19980 | |
| Contact Plating | Tin Silver Bismuth | |
| Housing Material | Nylon | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Number of Contacts 16 | ||
Product Type FPC Connector | ||
Contact Material Phosphor Bronze | ||
Sub Type Slide | ||
Pitch 0.3mm | ||
Current 1A | ||
Mount Type Surface Mount | ||
Orientation Vertical | ||
Voltage 125 V | ||
Series 52610-1634 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals UL E29179, 94V-0, CSA LR19980 | ||
Contact Plating Tin Silver Bismuth | ||
Housing Material Nylon | ||
- COO (Country of Origin):
- JP
The TE Connectivity Easy-on FFC/FPC connector is engineered for precision and reliability in compact spaces. This product exemplifies advanced design principles, boasting a slider mechanism that ensures secure mating while promoting ease of use during assembly. Constructed with a durable nylon resin and enhanced with tin-silver-bismuth plating, it offers exceptional resistance to corrosion, contributing to longevity in demanding environments. Ideal for a variety of applications, the connector accommodates both surface mount technology and flexible flat cables, making it a versatile choice for modern electronic designs. With a 1.00mm pitch and a robust height of 5.75mm, this connector provides an optimal footprint without compromising performance. Designed to meet industry standards, it is suitable for projects requiring strict compliance with RoHS and REACH regulations.
Natural resin colour blends seamlessly into various applications
Supports vertical orientation for efficient space utilisation
Complies with stringent electrical standards for enhanced safety
Purpose-built for surface mount applications, simplifying assembly
Operates effectively in extreme temperatures, suitable for diverse environments
Lightweight design aids in reducing overall assembly weight
