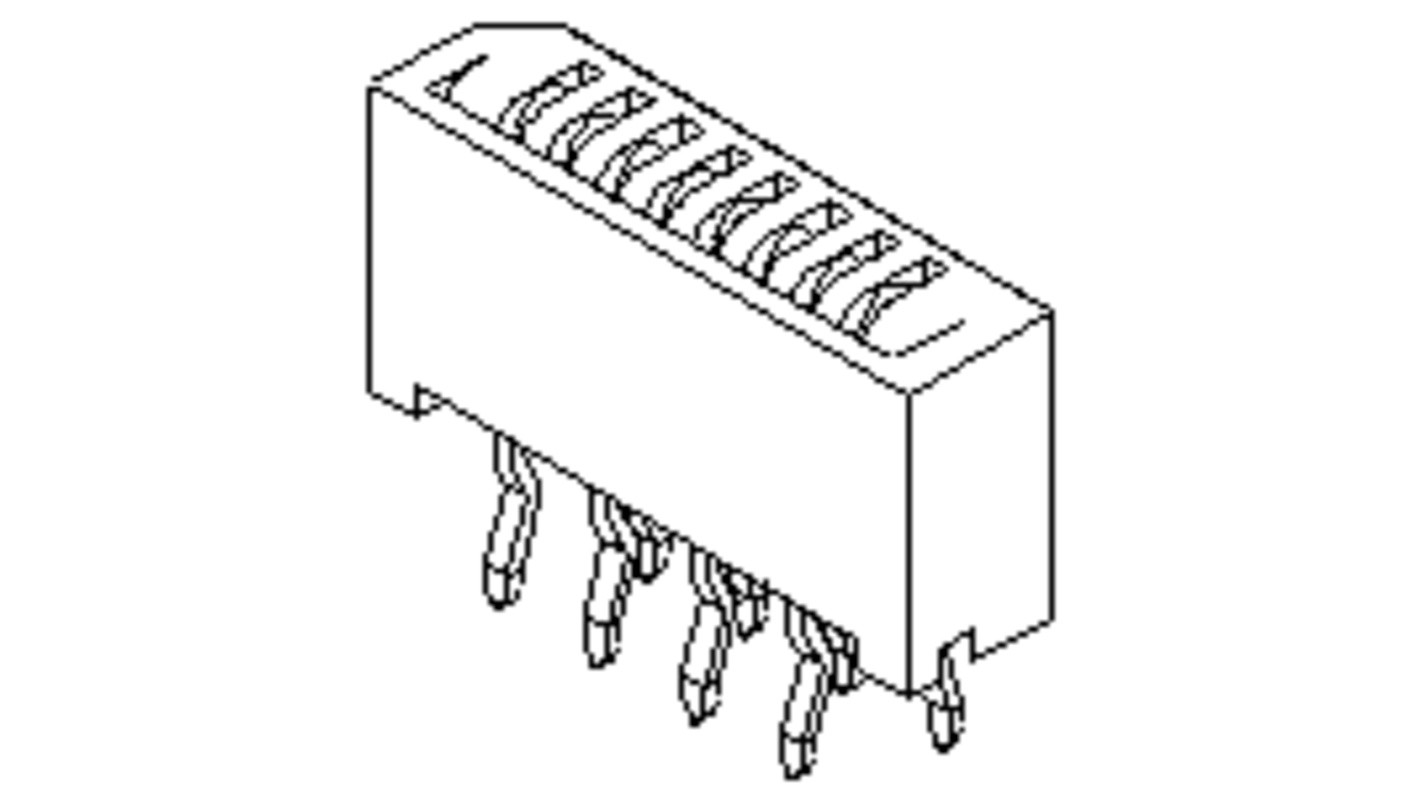

Molex, 52806-2810 1 mm Pitch 28 Way Vertical FPC Connector, Surface Mount
- RS Stock No.:
- 469-914
- Distrelec Article No.:
- 304-62-600
- Mfr. Part No.:
- 52806-2810
- Brand:
- Molex
Subtotal (1 tray of 300 units)*
£144.53
(exc. VAT)
£173.44
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 06 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s) | Per Tray | Per unit* |
|---|---|---|
| 1 + | £144.53 | £0.482 |
*price indicative
- RS Stock No.:
- 469-914
- Distrelec Article No.:
- 304-62-600
- Mfr. Part No.:
- 52806-2810
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Product Type | FPC Connector | |
| Number of Contacts | 28 | |
| Contact Material | Phosphor Bronze | |
| Sub Type | Easy-On | |
| Pitch | 1mm | |
| Current | 0.5A | |
| Mount Type | Surface | |
| Termination Type | Surface Mount | |
| Orientation | Vertical | |
| Insertion Force | Non-ZIF | |
| Voltage | 5 V | |
| Series | 52806-2810 | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | 94V-0, UL E29179 | |
| Contact Plating | Tin | |
| Housing Material | High Temperature Thermoplastic | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Product Type FPC Connector | ||
Number of Contacts 28 | ||
Contact Material Phosphor Bronze | ||
Sub Type Easy-On | ||
Pitch 1mm | ||
Current 0.5A | ||
Mount Type Surface | ||
Termination Type Surface Mount | ||
Orientation Vertical | ||
Insertion Force Non-ZIF | ||
Voltage 5 V | ||
Series 52806-2810 | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals 94V-0, UL E29179 | ||
Contact Plating Tin | ||
Housing Material High Temperature Thermoplastic | ||
- COO (Country of Origin):
- MY
The TE Connectivity 1.00mm Pitch Easy-On FFC/FPC Connector represents an ideal solution for applications requiring reliable connectivity in compact spaces. This vertical, surface mount connector is designed with non-ZIF (Zero Insertion Force) technology, ensuring straightforward insertion and removal of flexible flat cables. With its robust construction, including kinked PC tails and 28 circuits, this connector not only guarantees effective electrical performance but also durability in challenging environments. The product's commitment to compliance with multiple industry standards underscores its suitability for various applications, making it a go-to choice for engineers looking for quality and reliability in connector solutions.
Durable construction supports high mating cycle lifespan
Natural resin colour blends seamlessly with PCBs
Optimised for use in diverse temperature conditions
Easy-to-handle due to the lightweight design
Offers 28 circuit connections to maximise functionality
Backed by comprehensive product compliance documentation
