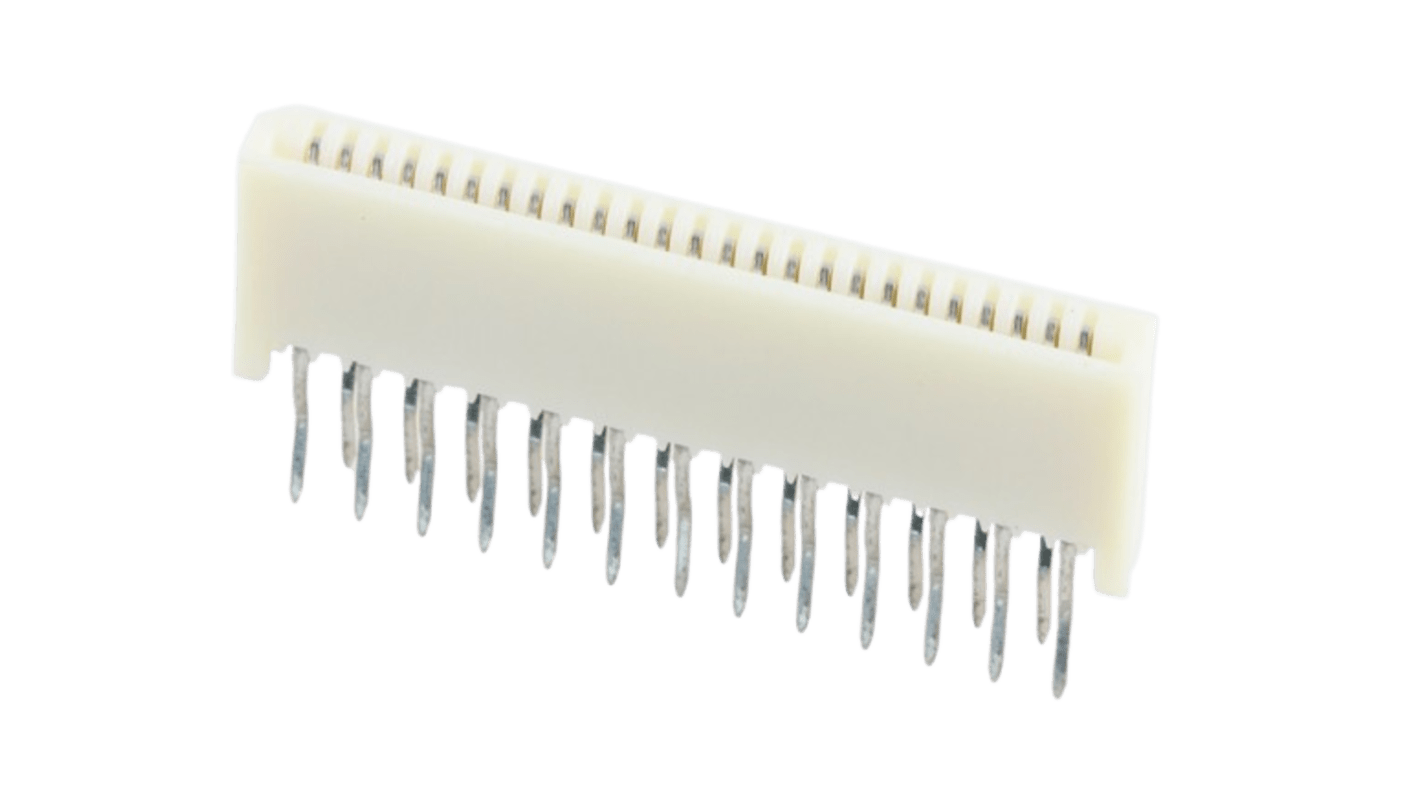

Molex, 52806-2510 1 mm Pitch 25 Way Vertical FPC Connector, Surface Mount
- RS Stock No.:
- 478-308
- Distrelec Article No.:
- 304-62-599
- Mfr. Part No.:
- 52806-2510
- Brand:
- Molex
Subtotal (1 tray of 400 units)*
£176.20
(exc. VAT)
£211.44
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 16 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s) | Per Tray | Per unit* |
|---|---|---|
| 1 + | £176.20 | £0.441 |
*price indicative
- RS Stock No.:
- 478-308
- Distrelec Article No.:
- 304-62-599
- Mfr. Part No.:
- 52806-2510
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Number of Contacts | 25 | |
| Product Type | FPC Connector | |
| Contact Material | Phosphor Bronze | |
| Current | 0.5A | |
| Pitch | 1mm | |
| Mount Type | Surface | |
| Termination Type | Surface Mount | |
| Orientation | Vertical | |
| Insertion Force | Non-ZIF | |
| Voltage | 5 V | |
| Minimum Operating Temperature | -20°C | |
| Series | 52806-2510 | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | UL E29179 | |
| Contact Plating | Tin | |
| Housing Material | High Temperature Thermoplastic | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Number of Contacts 25 | ||
Product Type FPC Connector | ||
Contact Material Phosphor Bronze | ||
Current 0.5A | ||
Pitch 1mm | ||
Mount Type Surface | ||
Termination Type Surface Mount | ||
Orientation Vertical | ||
Insertion Force Non-ZIF | ||
Voltage 5 V | ||
Minimum Operating Temperature -20°C | ||
Series 52806-2510 | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals UL E29179 | ||
Contact Plating Tin | ||
Housing Material High Temperature Thermoplastic | ||
- COO (Country of Origin):
- MY
The TE Connectivity 1.00mm Pitch Easy-On FFC/FPC Connector is engineered for reliable vertical connections in surface mount applications. Designed with compatibility in mind, it features kinked PC tails and supports up to 25 circuits, ensuring seamless integration into various electronic devices. Its robust construction meets rigorous environmental compliance standards, making it suitable for a range of industrial and consumer products. The connector is not recommended for new designs, catering to established projects that require proven performance. With its compact size and efficient design, this connector is ideal for applications requiring high-density interconnect solutions while maintaining optimal functionality.
Flammability rated at 94V-0, ensuring safety in various applications
Durability of 10 mating cycles reduces the risk of connection failure over time
Mated height of just 5.40mm enables compact design options
Natural resin colour blends easily with various circuit board designs
Compatible with through-hole mounting, enhancing mechanical stability
