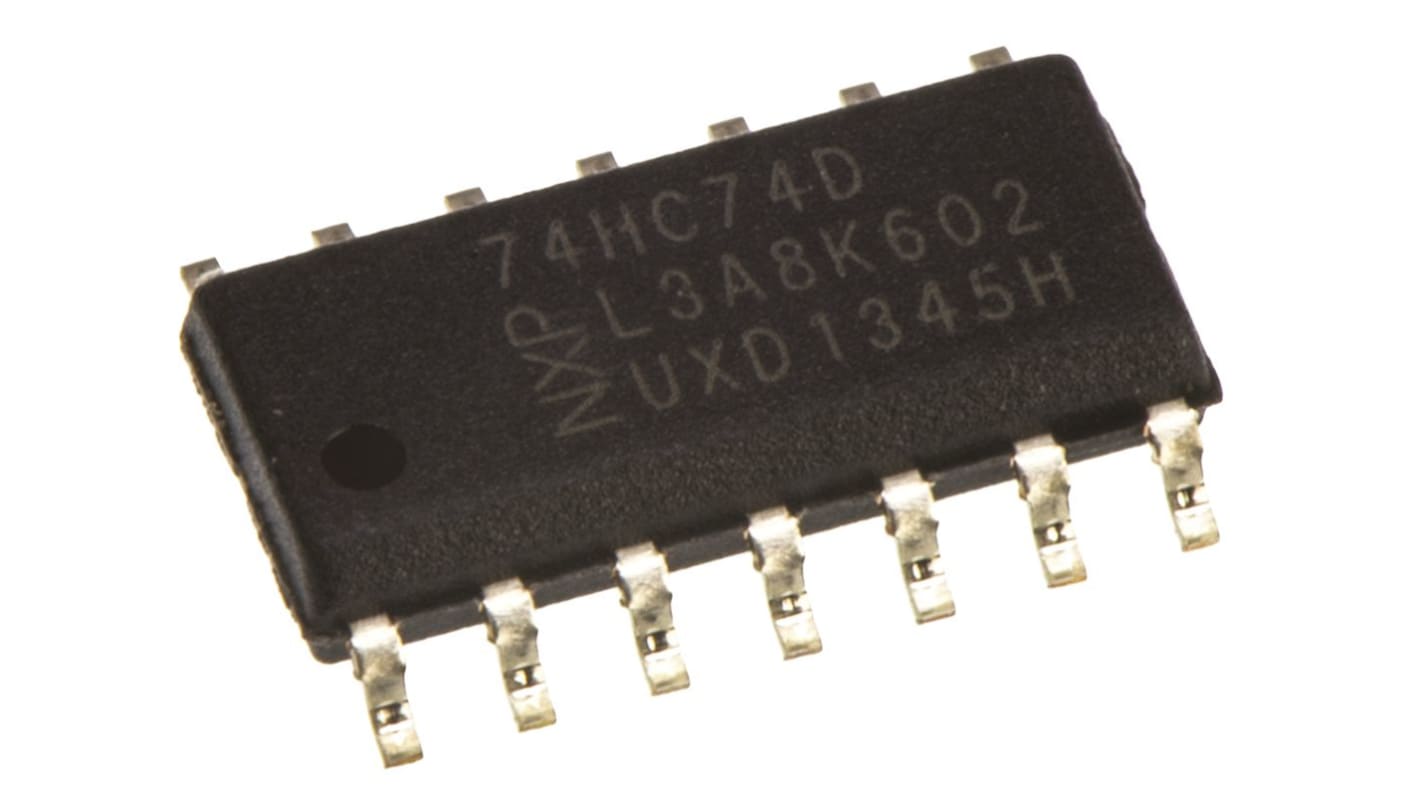

Nexperia 74HC74D,652 2 Flip Flop IC HC, Dual D Type, 14-Pin SOIC
- RS Stock No.:
- 103-8168
- Mfr. Part No.:
- 74HC74D,652
- Brand:
- Nexperia
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (On a Reel of 2500)
£0.124
(exc. VAT)
£0.149
(inc. VAT)
- RS Stock No.:
- 103-8168
- Mfr. Part No.:
- 74HC74D,652
- Brand:
- Nexperia
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nexperia | |
| Logic Family | HC | |
| Product Type | Flip Flop IC | |
| Input Type | Single Ended | |
| Output Type | Dual D Type | |
| Clock Frequency | 24MHz | |
| Polarity | Inverting, Non-Inverting | |
| Mount Type | Surface | |
| Minimum Supply Voltage | 2V | |
| Package Type | SOIC | |
| Pin Count | 14 | |
| Maximum Supply Voltage | 6V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Propagation Delay Time @ CL | 45ns | |
| Flip-Flop Type | Type D | |
| Trigger Type | Positive Edge | |
| Maximum Operating Temperature | 125°C | |
| Number of Elements per Chip | 2 | |
| Standards/Approvals | No | |
| Height | 1.45mm | |
| Length | 8.75mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Nexperia | ||
Logic Family HC | ||
Product Type Flip Flop IC | ||
Input Type Single Ended | ||
Output Type Dual D Type | ||
Clock Frequency 24MHz | ||
Polarity Inverting, Non-Inverting | ||
Mount Type Surface | ||
Minimum Supply Voltage 2V | ||
Package Type SOIC | ||
Pin Count 14 | ||
Maximum Supply Voltage 6V | ||
Minimum Operating Temperature -40°C | ||
Maximum Propagation Delay Time @ CL 45ns | ||
Flip-Flop Type Type D | ||
Trigger Type Positive Edge | ||
Maximum Operating Temperature 125°C | ||
Number of Elements per Chip 2 | ||
Standards/Approvals No | ||
Height 1.45mm | ||
Length 8.75mm | ||
Automotive Standard No | ||
74HC Family Flip-Flops & Latches, Nexperia
A range of NXP Flip-Flops and Latches from the 74HC Family of CMOS Logic ICs. The 74HC Family use silicon gate CMOS technology to achieve operating speeds similar to the LSTTL family but with the low power consumption of standard CMOS integrated circuits.
High-Speed CMOS Logic
Operating Voltage: 2 to 6 V
Compatibility: Input CMOS, Output CMOS
74HC Family
