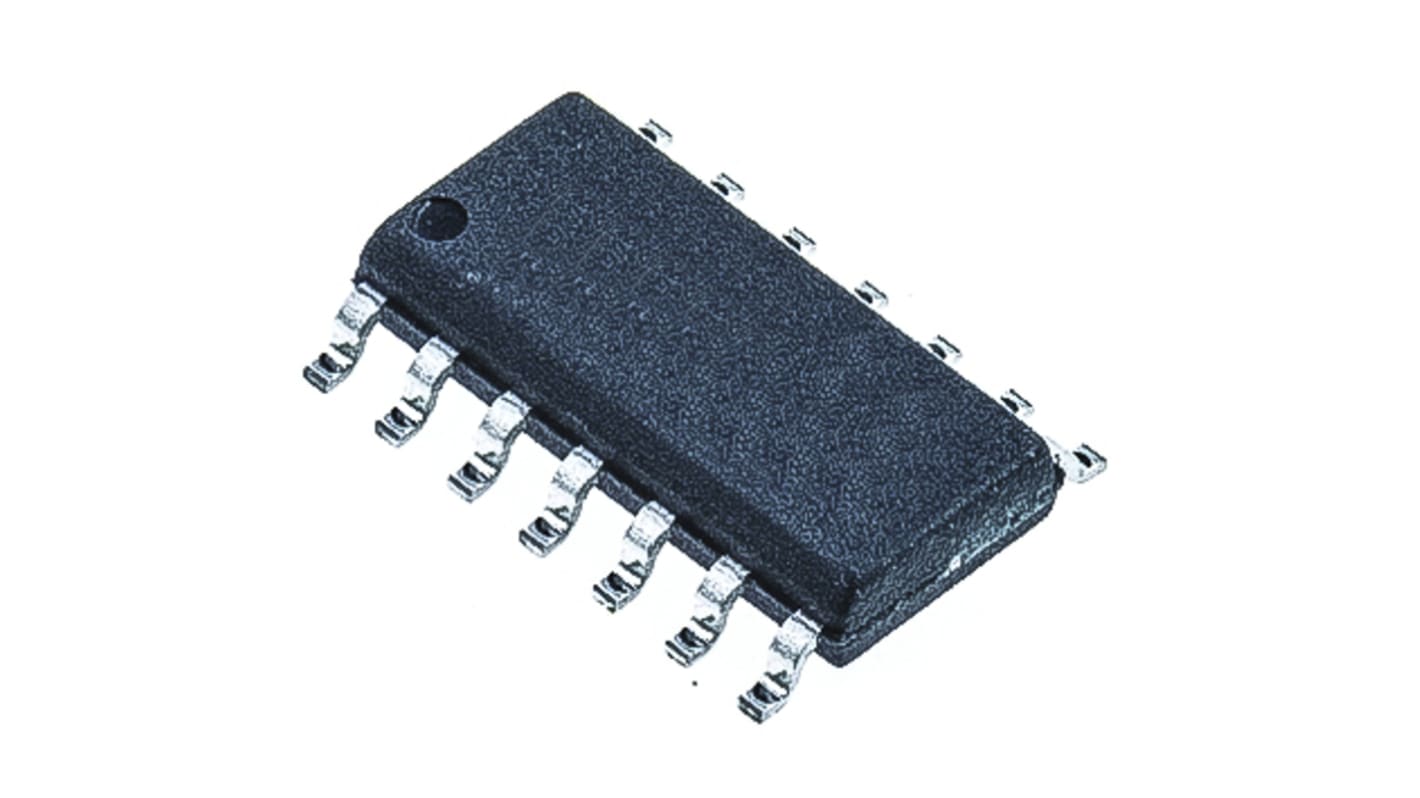

Nexperia 74HC74D,653 2 Flip Flop IC 74HC, D Type, 14-Pin SO
- RS Stock No.:
- 170-7974
- Mfr. Part No.:
- 74HC74D,653
- Brand:
- Nexperia
Subtotal (1 reel of 2500 units)*
£287.50
(exc. VAT)
£345.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 5,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2500 + | £0.115 | £287.50 |
*price indicative
- RS Stock No.:
- 170-7974
- Mfr. Part No.:
- 74HC74D,653
- Brand:
- Nexperia
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nexperia | |
| Product Type | Flip Flop IC | |
| Logic Family | 74HC | |
| Input Type | CMOS | |
| Output Type | D Type | |
| Clock Frequency | 24MHz | |
| Mount Type | Surface | |
| Minimum Supply Voltage | 2V | |
| Package Type | SO | |
| Maximum Supply Voltage | 6V | |
| Pin Count | 14 | |
| Maximum Propagation Delay Time @ CL | 45ns | |
| Flip-Flop Type | D Flip-Flop | |
| Trigger Type | Positive Edge | |
| Minimum Operating Temperature | -40°C | |
| Number of Elements per Chip | 2 | |
| Maximum Operating Temperature | 125°C | |
| Height | 1.45mm | |
| Length | 8.75mm | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Nexperia | ||
Product Type Flip Flop IC | ||
Logic Family 74HC | ||
Input Type CMOS | ||
Output Type D Type | ||
Clock Frequency 24MHz | ||
Mount Type Surface | ||
Minimum Supply Voltage 2V | ||
Package Type SO | ||
Maximum Supply Voltage 6V | ||
Pin Count 14 | ||
Maximum Propagation Delay Time @ CL 45ns | ||
Flip-Flop Type D Flip-Flop | ||
Trigger Type Positive Edge | ||
Minimum Operating Temperature -40°C | ||
Number of Elements per Chip 2 | ||
Maximum Operating Temperature 125°C | ||
Height 1.45mm | ||
Length 8.75mm | ||
Standards/Approvals No | ||
Automotive Standard No | ||
The 74HC74 and 74HCT74 are dual positive edge triggered D-type flip-flop. They have individual data (nD), clock (nCP), set (nSD) and reset (nRD) inputs, and complementary nQ and nQ outputs. Data at the nD-input, that meets the set-up and hold time requirements on the LOW-to-HIGH clock transition, is stored in the flip-flop and appears at the nQ output. Schmitt-trigger action in the clock input, makes the circuit highly tolerant to slower clock rise and fall times.
Mixed 5 V and 3.3 V applications
Improved signal integrity with integrated termination resistors
High noise immunity
Flow through pin out for easy layout
Wide supply voltage range
Low propagation delay
Overvoltage tolerant input options
Integrated source termination resistor options
Bus hold options
Key applications
Frequency division
Controlled delays
Interface between asynchronous and synchronous systems
