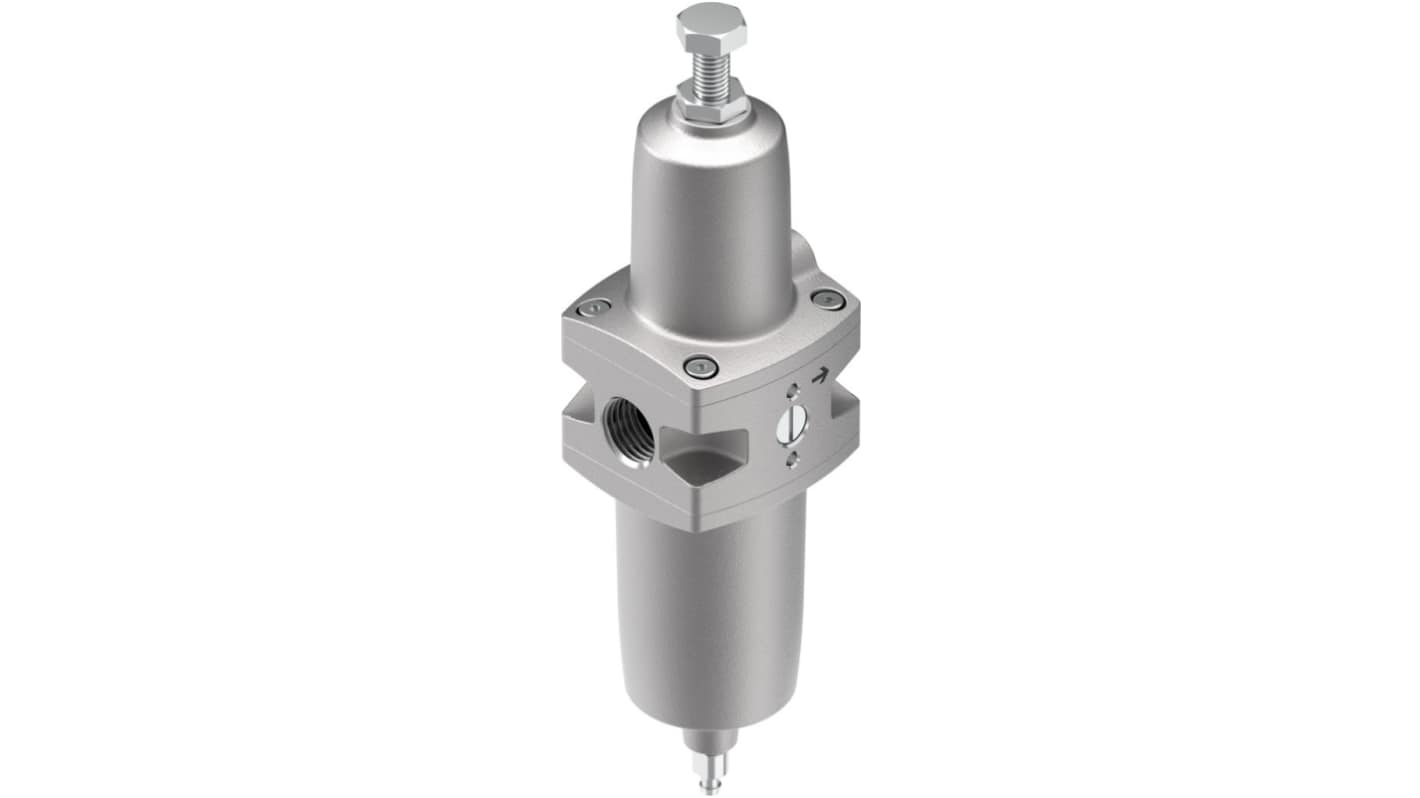

Festo P Stainless Steel Filter Regulator, 40μm, NPT 1/2-14, Manual, 20 bar, 4787809

RS Stock No.:: 288-2881
Mfr. Part No.:: PCRP-64-N12-7-E-R1-M-T18
Brand:: Festo

Festo P Stainless Steel Filter Regulator, 40μm, NPT 1/2-14, Manual, 20 bar, 4787809

Subtotal (1 unit)*

£293.72

(exc. VAT)

£352.46

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

Shipping from 01 December 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£293.72

*price indicative

RS Stock No.:: 288-2881
Mfr. Part No.:: PCRP-64-N12-7-E-R1-M-T18
Brand:: Festo

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Festo
	Port Connection	NPT 1/2-14
	Maximum Operating Pressure	20 bar
	Manufacturer Series	P
	Drain Type	Manual
	Filtration Size	40µm
	Pressure Gauge Port	G 1/4
	Pressure Gauge Port Thread Size	1/4 in
	Port Connection Thread Size	1/2-14 in
	Maximum Ambient Operating Temperature	+80°C
	Minimum Process Operating Temperature	-20°C
	Minimum Operating Pressure	1bar
	Port Connection Thread Standard	NPT
	Process Operating Temperature Range	-20 → +80°C
	Pressure Gauge Port Thread Standard	G
	Maximum Process Operating Temperature	+80°C
	Model Number	4787809
	Bowl Material	Stainless Steel
	Minimum Ambient Operating Temperature	-20°C
	Ambient Operating Temperature Range	-20 → +80°C

	Select all
	Brand Festo
	Port Connection NPT 1/2-14
	Maximum Operating Pressure 20 bar
	Manufacturer Series P
	Drain Type Manual
	Filtration Size 40µm
	Pressure Gauge Port G 1/4
	Pressure Gauge Port Thread Size 1/4 in
	Port Connection Thread Size 1/2-14 in
	Maximum Ambient Operating Temperature +80°C
	Minimum Process Operating Temperature -20°C
	Minimum Operating Pressure 1bar
	Port Connection Thread Standard NPT
	Process Operating Temperature Range -20 → +80°C
	Pressure Gauge Port Thread Standard G
	Maximum Process Operating Temperature +80°C
	Model Number 4787809
	Bowl Material Stainless Steel
	Minimum Ambient Operating Temperature -20°C
	Ambient Operating Temperature Range -20 → +80°C

COO (Country of Origin):: IN

Festo Series P Filter Regulator, 20 bar Maximum Operating Pressure, 1/2-14 NPT Port Connection - PCRP-64-N12-7-E-R1-M-T18, Numeric Part Number: 4787809

This filter regulator is an essential component for ensuring the efficient operation of pneumatic systems. Designed for versatility, it acts as both a filter and regulator, operating efficiently within a range of -20 to +80°C. With a sturdy stainless steel construction, it delivers superior performance in demanding environments. Its manual drain feature and 40 μm filtration size enhance reliability in various applications.

Features & Benefits

• Superior filtration capability ensures air purity at 40 μm
• Adjustable pressure regulation from 0.5 bar to 7 bar
• Designed for high-pressure environments with a maximum of 20 bar
• Equipped for a pressure gauge connection for easy monitoring
• Versatile mounting options enable flexible installation

Applications

• Utilised in automated machinery for optimised air supply
• Ideal for systems requiring precise pressure control
• Suitable for use in industries dealing with compressed air
• Effective for involving inert gases
• Used in pneumatic systems to manage condensate efficiently

What is the maximum flow rate and how does it impact performance?

The highest standard flow rate is 4115 l/min, facilitating quick air movement and improving system responsiveness in industrial applications.

Can this component be used in explosion-risk zones?

Yes, it is compliant for use in Zone 1 and Zone 2 locations, ensuring safe operations in potentially hazardous areas.

What materials are used in the construction and how do they contribute to longevity?

Constructed primarily from high-alloy stainless steel, the robust materials enhance resistance to corrosion and wear, extending service life.

Is lubricated operation allowed and what should be considered?

Lubricated operation is possible, but it’s essential to ensure consistent lubrication to maintain performance and prevent wear.
