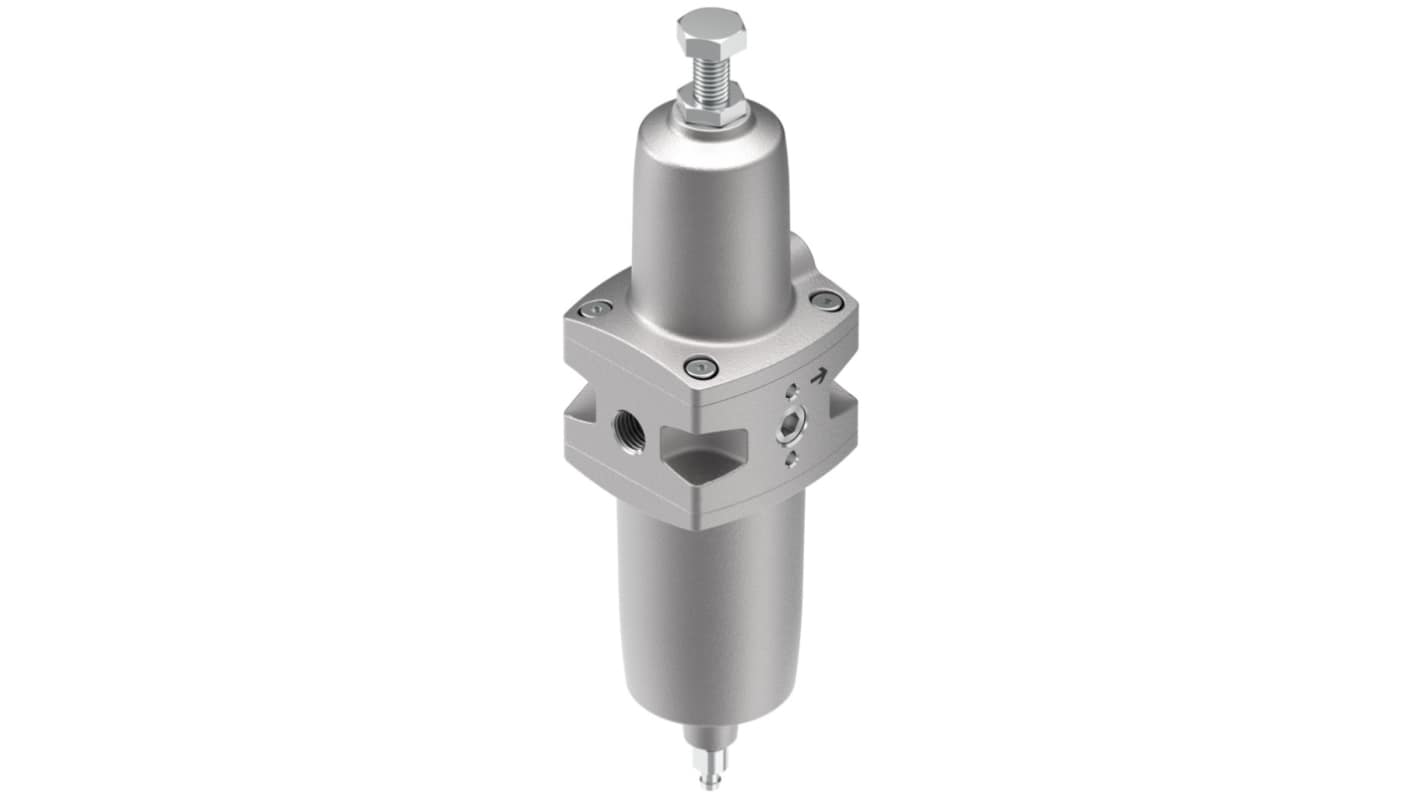

Festo P Stainless Steel Filter Regulator, 40μm, NPT 1/4-18, Manual, 20 bar, 4787801

View all Filter Regulators

Subtotal (1 unit)*

£267.03

(exc. VAT)

£320.44

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£267.03

*price indicative

RS Stock No.:
288-2889
Mfr. Part No.:
PCRP-64-N14-7-E-R1-M-T18
Brand:
Festo
Find similar products by selecting one or more attributes.
Select all

Brand

Festo

Port Connection

NPT 1/4-18

Maximum Operating Pressure

20 bar

Manufacturer Series

P

Drain Type

Manual

Filtration Size

40µm

Pressure Gauge Port

G 1/4

Pressure Gauge Port Thread Size

1/4 in

Port Connection Thread Size

1/4-18 in

Maximum Ambient Operating Temperature

+80°C

Minimum Process Operating Temperature

-20°C

Minimum Operating Pressure

1bar

Minimum Ambient Operating Temperature

-20°C

Model Number

4787801

Port Connection Thread Standard

NPT

Maximum Process Operating Temperature

+80°C

Bowl Material

Stainless Steel

Process Operating Temperature Range

-20 → +80°C

Ambient Operating Temperature Range

-20 → +80°C

Pressure Gauge Port Thread Standard

G

COO (Country of Origin):
IN

Festo Series P Filter Regulator, 20 bar Maximum Operating Pressure, 40 μm Filtration size - PCRP-64-N14-7-E-R1-M-T18, Numeric Part Number: 4787801


This filter regulator is designed to deliver reliable performance in various industrial applications. With a maximum operating pressure of 20 bar and a compact size, it is well-suited for managing compressed air effectively. The filter regulator features a manual drain, allowing for easy removal of condensate. Constructed from stainless steel, it ensures durability and longevity in challenging environments, operating efficiently within a temperature range of -20°C to +80°C.

Features & Benefits


• Manual condensate drain simplifies maintenance and operation
• High filtration efficiency at 40 μm for optimal air purity
• NPT 1/4 port connection ensures compatibility with standard systems
• Adjustable pressure regulation from 1 bar to 20 bar supports diverse requirements
• Designed for vertical mounting with a ±5° tolerance for easy installation
• Prepared for pressure gauge connection for monitoring operational performance

Applications


• Used for controlling air pressure in pneumatic systems
• Ideal for filtering compressed air in manufacturing processes
• Suitable for requiring specific pressure regulation
• Utilised in environments with stringent air quality standards

What types of materials are used in this filter regulator?


The regulator is primarily constructed from high-alloy stainless steel, ensuring resistance to corrosion and durability in various conditions. The bowl and housing are made from stainless steel casting, designed to withstand high pressures and temperatures.

How can pressure regulation be adjusted on this device?


Adjustment is facilitated via a lockable actuator screw, allowing for precise control over the output pressure within the specified range of 1 bar to 20 bar. This feature is beneficial in tailoring performance to specific operational needs.

What range of operating temperatures can this filter regulator handle?


It can function effectively within a temperature range of -20°C to +80°C, making it suitable for various industrial applications where temperature fluctuations are expected.

How much condensate can this regulator collect before draining?


The maximum condensate volume that can be collected in this model is 30ml, ensuring effective operation without the need for frequent maintenance. This feature aids in continuous performance without interruptions.
