Festo P Stainless Steel Filter Regulator, 40μm, NPT 1/2-14, Manual, 20 bar, 4787810

View all Filter Regulators

Subtotal (1 unit)*

£293.72

(exc. VAT)

£352.46

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 10 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£293.72

*price indicative

RS Stock No.:
288-2877
Mfr. Part No.:
PCRP-64-N12-12-E-R1-M-T18
Brand:
Festo
Find similar products by selecting one or more attributes.
Select all

Brand

Festo

Port Connection

NPT 1/2-14

Maximum Operating Pressure

20 bar

Manufacturer Series

P

Drain Type

Manual

Filtration Size

40µm

Pressure Gauge Port

G 1/4

Pressure Gauge Port Thread Size

1/4 in

Port Connection Thread Size

1/2-14 in

Maximum Ambient Operating Temperature

+80°C

Minimum Process Operating Temperature

-20°C

Minimum Operating Pressure

1bar

Pressure Gauge Port Thread Standard

G

Maximum Process Operating Temperature

+80°C

Port Connection Thread Standard

NPT

Process Operating Temperature Range

-20 → +80°C

Ambient Operating Temperature Range

-20 → +80°C

Model Number

4787810

Bowl Material

Stainless Steel

Minimum Ambient Operating Temperature

-20°C

COO (Country of Origin):
IN

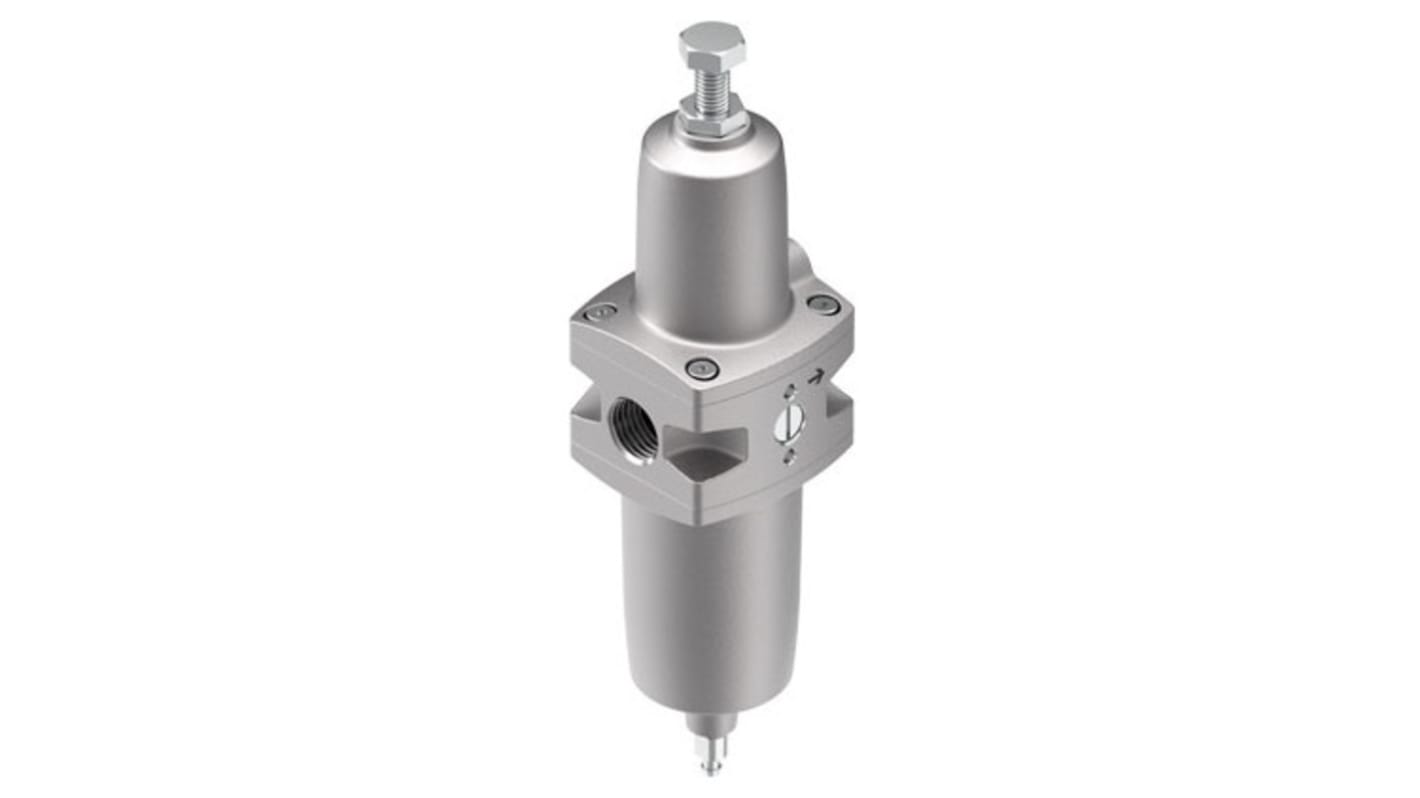

Festo Series P Filter Regulator, 20 bar Maximum Operating Pressure, 1/2-14 NPT Port Connection - PCRP-64-N12-12-E-R1-M-T18, Numeric Part Number: 4787810


This filter regulator is an essential component for maintaining optimal air quality in pneumatic systems. Designed to handle a maximum operating pressure of 20 bar, this robust unit features a manual drain mechanism and a filtration size of 40 μm. The stainless steel construction ensures durability and reliability in diverse applications, particularly in industrial settings.

Features & Benefits


• Facilitates efficient pressure regulation from 1 bar to 20 bar
• Manual condensate drain simplifies maintenance procedures
• Compatible with NPT 1/2-14 port connections for easy integration
• High flow rate of up to 6,440 l/min supports demanding applications
• Operates effectively within a temperature range of -20°C to +80°C

Applications


• Used for pressure regulation in pneumatic systems
• Effective in environments requiring air purity compliance
• Suitable for lubrication when lubricated operation is needed
• Ideal for industrial automation and manufacturing processes

What is the maximum allowable pressure variation during operation?


The regulator features a maximum pressure hysteresis of 0.2 bar, allowing for precise control in maintaining the desired pressure setting.

Can this regulator be mounted in different positions?


Yes, it can be installed in a vertical position with a tolerance of +/-5°, providing versatility for various installation scenarios.

Is lubricated operation recommended for this device?


While lubricated operation is possible, it is essential that lubricated operation is always used with this regulator to maintain functionality and performance.
