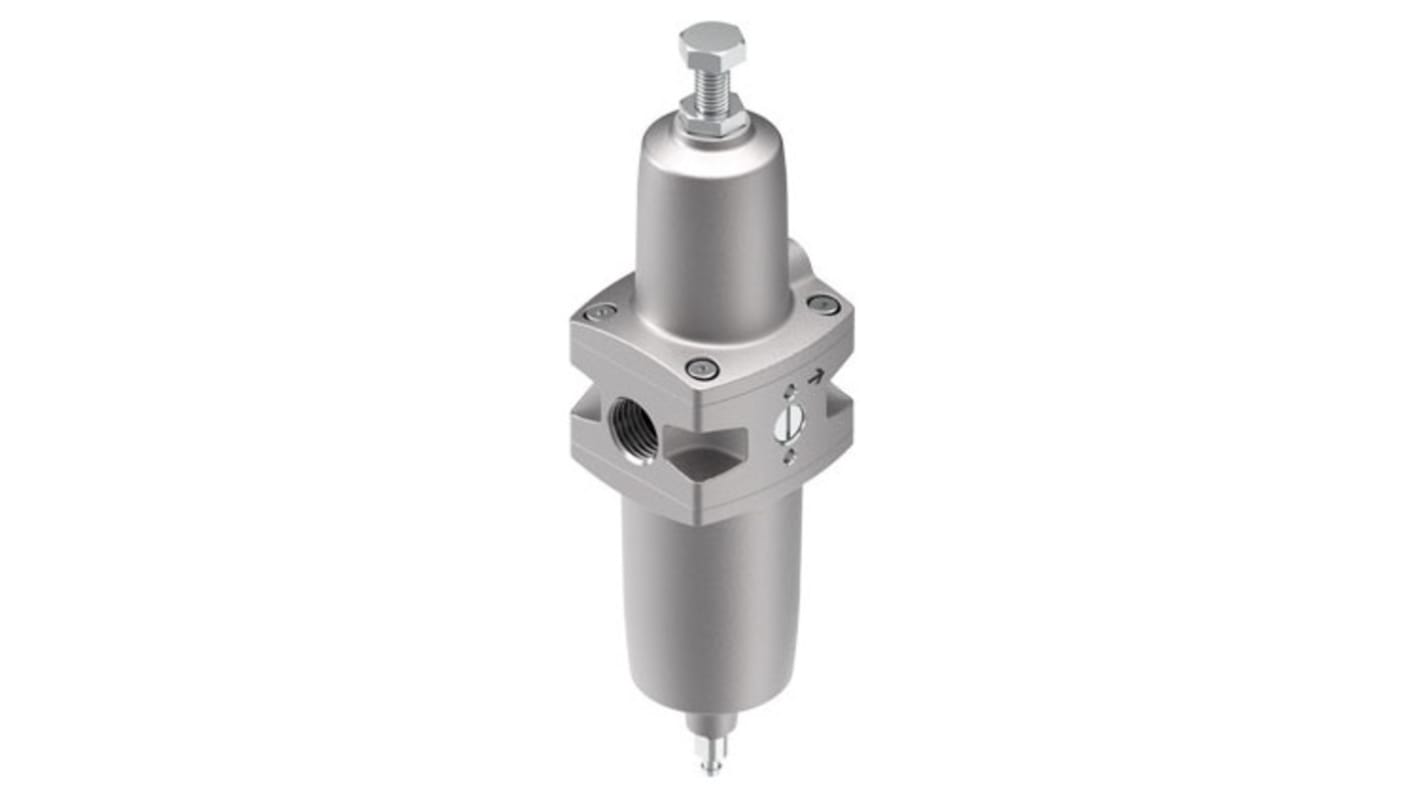

Festo P Stainless Steel Filter Regulator, 5μm, NPT 1/2-14, Manual, 20 bar, 4787808

RS Stock No.:: 288-2874
Mfr. Part No.:: PCRP-64-N12-12-C-R1-M-T18
Brand:: Festo

Festo P Stainless Steel Filter Regulator, 5μm, NPT 1/2-14, Manual, 20 bar, 4787808

Subtotal (1 unit)*

£293.72

(exc. VAT)

£352.46

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

Shipping from 10 November 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£293.72

*price indicative

RS Stock No.:: 288-2874
Mfr. Part No.:: PCRP-64-N12-12-C-R1-M-T18
Brand:: Festo

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Festo
	Port Connection	NPT 1/2-14
	Maximum Operating Pressure	20 bar
	Manufacturer Series	P
	Drain Type	Manual
	Filtration Size	5µm
	Pressure Gauge Port	G 1/4
	Pressure Gauge Port Thread Size	1/4 in
	Port Connection Thread Size	1/2-14 in
	Maximum Ambient Operating Temperature	+80°C
	Minimum Process Operating Temperature	-20°C
	Minimum Operating Pressure	1bar
	Bowl Material	Stainless Steel
	Model Number	4787808
	Maximum Process Operating Temperature	+80°C
	Minimum Ambient Operating Temperature	-20°C
	Ambient Operating Temperature Range	-20 → +80°C
	Pressure Gauge Port Thread Standard	G
	Port Connection Thread Standard	NPT
	Process Operating Temperature Range	-20 → +80°C

	Select all
	Brand Festo
	Port Connection NPT 1/2-14
	Maximum Operating Pressure 20 bar
	Manufacturer Series P
	Drain Type Manual
	Filtration Size 5µm
	Pressure Gauge Port G 1/4
	Pressure Gauge Port Thread Size 1/4 in
	Port Connection Thread Size 1/2-14 in
	Maximum Ambient Operating Temperature +80°C
	Minimum Process Operating Temperature -20°C
	Minimum Operating Pressure 1bar
	Bowl Material Stainless Steel
	Model Number 4787808
	Maximum Process Operating Temperature +80°C
	Minimum Ambient Operating Temperature -20°C
	Ambient Operating Temperature Range -20 → +80°C
	Pressure Gauge Port Thread Standard G
	Port Connection Thread Standard NPT
	Process Operating Temperature Range -20 → +80°C

COO (Country of Origin):: IN

Festo Series P Filter Regulator, 20 bar Maximum Operating Pressure, 5 μm Filtration size - PCRP-64-N12-12-C-R1-M-T18, Numeric Part Number: 4787808

This filter regulator is an essential component for managing compressed air systems, offering high-performance filtration and pressure regulation. Designed for industrial applications, it operates effectively in ambient temperatures ranging from -20°C to +80°C. With its stainless steel construction, it ensures durability and resistance to corrosion.

Features & Benefits

• Functions as a pressure regulation system for precise control
• Manual drain feature simplifies maintenance and operation
• Designed with 5 μm filtration to ensure a clean air supply
• Supports a wide operating pressure range from 1 bar to 20 bar
• Prepared for pressure gauge installation for monitoring performance

Applications

• Used for regulating air supply in automation systems
• Effective in pneumatic systems for reliable pressure control
• Utilised in machinery requiring clean, regulated air
• Ideal for processes demanding precise filtration levels

How does the filter regulator handle high pressure?

The design allows for a maximum operating pressure of 20 bar, providing reliable performance in high-pressure applications. It accommodates a pressure regulation range of up to 12 bar, making it versatile for various system needs.

What materials are used in its construction?

The regulator features high-alloy stainless steel for the housing, bowl, and internal components, ensuring durability and compliance with industry standards. This robust material selection also helps maintain performance in harsh conditions.

Can this filter regulator be used with different operating mediums?

Yes, it is suitable for use with both compressed air and inert gases, providing flexibility across different applications while maintaining efficiency and effectiveness in performance.
