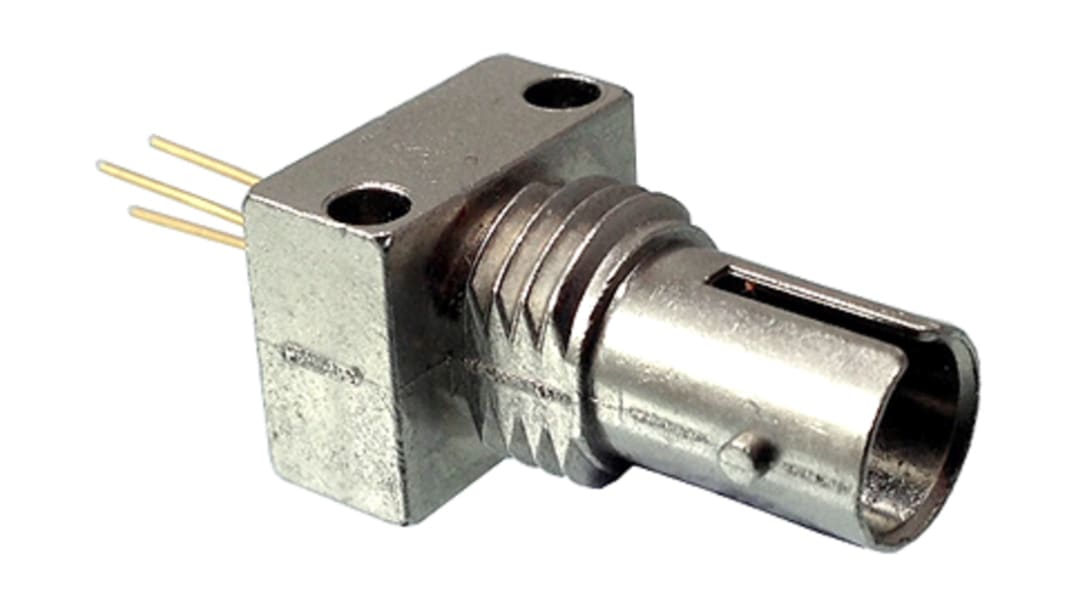

Optek OPF522 5MBd Fibre Optic Receiver, Square, ST Connector
- RS Stock No.:
- 170-0948
- Mfr. Part No.:
- OPF522
- Brand:
- Optek
View all Fibre Optic Receivers
75 In stock - FREE next working day delivery available
Price Each (In a Tray of 25)
£15.847
(exc. VAT)
£19.016
(inc. VAT)
| Units | Per unit | Per Tray* |
| 25 + | £15.847 | £396.175 |
| *price indicative | ||
- RS Stock No.:
- 170-0948
- Mfr. Part No.:
- OPF522
- Brand:
- Optek
- COO (Country of Origin):
- MX
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- MX
Product Details
OPF522 Series Fibre Optic Receivers
The OPF520 series, from Optek Techonology, is a family of fibre optic receivers. The OPF520 has a plastic cap package whilst the OPF522 comes in a metal ST package. They contain a monolithic photo IC consisting of a photodiode, biasing network, DC amplifier and an open collector output transistor.
Designed for data communication links, the OPF520 fibre optic receivers are ideal for applications such as industrial ethernet equipment, copper-to-fibre media conversion, intra-system fibre optic links and video surveillance systems.
Designed for data communication links, the OPF520 fibre optic receivers are ideal for applications such as industrial ethernet equipment, copper-to-fibre media conversion, intra-system fibre optic links and video surveillance systems.
Fibre Optics, Optek
Specifications
| Attribute | Value |
| Maximum Data Rate | 5MBd |
| Connector Shape | Square |
| Typical Rise Time | 30ns |
| Typical Fall Time | 30ns |
| Number of Pins | 3 |
| Mounting Type | Panel Mount |
| Dimensions | 12.7 x 7.98 x 20.32mm |
| Connector Type | ST |
| Height | 20.32mm |
| Length | 12.7mm |
| Width | 7.98mm |
| Series | OPF520 |
