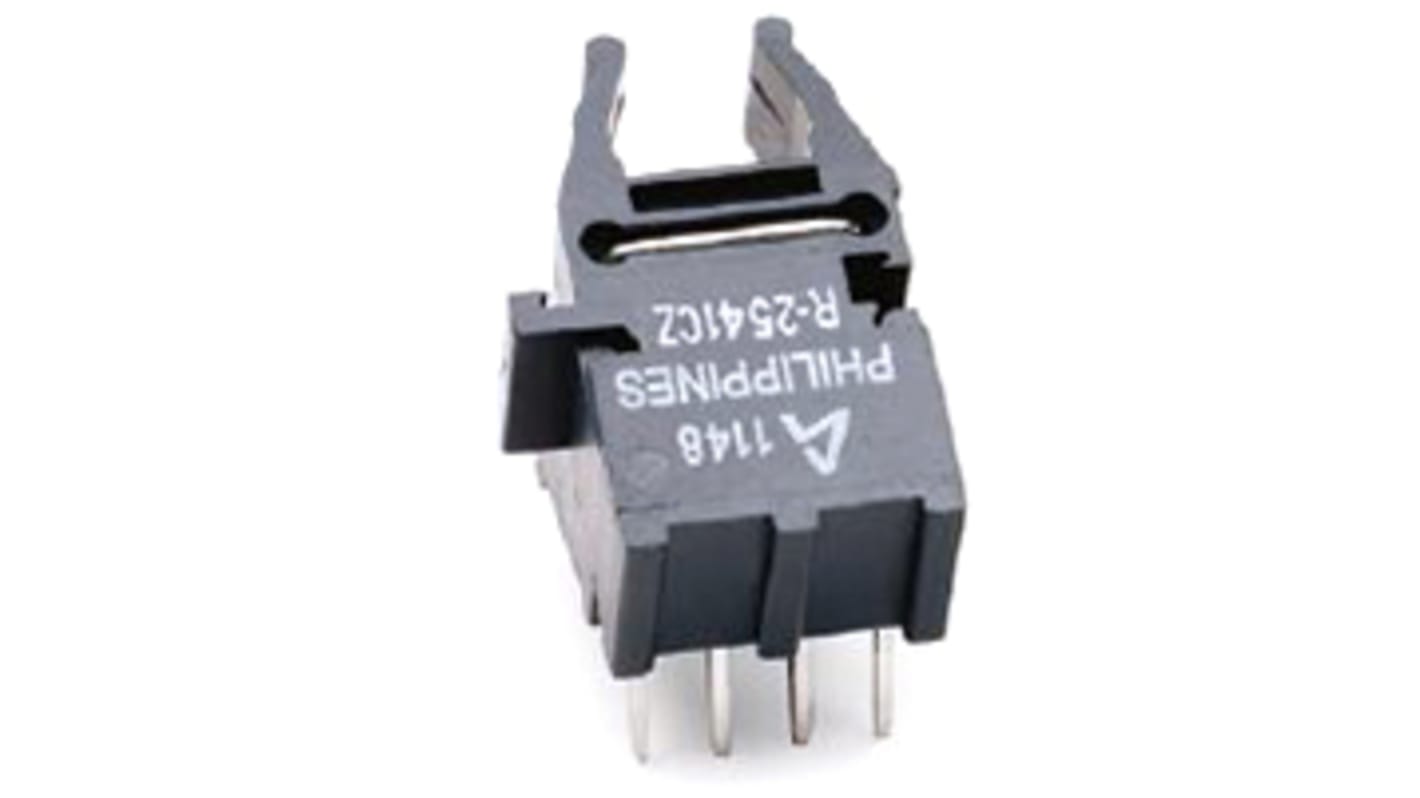

Broadcom AFBR-2541CZ 5MBd 685nm Fibre Optic Receiver, Rectangular

View all Fibre Optic Receivers

Subtotal (1 unit)*

£12.04

(exc. VAT)

£14.45

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 455 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£12.04

*price indicative

RS Stock No.:
910-7122
Mfr. Part No.:
AFBR-2541CZ
Brand:
Broadcom
Find similar products by selecting one or more attributes.
Select all

Brand

Broadcom

Maximum Data Rate

5MBd

Connector Shape

Rectangular

Wavelength of Peak Sensitivity

685nm

Number of Pins

4

Mounting Type

Through Hole

Dimensions

19.3 x 12.2 x 15.2mm

Height

15.2mm

Length

19.3mm

Width

12.2mm

Output Signal Type

TTL

AFBR-25x1CZ Series Fibre Optic Receivers


The AFBR-25x1 Z Versatile Link series from Avago Technologies are fibre optic link transmitters. There are three different packages available. The AFBR-2521CZ is a horizontal package, AFBR-2531CZ vertical and AFBR-2541CZ is the tilted (30°) Package. The receiver consists of an IC with photodiode that offers a TTL logic output. Whereas the transmitter has a signal from DC to 5 MBd up to 50 M. Applications include drivers and inverters, RS-232 and RS-485 extensions, Industrial control and factory automation.

AFBR-25x1CZ Fibre Optic Receiver for 1 mm POF and 200 μm PC
Versatile Link housing: Compatible with Avago Technologies Versatile Link family of connectors
Space saving
Inverted output signals
RoHS-compliant
Receiver: integrated PIN diode and digitalising IC with TTL output logic
Power-on reset (POR)
50 M distance with 1 mm (POF)/ 500 M distance with 200 μm Polymer Cladding Silica (PCS) Fibre
Operating temperature range of -40 °C to +90 °C


Fibre Optics, Avago Technologies
