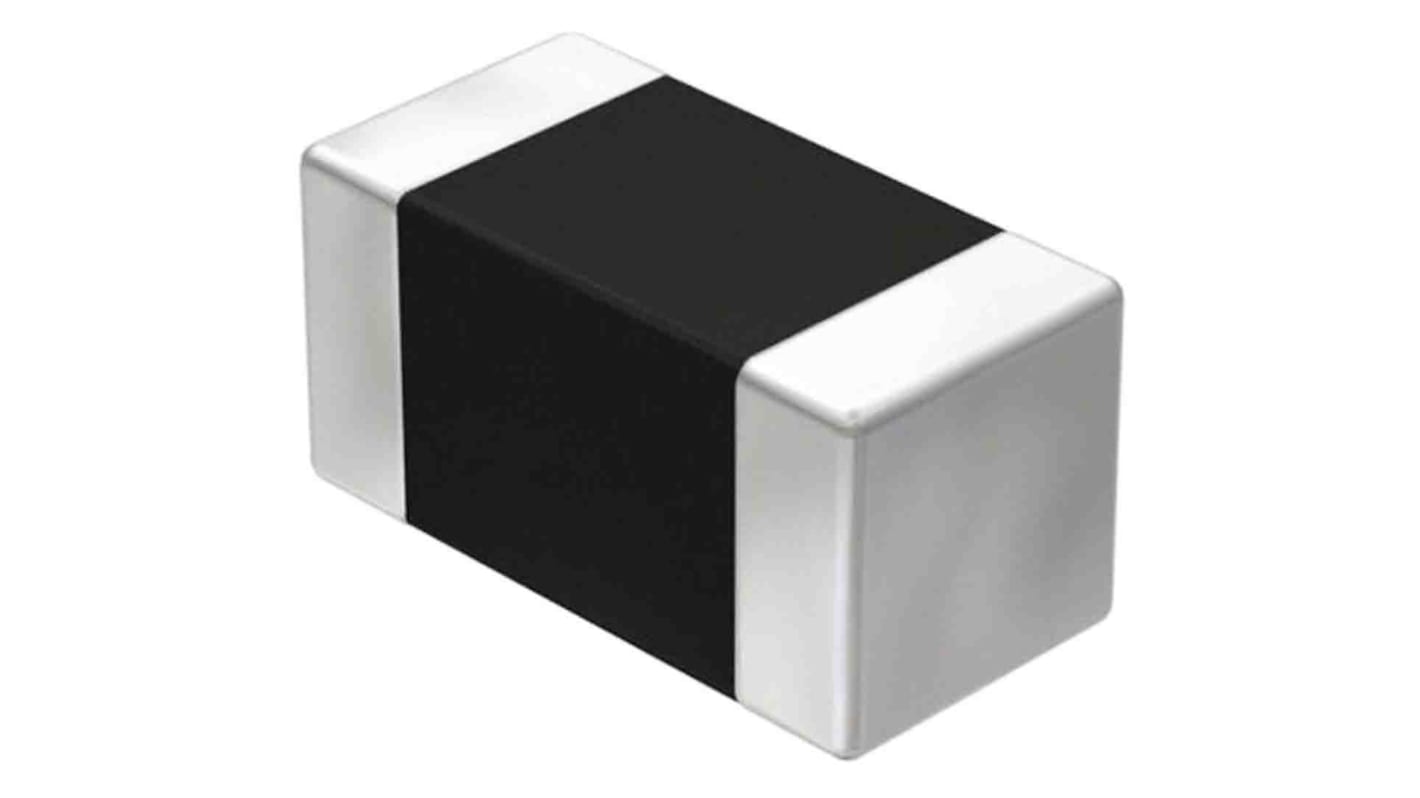

Bourns Ferrite Bead 0.9 mm (Surface) (2029) (Chip Ferrite Bead), 30 Ω impedance at 100 MHz
- RS Stock No.:
- 181-4423
- Mfr. Part No.:
- MH2029-300Y
- Brand:
- Bourns
Subtotal (1 reel of 4000 units)*
£76.00
(exc. VAT)
£92.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 8,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 4000 + | £0.019 | £76.00 |
*price indicative
- RS Stock No.:
- 181-4423
- Mfr. Part No.:
- MH2029-300Y
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Product Type | Ferrite Bead | |
| Package Type | 2029 | |
| Packaging | Reel | |
| Impedance at 100 MHz | 30Ω | |
| Current Rating | 3A | |
| Mount Type | Surface | |
| Sub Type | Chip Ferrite Bead | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Depth | 1.2mm | |
| Standards/Approvals | RoHS, Halogen Free | |
| Maximum DC Resistance | 25mΩ | |
| Length | 2mm | |
| Height | 0.9mm | |
| Series | MH | |
| Automotive Standard | No | |
| Material | Ferrite | |
| Application | Power Supplies | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Product Type Ferrite Bead | ||
Package Type 2029 | ||
Packaging Reel | ||
Impedance at 100 MHz 30Ω | ||
Current Rating 3A | ||
Mount Type Surface | ||
Sub Type Chip Ferrite Bead | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Depth 1.2mm | ||
Standards/Approvals RoHS, Halogen Free | ||
Maximum DC Resistance 25mΩ | ||
Length 2mm | ||
Height 0.9mm | ||
Series MH | ||
Automotive Standard No | ||
Material Ferrite | ||
Application Power Supplies | ||
High resistance to heat and humidity
Resistance to mechanical shock and pressure
Accurate dimensions for automatic
surface mounting
Wide inductance range (1.0 nH to 1000 uH)
Lead free
Applications
Mobil phones
Cellular phones
CTV, VCR, HIC, FDD
