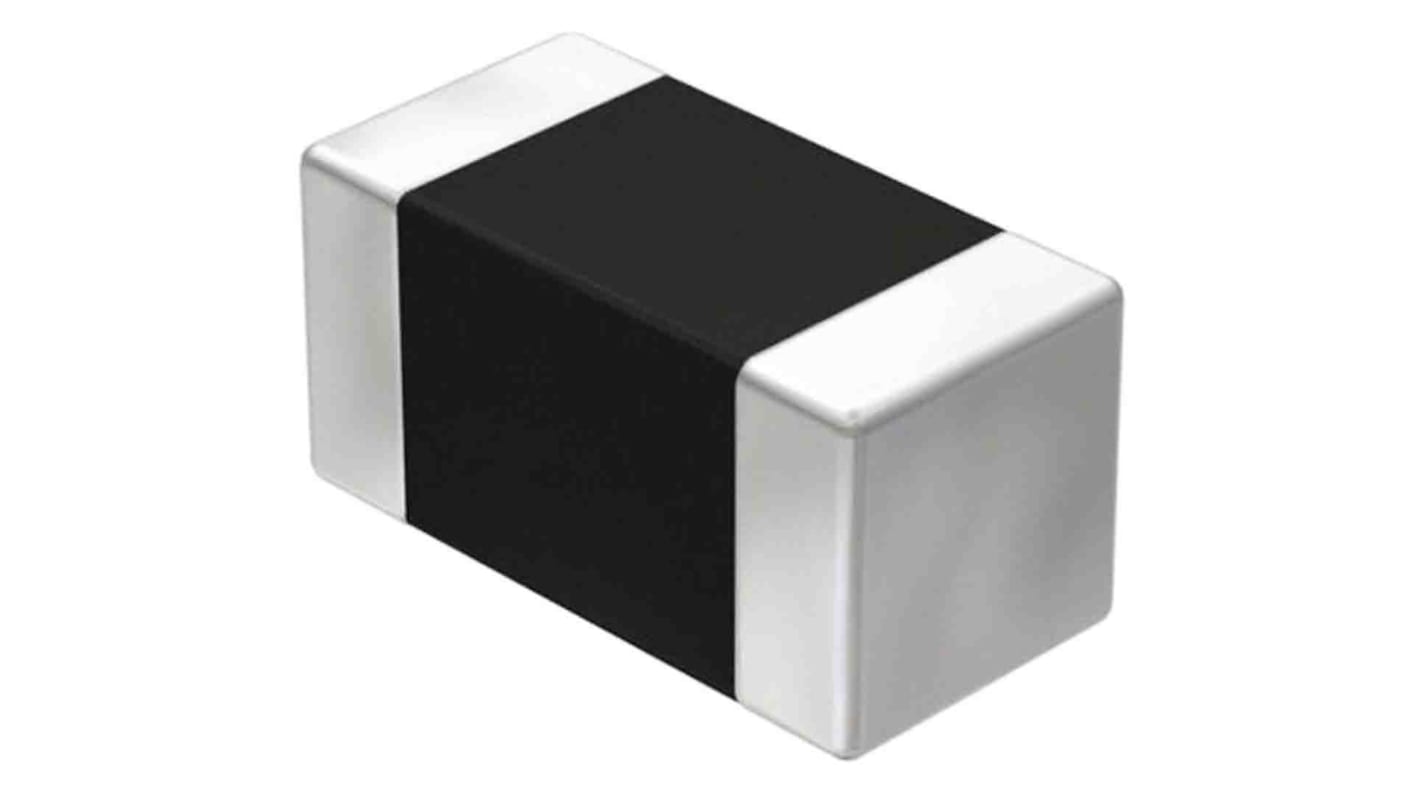

Bourns Ferrite Bead 1.1 mm (Surface) (3261) (Chip Ferrite Bead), 600 Ω impedance at 100 MHz
- RS Stock No.:
- 181-4471
- Distrelec Article No.:
- 304-30-142
- Mfr. Part No.:
- MH3261-601Y
- Brand:
- Bourns
Bulk discount available
View bulk pricing optionsSubtotal (1000 units, on reels of 1000)*
£33.00
(exc. VAT)
£40.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 4,000 unit(s) ready to ship
- Plus 12,000 unit(s) shipping from 16 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1000 - 1000 | £0.033 | £33.00 |
| 2000 - 2000 | £0.028 | £28.00 |
| 3000 - 3000 | £0.025 | £25.00 |
| 4000 + | £0.023 | £23.00 |
*price indicative
- RS Stock No.:
- 181-4471
- Distrelec Article No.:
- 304-30-142
- Mfr. Part No.:
- MH3261-601Y
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Product Type | Ferrite Bead | |
| Package Type | 3261 | |
| Impedance at 100 MHz | 600Ω | |
| Packaging | Reel | |
| Current Rating | 2A | |
| Sub Type | Chip Ferrite Bead | |
| Mount Type | Surface | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Height | 1.1mm | |
| Maximum DC Resistance | 100mΩ | |
| Standards/Approvals | RoHS Directive 2002, Halogen Free, EU, EC, RoHS Recast 2011, 95 | |
| Depth | 1.6mm | |
| Length | 3.2mm | |
| Application | Power Supplies | |
| Automotive Standard | No | |
| Series | MH | |
| Material | Ferrite | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Product Type Ferrite Bead | ||
Package Type 3261 | ||
Impedance at 100 MHz 600Ω | ||
Packaging Reel | ||
Current Rating 2A | ||
Sub Type Chip Ferrite Bead | ||
Mount Type Surface | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Height 1.1mm | ||
Maximum DC Resistance 100mΩ | ||
Standards/Approvals RoHS Directive 2002, Halogen Free, EU, EC, RoHS Recast 2011, 95 | ||
Depth 1.6mm | ||
Length 3.2mm | ||
Application Power Supplies | ||
Automotive Standard No | ||
Series MH | ||
Material Ferrite | ||
High resistance to heat and humidity
Resistance to mechanical shock and pressure
Accurate dimensions for automatic
surface mounting
Wide inductance range (1.0 nH to 1000 uH)
Lead free
Applications
Mobil phones
Cellular phones
CTV, VCR, HIC, FDD
