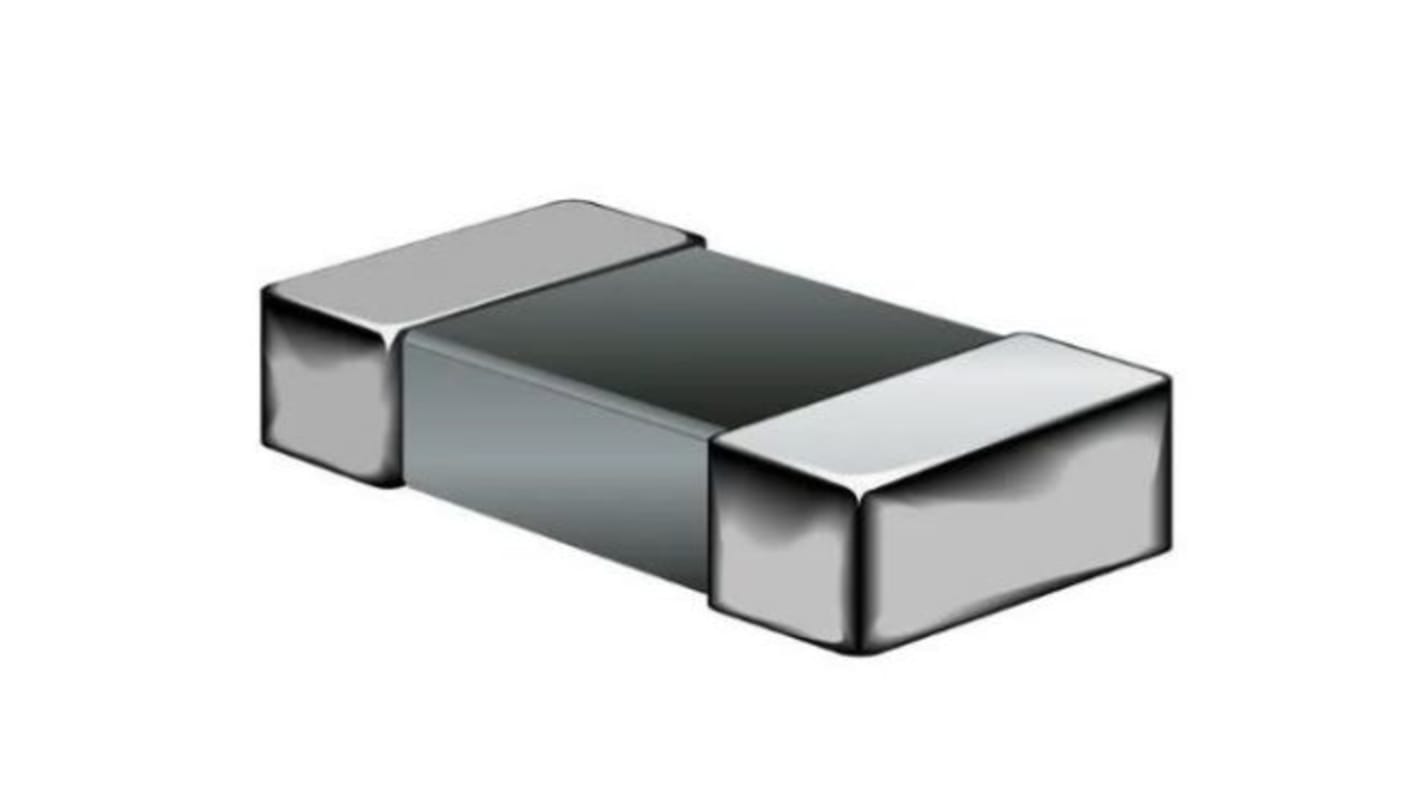

Bourns Ferrite Bead 0.7 mm (Surface) (0805) (EMI Filter & Protection), 100 Ω impedance at 25 MHz, 220 Ω impedance at 100
- RS Stock No.:
- 246-3242
- Mfr. Part No.:
- MH2029-221Y
- Brand:
- Bourns
Subtotal (1 reel of 4000 units)*
£76.00
(exc. VAT)
£92.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 06 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 4000 + | £0.019 | £76.00 |
*price indicative
- RS Stock No.:
- 246-3242
- Mfr. Part No.:
- MH2029-221Y
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Package Type | 0805 | |
| Product Type | Ferrite Bead | |
| Impedance at 25 MHz | 100Ω | |
| Impedance at 50 MHz | 150Ω | |
| Impedance at 100 MHz | 220Ω | |
| Packaging | Reel | |
| Impedance at 300 MHz | 275Ω | |
| Current Rating | 2A | |
| Sub Type | EMI Filter & Protection | |
| Mount Type | Surface | |
| Pin Count | 2 | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 125°C | |
| Height | 0.7mm | |
| Maximum DC Resistance | 100mΩ | |
| Standards/Approvals | RoHS | |
| Length | 3.2mm | |
| Depth | 1mm | |
| Material | Ferrite | |
| Application | Signal Line, Power Supplies, Ic Power Line | |
| Series | MH | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Package Type 0805 | ||
Product Type Ferrite Bead | ||
Impedance at 25 MHz 100Ω | ||
Impedance at 50 MHz 150Ω | ||
Impedance at 100 MHz 220Ω | ||
Packaging Reel | ||
Impedance at 300 MHz 275Ω | ||
Current Rating 2A | ||
Sub Type EMI Filter & Protection | ||
Mount Type Surface | ||
Pin Count 2 | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 125°C | ||
Height 0.7mm | ||
Maximum DC Resistance 100mΩ | ||
Standards/Approvals RoHS | ||
Length 3.2mm | ||
Depth 1mm | ||
Material Ferrite | ||
Application Signal Line, Power Supplies, Ic Power Line | ||
Series MH | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
The Bourns high current chip ferrite beads mainly used to take accurate dimensions for automatic surface mounting. It has high resistance to mechanical shock and pressure. It is used in power supply lines, IC power lines and signal lines.
High resistance to heat and humidity
Wide impedance range
RoHS compliant
Halogen free
