MOXA RJ45, 10/100 T Ethernet Media Converter, Multimode, 100Mbps, Full Duplex 5 km
- RS Stock No.:
- 256-3668
- Mfr. Part No.:
- IMC-P101-M-SC-T
- Brand:
- MOXA
Subtotal (1 unit)*
£622.32
(exc. VAT)
£746.78
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 21 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £622.32 |
*price indicative
- RS Stock No.:
- 256-3668
- Mfr. Part No.:
- IMC-P101-M-SC-T
- Brand:
- MOXA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MOXA | |
| Product Type | Ethernet Media Converter | |
| Number of Ports | 1 | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | EN 62368-1, IEC 60068-2-1, UL 508, IEC 60068-2-3, IEC 60068-2-2, UL 61010-2-201, EN 55032/35 | |
| Fibre Operating Mode | Full Duplex | |
| Maximum Transfer Distance | 5km | |
| Connection Port | RJ45, 10/100 T | |
| Fibre Type | Multimode | |
| Maximum Data Transfer Rate | 100Mbps | |
| Network Speed | 100Mbps | |
| Select all | ||
|---|---|---|
Brand MOXA | ||
Product Type Ethernet Media Converter | ||
Number of Ports 1 | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals EN 62368-1, IEC 60068-2-1, UL 508, IEC 60068-2-3, IEC 60068-2-2, UL 61010-2-201, EN 55032/35 | ||
Fibre Operating Mode Full Duplex | ||
Maximum Transfer Distance 5km | ||
Connection Port RJ45, 10/100 T | ||
Fibre Type Multimode | ||
Maximum Data Transfer Rate 100Mbps | ||
Network Speed 100Mbps | ||
- COO (Country of Origin):
- TW

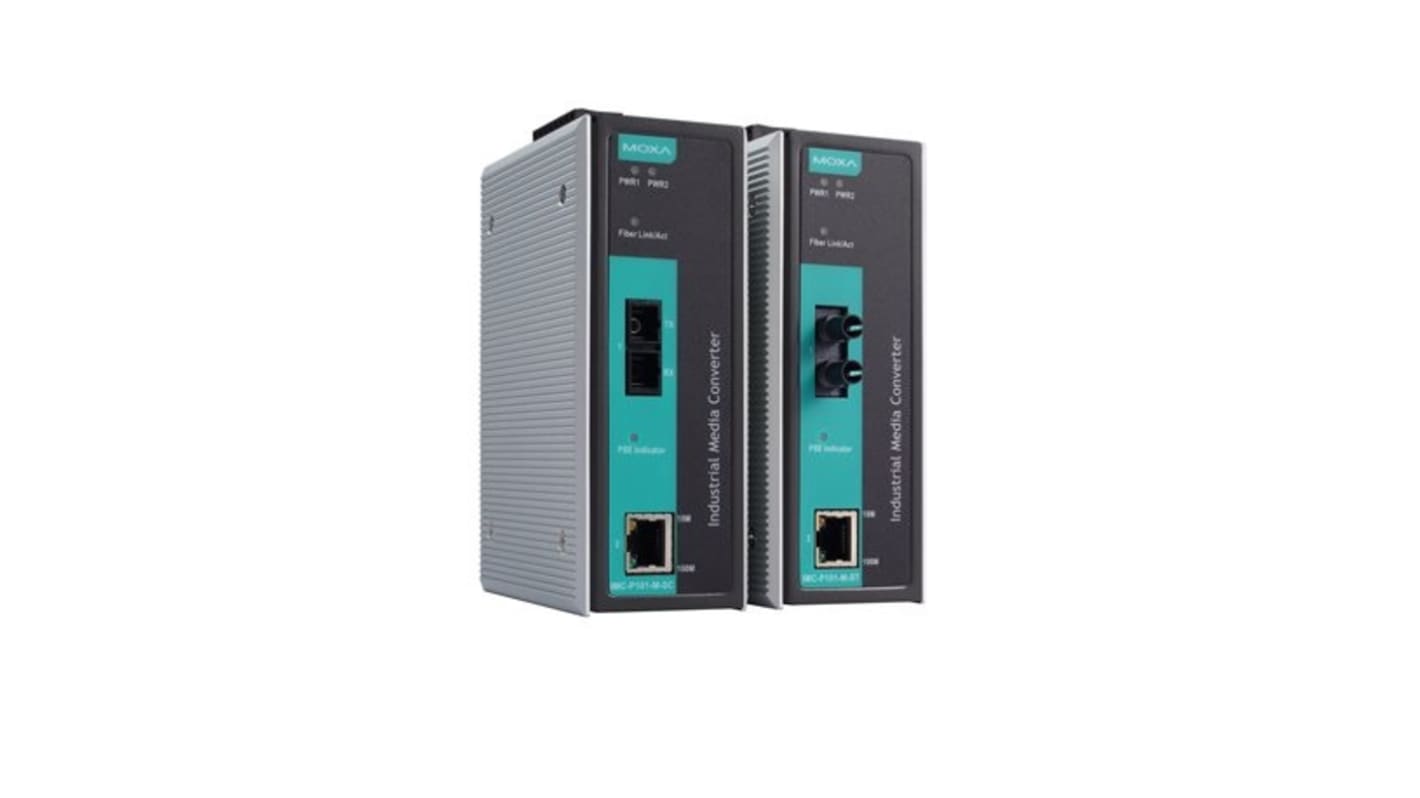

The Moxa Europe IMC-P101 Ethernet-to-fibre media converters provide Ethernet media conversion from 10/100BaseT(X) to 100BaseFX (with SC or ST connectors). These converters are classified as power source equipment (PSE), they provide up to 30 watts to powered devices (PDs), eliminating the need for additional wiring. The IMC-P101 converters support IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, and MDI/MDI-X auto-sensing, providing a complete solution for your industrial Ethernet network.
IEEE 802.3af and PoE standard compliance & IEEE 802.3at and PoE+ standard compliance
Power failure alarm by relay output
Supports store-and-forward mode and pass-through mode -40 to 75°C operating temperature range (-T model)
Redundant dual dc power
