Metz Connect Ethernet Connector Male, Cable, Cat6a Shielded 1 Port
- RS Stock No.:
- 283-5363
- Distrelec Article No.:
- 300-74-177
- Mfr. Part No.:
- 130E405032-E
- Brand:
- Metz Connect
Subtotal (1 unit)*
£19.35
(exc. VAT)
£23.22
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 75 unit(s) ready to ship
- Plus 278 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £19.35 |
*price indicative
- RS Stock No.:
- 283-5363
- Distrelec Article No.:
- 300-74-177
- Mfr. Part No.:
- 130E405032-E
- Brand:
- Metz Connect
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Metz Connect | |
| Product Type | Ethernet Connector | |
| Ethernet Connector Type | RJ45 | |
| LAN Category | Cat6a | |
| Mount Type | Cable | |
| Number of Ports | 1 | |
| Connector Gender | Male | |
| Connector Type | Plug | |
| Shield Type | Shielded | |
| IP Rating | IP20 | |
| Termination Type | IDC | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Width | 13.8mm | |
| Hazardous Area Certification | No | |
| Length | 49.8mm | |
| Standards/Approvals | TIA/EIA 568-C, ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09 | |
| Contact Material | Cusn (Tin Bronze) | |
| Contact Plating | Gold Plated Nickel | |
| Select all | ||
|---|---|---|
Brand Metz Connect | ||
Product Type Ethernet Connector | ||
Ethernet Connector Type RJ45 | ||
LAN Category Cat6a | ||
Mount Type Cable | ||
Number of Ports 1 | ||
Connector Gender Male | ||
Connector Type Plug | ||
Shield Type Shielded | ||
IP Rating IP20 | ||
Termination Type IDC | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Width 13.8mm | ||
Hazardous Area Certification No | ||
Length 49.8mm | ||
Standards/Approvals TIA/EIA 568-C, ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09 | ||
Contact Material Cusn (Tin Bronze) | ||
Contact Plating Gold Plated Nickel | ||
- COO (Country of Origin):
- DE

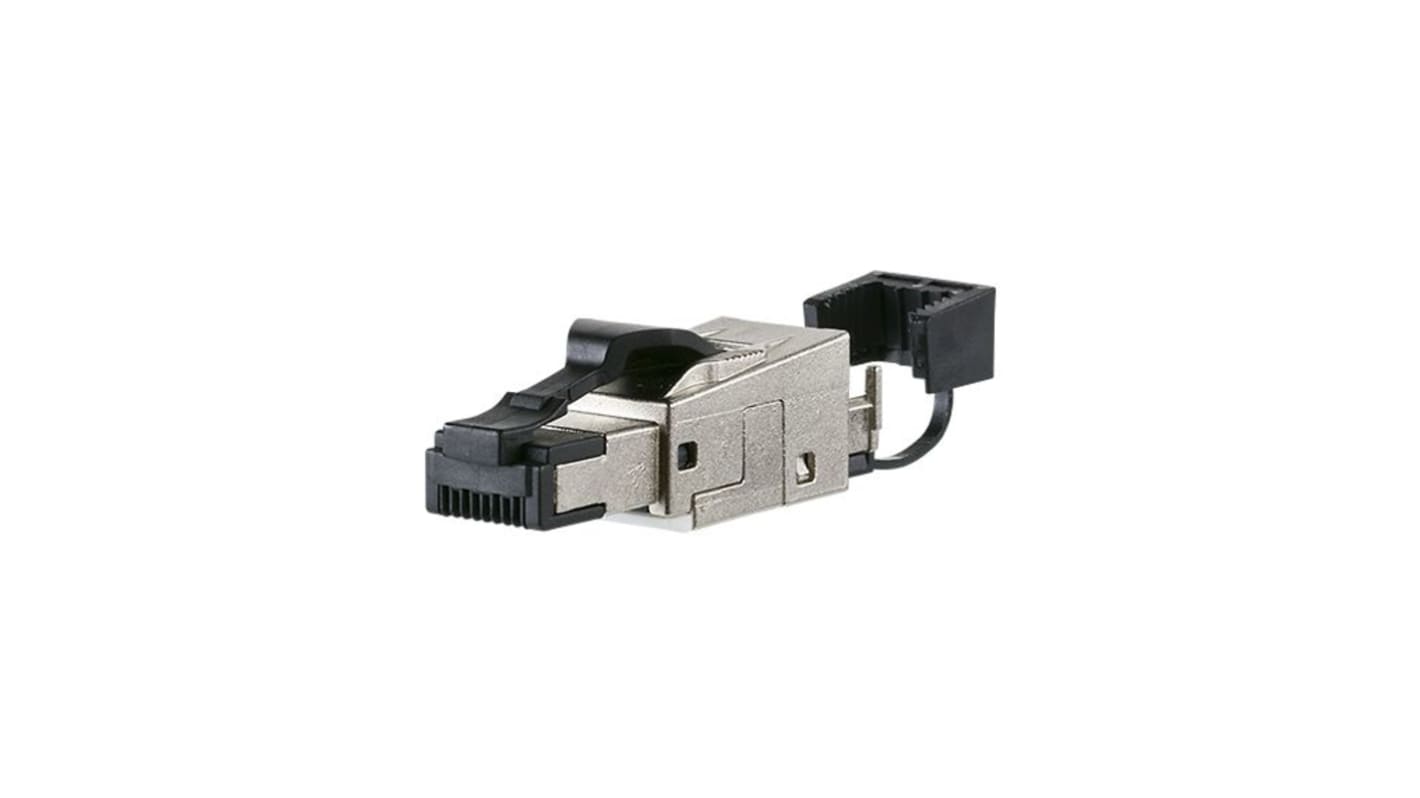

The Cat.6 class E RJ45 field plug pro is a fully shielded and multi-port capable plug suitable for 10 GBit Ethernet, Remote Powering, and HDBaseT applications. With easy assembly and connection without special tools, this plug is designed for industrial use with a zinc die-cast housing and strain relief by latching clip.
Straight cable feed for easy installation
Multi-port capability for versatile use
Compatible with stranded and solid wire types for flexibility
Transmission characteristics comply with Cat.6 standards
Suitable for 10 GBit Ethernet, Remote Powering, and HDBaseT applications
Zinc die-cast housing for industrial use and durability
Strain relief by latching clip for secure connections
