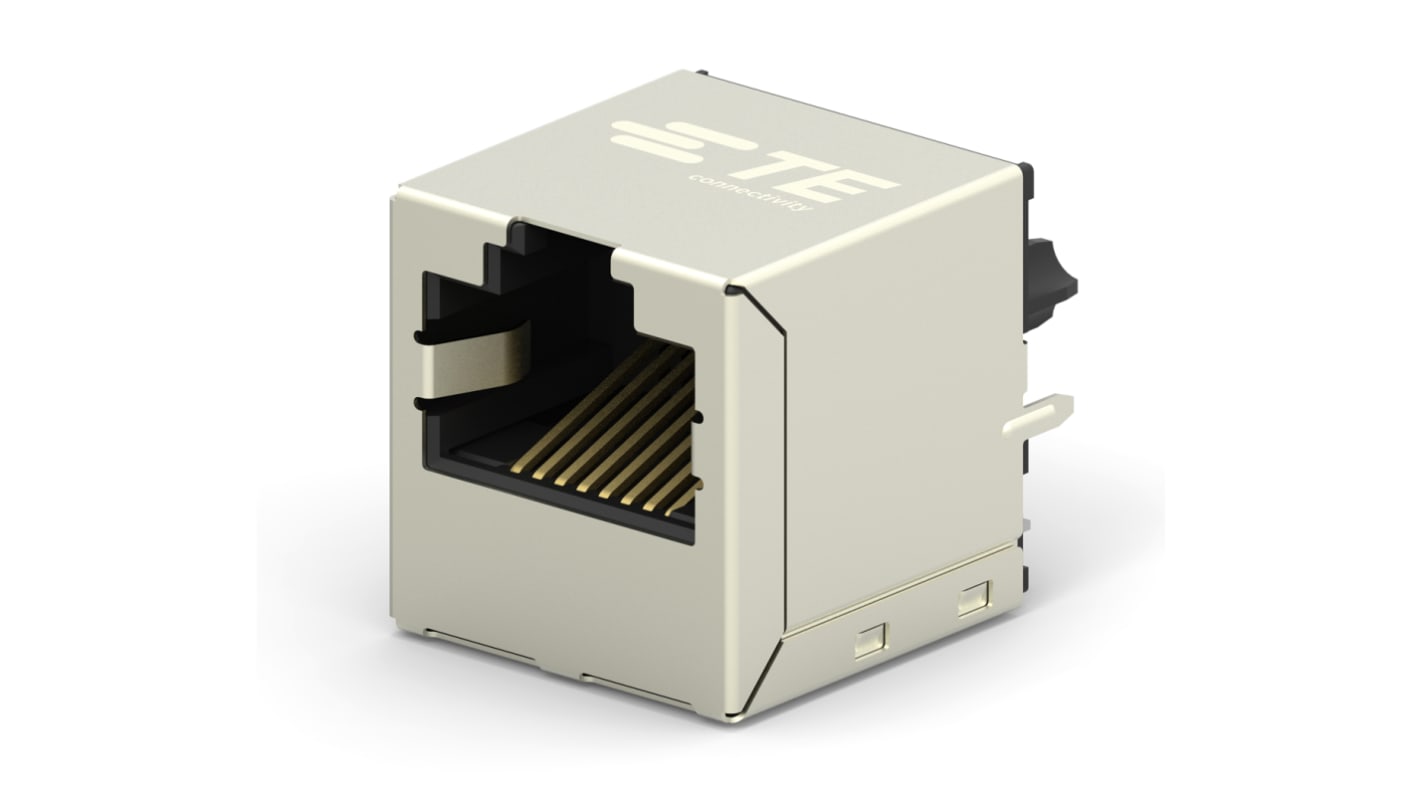

TE Connectivity 2301995 Series RJ45 Connector Female, PCB, Cat6 Nickel Plated Brass Shield Vertical 2 Port 8 Way
- RS Stock No.:
- 144-3285
- Mfr. Part No.:
- 2301995-2
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 reel of 80 units)*
£408.88
(exc. VAT)
£490.64
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Reel* |
|---|---|---|
| 80 - 80 | £5.111 | £408.88 |
| 160 + | £4.856 | £388.48 |
*price indicative
- RS Stock No.:
- 144-3285
- Mfr. Part No.:
- 2301995-2
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | RJ45 Connector | |
| Ethernet Connector Type | RJ45 | |
| LAN Category | Cat6 | |
| Number of Ports | 2 | |
| Mount Type | PCB | |
| Number of Ways | 8 | |
| Connector Type | Jack | |
| Connector Gender | Female | |
| Shield Type | Nickel Plated Brass | |
| Magnetic | Yes | |
| Orientation | Vertical | |
| IP Rating | IP20 | |
| LED | No | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Series | 2301995 | |
| Width | 16.7mm | |
| Hazardous Area Certification | NO | |
| Standards/Approvals | No | |
| Length | 20.07mm | |
| Depth | 16.9mm | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold over Nickel | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type RJ45 Connector | ||
Ethernet Connector Type RJ45 | ||
LAN Category Cat6 | ||
Number of Ports 2 | ||
Mount Type PCB | ||
Number of Ways 8 | ||
Connector Type Jack | ||
Connector Gender Female | ||
Shield Type Nickel Plated Brass | ||
Magnetic Yes | ||
Orientation Vertical | ||
IP Rating IP20 | ||
LED No | ||
Termination Type Solder | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Series 2301995 | ||
Width 16.7mm | ||
Hazardous Area Certification NO | ||
Standards/Approvals No | ||
Length 20.07mm | ||
Depth 16.9mm | ||
Contact Material Copper Alloy | ||
Contact Plating Gold over Nickel | ||
TE Connectivity Cat6 RJ45 Vertical Jacks With Intergrated Magnitics
A range of industrial RJ45 jacks from TE Connectivity. The PCB mounting vertical jacks feature integrated magnetics providing enhanced EMI shielding against noise and interference supporting more reliable connections. With their extended temperature range improved corrosion resistance, these robust RJ45 jacks are Ideal for applications in the harshest of environments. This series of Industrial modular jacks are available with data transmission rates of 10/100 Base –T or 1 GB and LED status indicator options. All models are highly reliable and excellent quality.
Features & Benefits
Thicker gold plating improving corrosion resistance;Extended temperature range -40°C to +85°C;Enhanced EMI protection;Minimum product life requirement of 10 years;260°C reflow Pin in Paste soldering;Smaller PCB footprint, supporting greater capacity and performance
Applications
Routers;Hubs;PLC’S;Switches;Wireless access points;All industrial applications with RJ45 connectivity;All industrial applications requiring Ethernet
