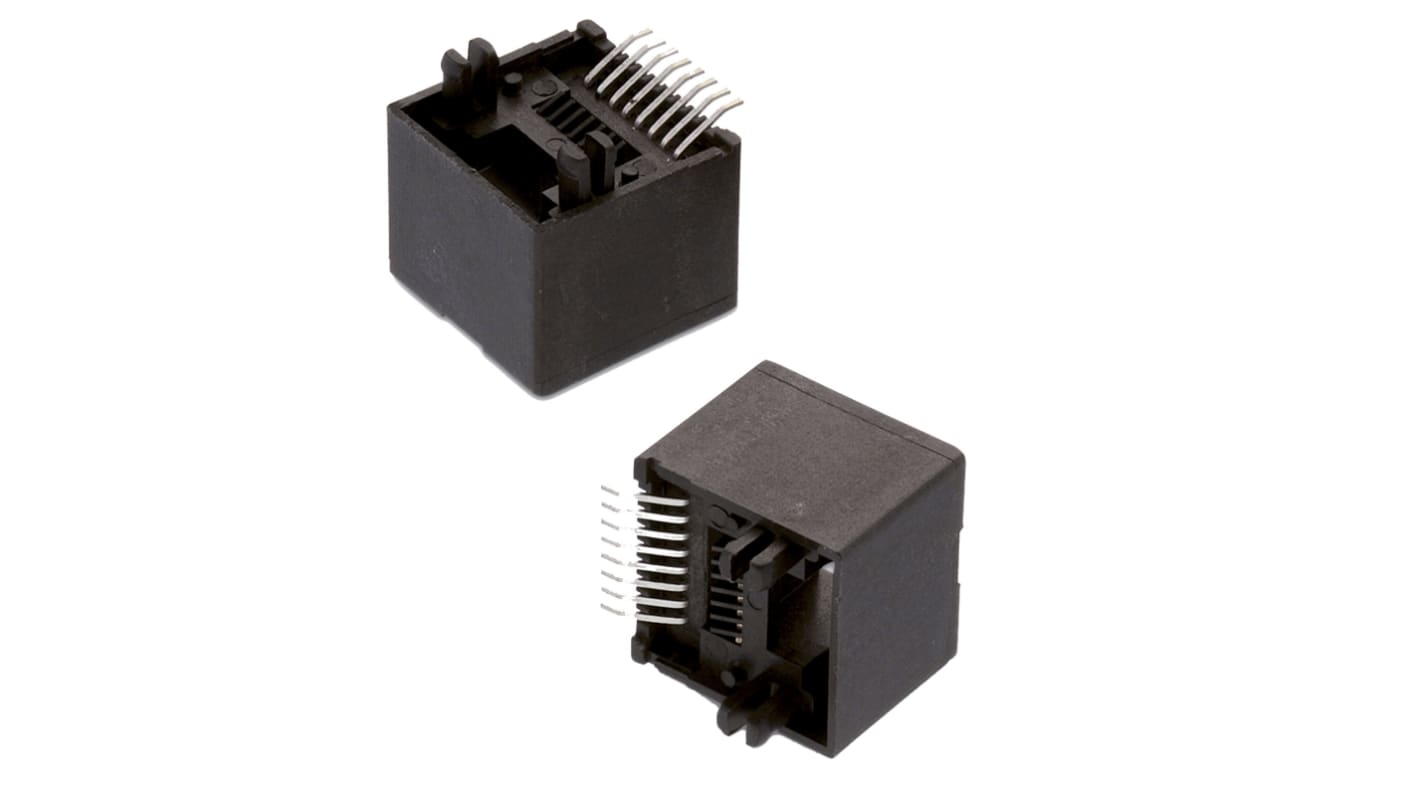

Wurth Elektronik WR-MJ Series RJ45 Connector Female, Surface, Cat3 Nickel Plated Brass Shield Vertical 1 Port 8 Way
- RS Stock No.:
- 162-2161
- Mfr. Part No.:
- 634008138121
- Brand:
- Wurth Elektronik
Subtotal (1 unit)*
£2.77
(exc. VAT)
£3.32
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 15 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £2.77 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Tray of 80)
£179.52
(exc. VAT)
£215.42
(inc. VAT)
- RS Stock No.:
- 162-2161
- Mfr. Part No.:
- 634008138121
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Ethernet Connector Type | RJ45 | |
| Product Type | RJ45 Connector | |
| LAN Category | Cat3 | |
| Mount Type | Surface | |
| Number of Ports | 1 | |
| Number of Ways | 8 | |
| Connector Gender | Female | |
| Connector Type | Modular Jack | |
| Shield Type | Nickel Plated Brass | |
| Orientation | Vertical | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 85°C | |
| Depth | 12.7mm | |
| Standards/Approvals | No | |
| Hazardous Area Certification | No | |
| Series | WR-MJ | |
| Width | 15.15mm | |
| Length | 15.24mm | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Ethernet Connector Type RJ45 | ||
Product Type RJ45 Connector | ||
LAN Category Cat3 | ||
Mount Type Surface | ||
Number of Ports 1 | ||
Number of Ways 8 | ||
Connector Gender Female | ||
Connector Type Modular Jack | ||
Shield Type Nickel Plated Brass | ||
Orientation Vertical | ||
Minimum Operating Temperature -40°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 85°C | ||
Depth 12.7mm | ||
Standards/Approvals No | ||
Hazardous Area Certification No | ||
Series WR-MJ | ||
Width 15.15mm | ||
Length 15.24mm | ||
Contact Material Copper Alloy | ||
Contact Plating Gold | ||
The Wurth Elektronik WR-MJ is a SMT mount, vertical modular jack TOP entry type plastic connector having 4P4C number of pins and copper alloy contact material. It has withstanding voltage of 1000V AC, working voltage of 120V AC and contact resistance of 20 mΩ.
RoHS compliant
Operating temperature ranges between -40°C up to +85°C
500 mating cycles
