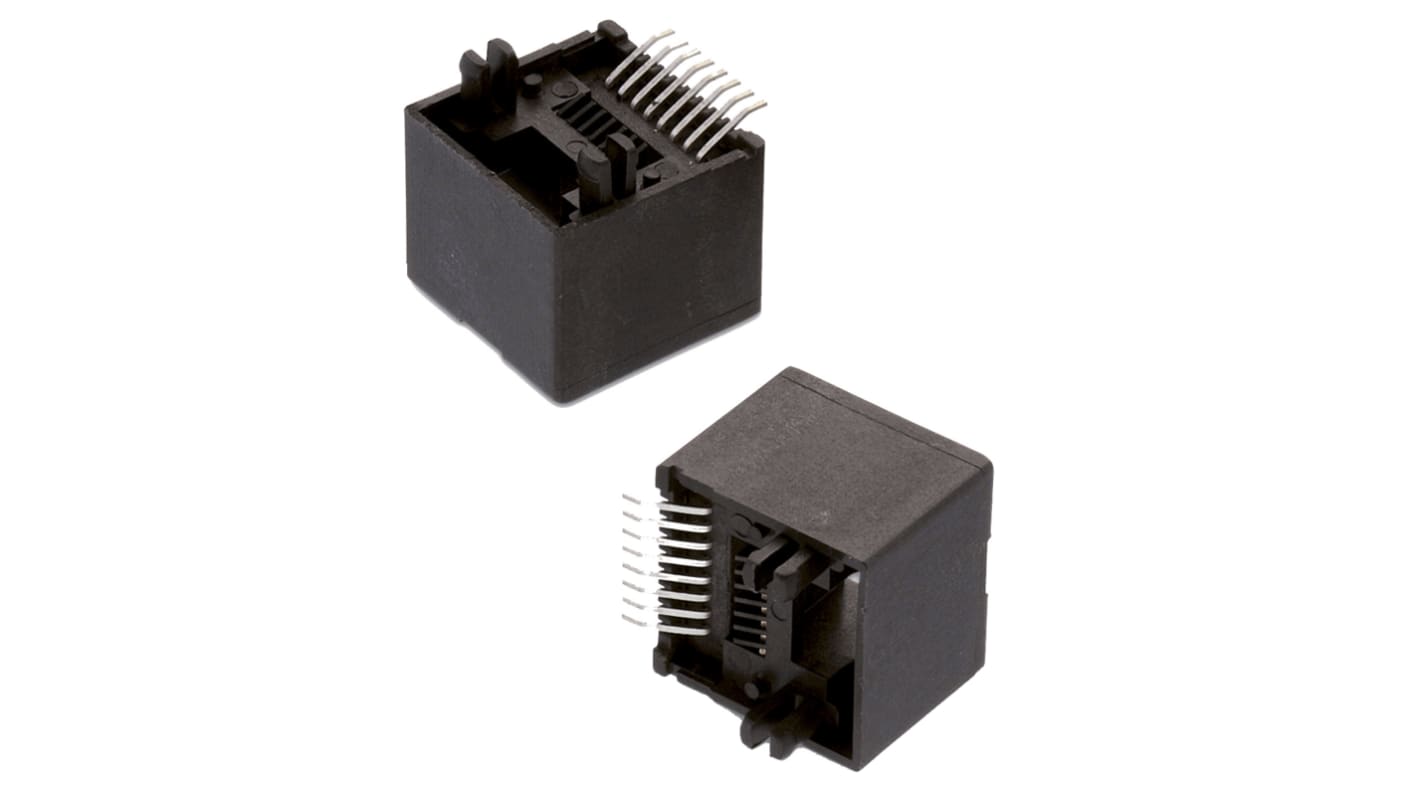

Wurth Elektronik WR-MJ Series RJ45 Connector Female, Surface, Cat3 Nickel Plated Brass Shield Vertical 1 Port 8 Way
- RS Stock No.:
- 162-1835
- Mfr. Part No.:
- 634008138121
- Brand:
- Wurth Elektronik
Subtotal (80 units, in trays of 80)*
£179.52
(exc. VAT)
£215.44
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 21 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
|---|---|---|
| 80 + | £2.244 | £179.52 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£2.77
(exc. VAT)
£3.32
(inc. VAT)
- RS Stock No.:
- 162-1835
- Mfr. Part No.:
- 634008138121
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Product Type | RJ45 Connector | |
| Ethernet Connector Type | RJ45 | |
| LAN Category | Cat3 | |
| Number of Ports | 1 | |
| Mount Type | Surface | |
| Number of Ways | 8 | |
| Connector Gender | Female | |
| Connector Type | Modular Jack | |
| Shield Type | Nickel Plated Brass | |
| Orientation | Vertical | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 85°C | |
| Series | WR-MJ | |
| Depth | 12.7mm | |
| Length | 15.24mm | |
| Hazardous Area Certification | No | |
| Standards/Approvals | No | |
| Width | 15.15mm | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Product Type RJ45 Connector | ||
Ethernet Connector Type RJ45 | ||
LAN Category Cat3 | ||
Number of Ports 1 | ||
Mount Type Surface | ||
Number of Ways 8 | ||
Connector Gender Female | ||
Connector Type Modular Jack | ||
Shield Type Nickel Plated Brass | ||
Orientation Vertical | ||
Minimum Operating Temperature -40°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 85°C | ||
Series WR-MJ | ||
Depth 12.7mm | ||
Length 15.24mm | ||
Hazardous Area Certification No | ||
Standards/Approvals No | ||
Width 15.15mm | ||
Contact Material Copper Alloy | ||
Contact Plating Gold | ||
The Wurth Elektronik WR-MJ is a SMT mount, vertical modular jack TOP entry type plastic connector having 4P4C number of pins and copper alloy contact material. It has withstanding voltage of 1000V AC, working voltage of 120V AC and contact resistance of 20 mΩ.
RoHS compliant
Operating temperature ranges between -40°C up to +85°C
500 mating cycles
