TE Connectivity 2301994 Series RJ45 Connector Male, PCB, Cat5e Nickel Plated Brass Shield Right Angle 2 Port 8 Way
- RS Stock No.:
- 470-716
- Distrelec Article No.:
- 304-63-441
- Mfr. Part No.:
- 2301994-6
- Brand:
- TE Connectivity
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 470-716
- Distrelec Article No.:
- 304-63-441
- Mfr. Part No.:
- 2301994-6
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Ethernet Connector Type | RJ45 | |
| Product Type | RJ45 Connector | |
| LAN Category | Cat5e | |
| Number of Ports | 2 | |
| Mount Type | PCB | |
| Number of Ways | 8 | |
| Connector Type | RJ45 | |
| Connector Gender | Male | |
| Shield Type | Nickel Plated Brass | |
| Orientation | Right Angle | |
| Magnetic | Yes | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 85°C | |
| Series | 2301994 | |
| Hazardous Area Certification | NO | |
| Standards/Approvals | UL 94 V-0 | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Ethernet Connector Type RJ45 | ||
Product Type RJ45 Connector | ||
LAN Category Cat5e | ||
Number of Ports 2 | ||
Mount Type PCB | ||
Number of Ways 8 | ||
Connector Type RJ45 | ||
Connector Gender Male | ||
Shield Type Nickel Plated Brass | ||
Orientation Right Angle | ||
Magnetic Yes | ||
Minimum Operating Temperature -40°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 85°C | ||
Series 2301994 | ||
Hazardous Area Certification NO | ||
Standards/Approvals UL 94 V-0 | ||
Contact Material Copper Alloy | ||
Contact Plating Gold | ||
- COO (Country of Origin):
- CN

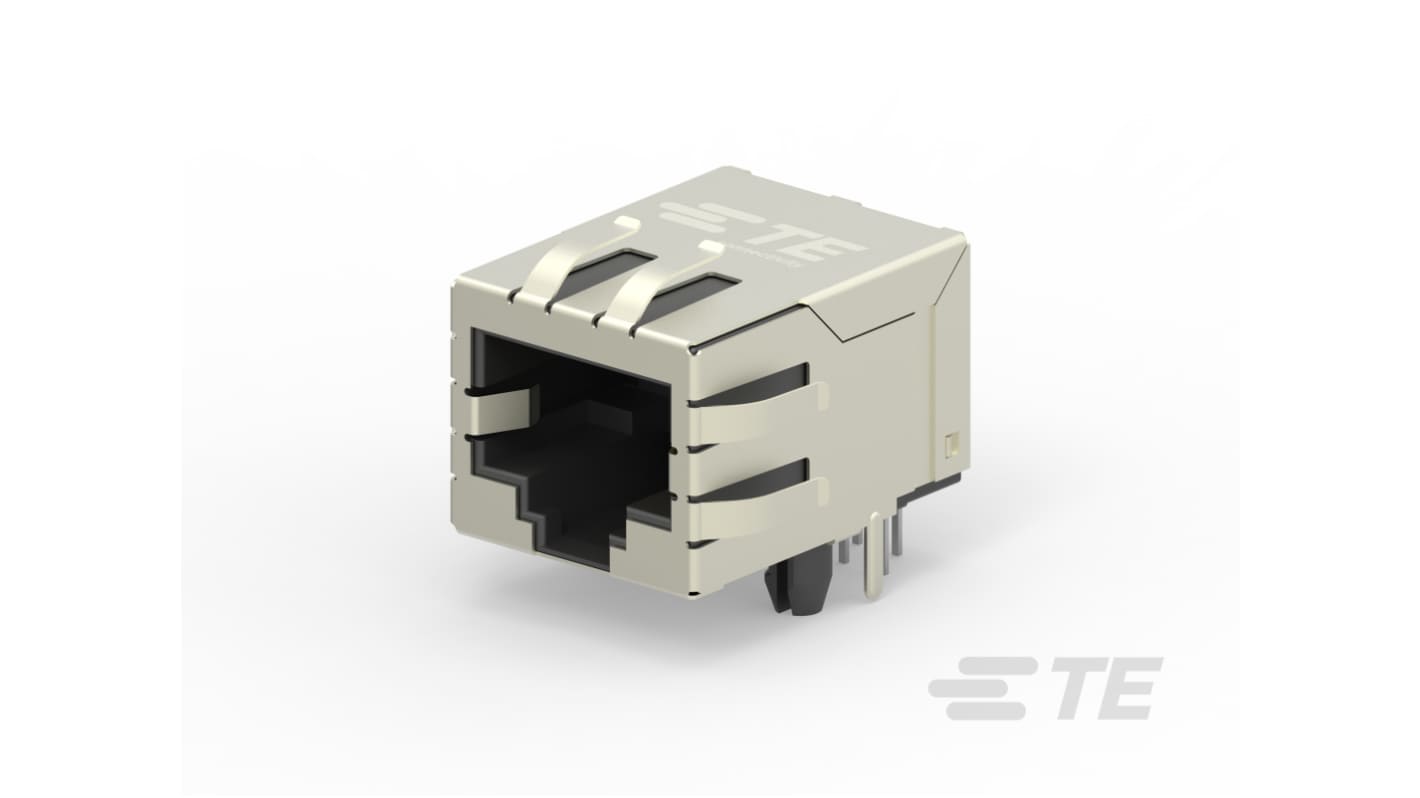

The TE Connectivity RJ45 connector with integrated magnetics sets a new standard for your networking needs. Hailing from the trusted Industrial RJ45 Mag Jack series, it is engineered for robust performance in industrial settings. Ideal for applications requiring seamless connectivity, this single-port jack supports a Cat 5e performance category, allowing for data rates of up to 1000 Mb/s. Its shielded design ensures protection against interference, ensuring reliable communication even in challenging environments. The connector's compact design and right-angle PCB mount orientation make it suitable for space-constrained installations, whilst its durable construction promises longevity. Built for efficiency and consistency, this product is a reliable choice for professionals seeking quality in their networking solutions.
Robust construction guarantees long lasting performance in industrial applications
Shielded design provides protection against electromagnetic interference
Right angle PCB mount orientation optimises space in confined installations
Single port configuration simplifies installation and reduces complexity
Easy integration with a variety of modular jacks and plugs
Versatile grounding options enhance the adaptability to different applications
