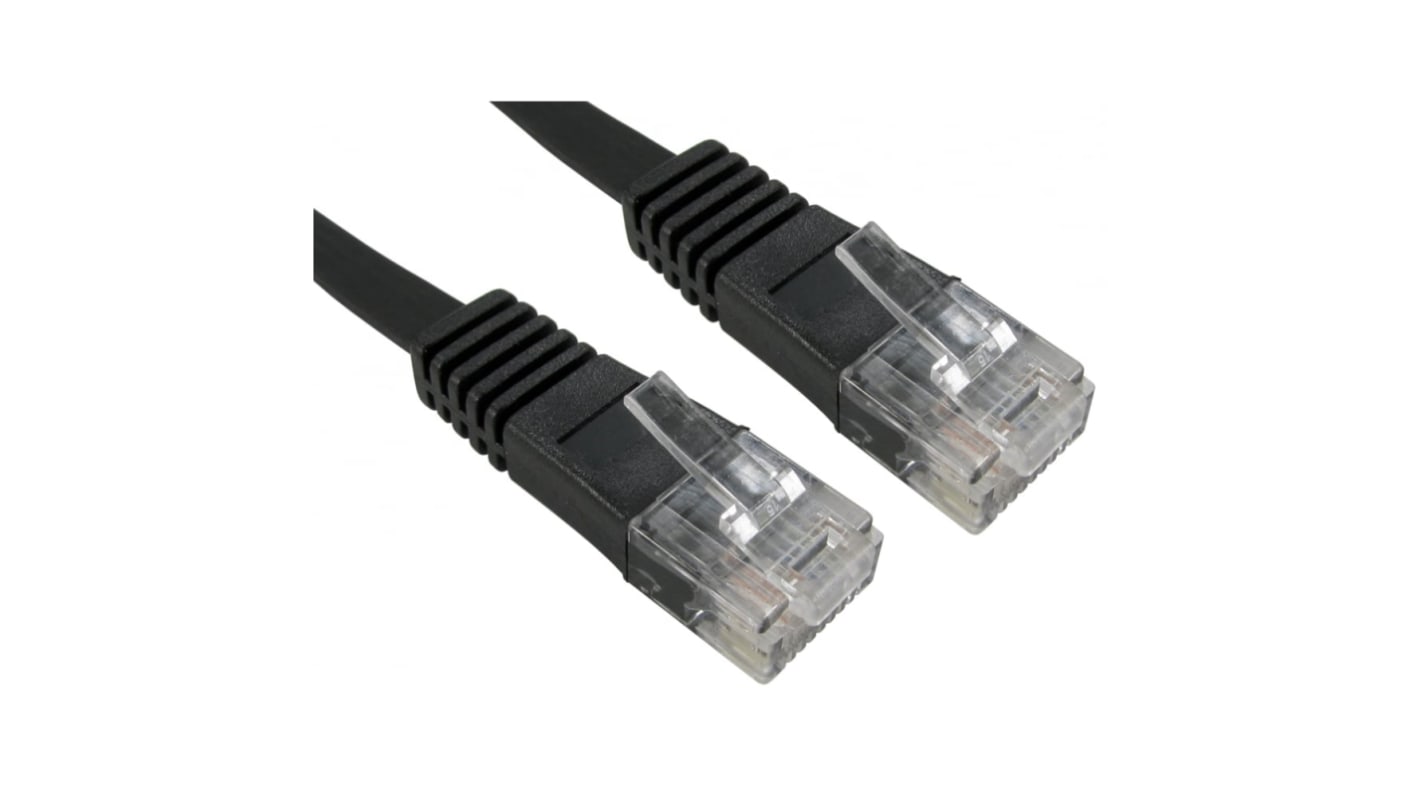

RS PRO, 30m Cat5e, Black RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath

RS Stock No.:: 286-3531
Brand:: RS PRO

RS PRO, 30m Cat5e, Black RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath

Subtotal (1 unit)*

£30.80

(exc. VAT)

£36.96

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

Shipping from 26 February 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£30.80

*price indicative

RS PRO Cable Ties

From electrical to industrial applications, RS Pro offers a wide selection of cable ties to suit every need. Durable, reliable, and available in multiple sizes and materials, trusted by professionals across industries.

Shop here

RS Stock No.:: 286-3531
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	LAN Category	Cat5e
	Length	30m
	Terminated/Unterminated	Terminated
	Shield Type	UTP
	Connector 1	RJ45
	Connector 1 Gender	Male
	Connector 1 Number of Contacts	8
	Connector 1 Orientation	Straight
	Connector 2 Gender	Male
	Connector 2	RJ45
	Connector 2 Number of Contacts	8
	Connector 2 Orientation	Straight
	Shielded/Unshielded	Unshielded
	Sheath Colour	Black
	Outer Sheath Material	PVC
	Wiring Configuration	Straight Through
	Fire Behaviour	CM Rated
	Core Strands	7/0.10
	Standards Met	C (UL), CM LSOH, CSA LL2047
	Cable Shape	Round
	Outer Diameter	5.4mm
	Current Rating	3.5A
	American Wire Gauge	30AWG
	Number of Strands	8
	Voltage Rating	300V
	Cross Sectional Area	0.2112mm²
	Capacitance	≤5.6nFnF/100m
	Conductor Strand Type	Stranded

	Select all
	Brand RS PRO
	LAN Category Cat5e
	Length 30m
	Terminated/Unterminated Terminated
	Shield Type UTP
	Connector 1 RJ45
	Connector 1 Gender Male
	Connector 1 Number of Contacts 8
	Connector 1 Orientation Straight
	Connector 2 Gender Male
	Connector 2 RJ45
	Connector 2 Number of Contacts 8
	Connector 2 Orientation Straight
	Shielded/Unshielded Unshielded
	Sheath Colour Black
	Outer Sheath Material PVC
	Wiring Configuration Straight Through
	Fire Behaviour CM Rated
	Core Strands 7/0.10
	Standards Met C (UL), CM LSOH, CSA LL2047
	Cable Shape Round
	Outer Diameter 5.4mm
	Current Rating 3.5A
	American Wire Gauge 30AWG
	Number of Strands 8
	Voltage Rating 300V
	Cross Sectional Area 0.2112mm²
	Capacitance ≤5.6nFnF/100m
	Conductor Strand Type Stranded

COO (Country of Origin):: CN

RS PRO Ethernet Cable, Cat5e Flat Patch Cable

This RS PRO Ethernet Cable is a high-quality Cat5e flat patch cable designed for reliable and efficient data transmission. Ideal for use in computer networks, it offers a practical solution for installations under carpets and flooring, ensuring minimal disruption and maximum performance.

Features and Benefits

UTP (Unshielded Twisted Pair) design ensures effective noise rejection
Cat5e classification supports high-speed data transfer
Moulded connectors provide durability and secure connections
CSA LL2047 UTP CAT.5 Enhanced FT4 rating ensures compliance with safety standards
C(UL) CM LSOH certification for low smoke and halogen-free performance
30 AWG bare copper cores for optimal conductivity
1.66mm thickness for easy installation in tight spaces

Applications

Computer networks
Ethernet connections
Office and home networking

Additional Information

Standards Met: C (UL)

CM LSOH

CSA LL2047
Connector Type: RJ45, Male to Male
Length: 30 m
