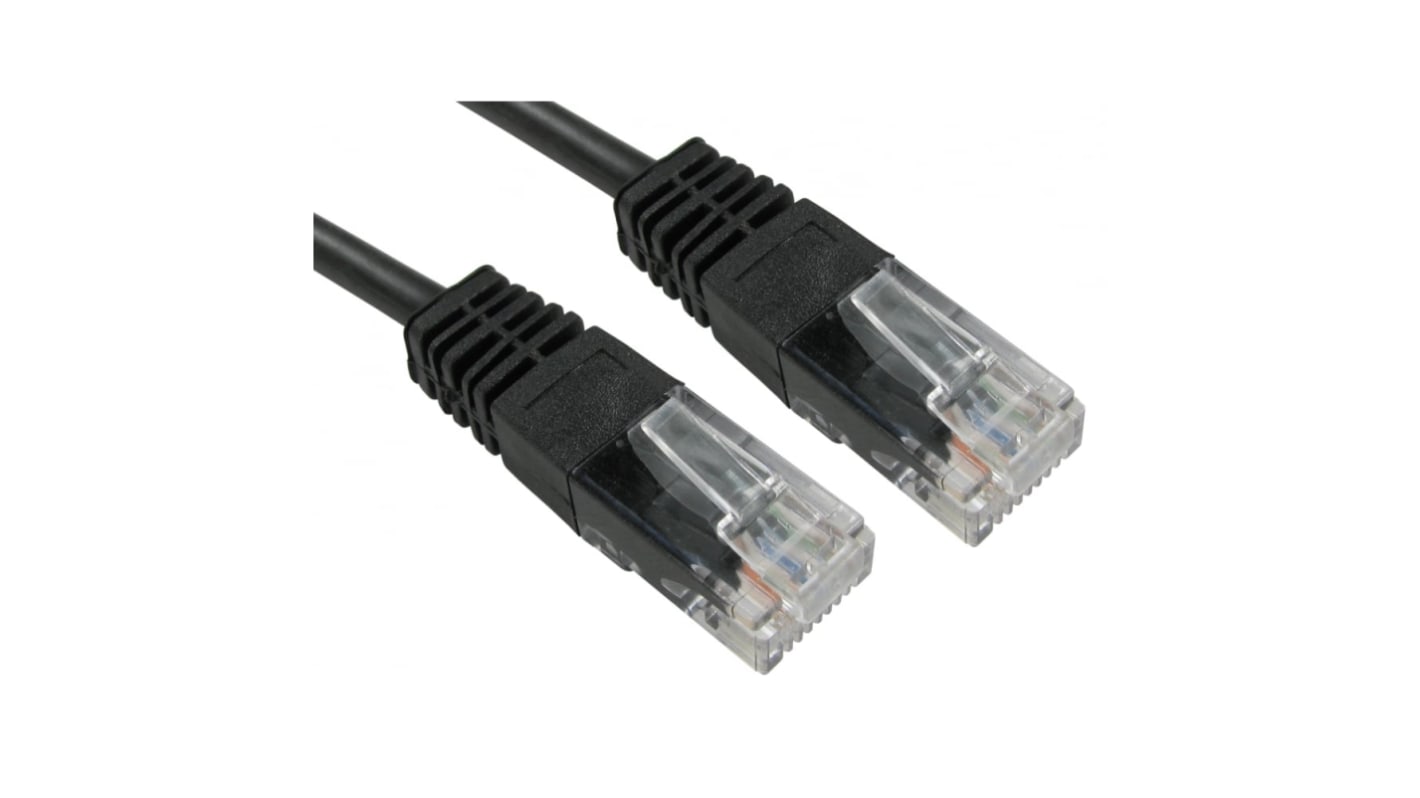

RS PRO, 25m Cat5e, Black RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath
- RS Stock No.:
- 286-3683
- Brand:
- RS PRO
Subtotal (1 unit)*
£18.26
(exc. VAT)
£21.91
(inc. VAT)
FREE delivery for orders over £50.00
- 1 unit(s) ready to ship
Units | Per unit |
---|---|
1 + | £18.26 |
*price indicative
- RS Stock No.:
- 286-3683
- Brand:
- RS PRO
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
LAN Category | Cat5e | |
Length | 25m | |
Terminated/Unterminated | Terminated | |
Shield Type | UTP | |
Connector 1 | RJ45 | |
Connector 1 Number of Contacts | 8 | |
Connector 1 Orientation | Straight | |
Connector 1 Gender | Male | |
Connector 2 Gender | Male | |
Connector 2 Number of Contacts | 8 | |
Connector 2 | RJ45 | |
Connector 2 Orientation | Straight | |
Shielded/Unshielded | Unshielded | |
Outer Sheath Material | PVC | |
Sheath Colour | Black | |
Wiring Configuration | Straight Through | |
Core Strands | 7/0.15 | |
Fire Behaviour | CM Rated | |
Voltage Rating | 80V | |
Conductor Strand Type | Stranded | |
Number of Strands | 8 | |
Capacitance | 5.6nF/100m | |
Cross Sectional Area | 0.126 to 0.158mm² | |
Current Rating | 960mA | |
Standards Met | C (UL), CM (UL), ISO/IEC 11801, TIA/EIA 568B.2 | |
Cable Shape | Round | |
Outer Diameter | 4.6mm | |
American Wire Gauge | 26AWG | |
Select all | ||
---|---|---|
Brand RS PRO | ||
LAN Category Cat5e | ||
Length 25m | ||
Terminated/Unterminated Terminated | ||
Shield Type UTP | ||
Connector 1 RJ45 | ||
Connector 1 Number of Contacts 8 | ||
Connector 1 Orientation Straight | ||
Connector 1 Gender Male | ||
Connector 2 Gender Male | ||
Connector 2 Number of Contacts 8 | ||
Connector 2 RJ45 | ||
Connector 2 Orientation Straight | ||
Shielded/Unshielded Unshielded | ||
Outer Sheath Material PVC | ||
Sheath Colour Black | ||
Wiring Configuration Straight Through | ||
Core Strands 7/0.15 | ||
Fire Behaviour CM Rated | ||
Voltage Rating 80V | ||
Conductor Strand Type Stranded | ||
Number of Strands 8 | ||
Capacitance 5.6nF/100m | ||
Cross Sectional Area 0.126 to 0.158mm² | ||
Current Rating 960mA | ||
Standards Met C (UL), CM (UL), ISO/IEC 11801, TIA/EIA 568B.2 | ||
Cable Shape Round | ||
Outer Diameter 4.6mm | ||
American Wire Gauge 26AWG | ||
- COO (Country of Origin):
- CN
RS PRO Ethernet Cable, Cat5e Patch Cable
Features and Benefits
Cat5e standard supports data transfer speeds up to 1 Gbps, ideal for fast network connections
Moulded connectors provide durability and strain relief, extending cable lifespan
26 AWG bare copper cores offer robust performance and conductivity
CM (UL) C(UL) 4P rating ensures compliance with safety standards
ISO/IEC 11801 and TIA/EIA 568B.2 standards met for reliable network performance
PoE compatible, allowing power and data transmission over a single cable
Applications
Ethernet connections
Home and office networking
Additional Information
Outer Sheath Material: PVC
Wiring Configuration: Straight Through
Length: 25 m
Connector Type: RJ45 Male to Male
