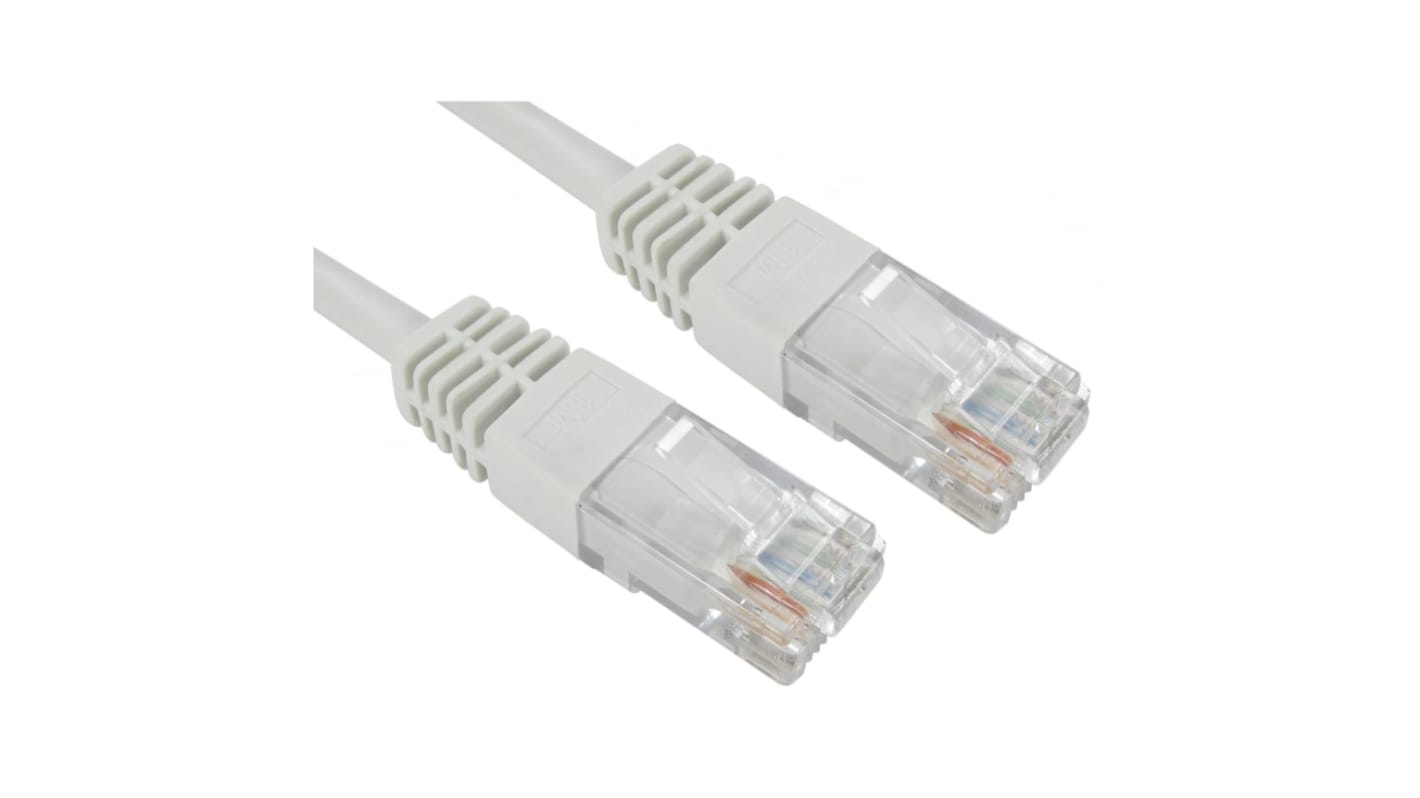

RS PRO, 30m Cat5e, White RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath
- RS Stock No.:
- 286-3688
- Brand:
- RS PRO
Subtotal (1 unit)*
£20.84
(exc. VAT)
£25.01
(inc. VAT)
FREE delivery for orders over £50.00
- Plus 54 unit(s) shipping from 06 October 2025
- Plus 1 unit(s) shipping from 06 October 2025
Units | Per unit |
---|---|
1 + | £20.84 |
*price indicative
- RS Stock No.:
- 286-3688
- Brand:
- RS PRO
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Length | 30m | |
LAN Category | Cat5e | |
Terminated/Unterminated | Terminated | |
Shield Type | UTP | |
Connector 1 Gender | Male | |
Connector 1 Number of Contacts | 8 | |
Connector 1 Orientation | Straight | |
Connector 1 | RJ45 | |
Connector 2 Number of Contacts | 8 | |
Connector 2 Gender | Male | |
Connector 2 | RJ45 | |
Connector 2 Orientation | Straight | |
Shielded/Unshielded | Unshielded | |
Sheath Colour | White | |
Outer Sheath Material | PVC | |
Wiring Configuration | Straight Through | |
Core Strands | 7/0.15 | |
Fire Behaviour | CM Rated | |
Standards Met | C (UL), CM (UL), ISO/IEC 11801, TIA/EIA 568B.2 | |
Cross Sectional Area | 0.126 to 0.158mm² | |
Current Rating | 960mA | |
Outer Diameter | 4.6mm | |
Voltage Rating | 80V | |
American Wire Gauge | 26AWG | |
Number of Strands | 8 | |
Conductor Strand Type | Stranded | |
Capacitance | 5.6nF/100m | |
Cable Shape | Round | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Length 30m | ||
LAN Category Cat5e | ||
Terminated/Unterminated Terminated | ||
Shield Type UTP | ||
Connector 1 Gender Male | ||
Connector 1 Number of Contacts 8 | ||
Connector 1 Orientation Straight | ||
Connector 1 RJ45 | ||
Connector 2 Number of Contacts 8 | ||
Connector 2 Gender Male | ||
Connector 2 RJ45 | ||
Connector 2 Orientation Straight | ||
Shielded/Unshielded Unshielded | ||
Sheath Colour White | ||
Outer Sheath Material PVC | ||
Wiring Configuration Straight Through | ||
Core Strands 7/0.15 | ||
Fire Behaviour CM Rated | ||
Standards Met C (UL), CM (UL), ISO/IEC 11801, TIA/EIA 568B.2 | ||
Cross Sectional Area 0.126 to 0.158mm² | ||
Current Rating 960mA | ||
Outer Diameter 4.6mm | ||
Voltage Rating 80V | ||
American Wire Gauge 26AWG | ||
Number of Strands 8 | ||
Conductor Strand Type Stranded | ||
Capacitance 5.6nF/100m | ||
Cable Shape Round | ||
- COO (Country of Origin):
- CN
RS PRO Ethernet Cable, Cat5e Patch Cable
Features and Benefits
Cat5e standard supports data transfer speeds up to 1 Gbps, making it suitable for fast network connections
Moulded connectors provide durability and strain relief, extending the cable's lifespan
26 AWG bare copper cores offer robust conductivity and performance
CM (UL) C(UL) 4P rating ensures compliance with safety standards
ISO/IEC 11801 and TIA/EIA 568B.2 standards guarantee compatibility with global networking requirements
PoE (Power over Ethernet) compatible, allowing power and data transmission over a single cable
Applications
Ethernet connections
Residential and commercial networking
Data centres
Additional Information
Outer Sheath Material: PVC
Wiring Configuration: Straight Through
Fire Behaviour: CM Rated
Voltage Rating: 80 V
Length: 30 m
Connector Type: RJ45 Male to Male
