Werma Wall Mount Buzzer, 230 V ac, 100dB at 1 m, IP65, AC, 8-Tone
- RS Stock No.:
- 384-7997
- Mfr. Part No.:
- 110.000.68
- Brand:
- Werma
Subtotal (1 unit)*
£119.56
(exc. VAT)
£143.47
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 8 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £119.56 |
*price indicative
- RS Stock No.:
- 384-7997
- Mfr. Part No.:
- 110.000.68
- Brand:
- Werma
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Werma | |
Supply Voltage | 230 V ac | |
IP Rating | IP65 | |
Decibels at 1 Metre | 100dB | |
Current Type | AC | |
Number Of Tones | 8 | |
Housing Colour | Black | |
Mounting Style | Wall Mount | |
Diameter | 72 mm | |
Application Type | Buzzer | |
Minimum Decibel | 86dB | |
Maximum Decibel | 100dB | |
Maximum Temperature | +50°C | |
Tone Type | Multi-tone | |
Standards Met | CE Certified, cULus Listed, EAC, UKCA, WEE | |
Housing Material | ABS, Polycarbonate | |
Minimum Temperature | -20°C | |
Select all | ||
---|---|---|
Brand Werma | ||
Supply Voltage 230 V ac | ||
IP Rating IP65 | ||
Decibels at 1 Metre 100dB | ||
Current Type AC | ||
Number Of Tones 8 | ||
Housing Colour Black | ||
Mounting Style Wall Mount | ||
Diameter 72 mm | ||
Application Type Buzzer | ||
Minimum Decibel 86dB | ||
Maximum Decibel 100dB | ||
Maximum Temperature +50°C | ||
Tone Type Multi-tone | ||
Standards Met CE Certified, cULus Listed, EAC, UKCA, WEE | ||
Housing Material ABS, Polycarbonate | ||
Minimum Temperature -20°C | ||
- COO (Country of Origin):
- DE
Multi-Tone Electronic Buzzer 110
Designed for industrial use
Protection to IP65
Sound output 100dB at 1m
Switchable 8 tones
Tone Frequency 1.6kHz to 3.4kHz
Sweep/pulse 1Hz to 420Hz
Volume control

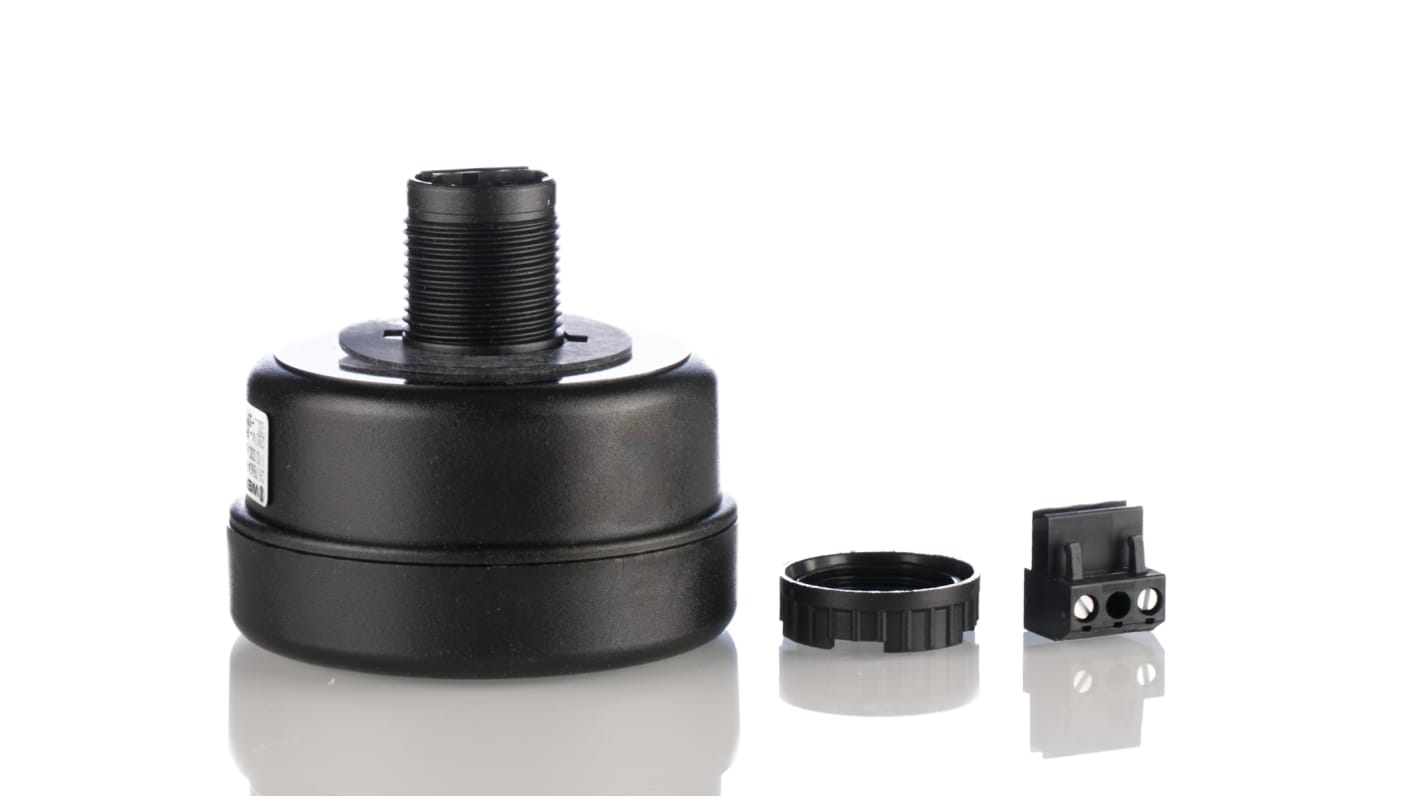

Supplied with screw terminal connector and sealing gasket
Vertical wall mounting bracket available separately
Housing material PC/ABS black
Front protrusion 39.6mm
Protection to IP65
Sound output 100dB at 1m
Switchable 8 tones
Tone Frequency 1.6kHz to 3.4kHz
Sweep/pulse 1Hz to 420Hz
Volume control
Supplied with screw terminal connector and sealing gasket
Vertical wall mounting bracket available separately
Housing material PC/ABS black
Front protrusion 39.6mm
Note
Tone setting and volume adjustment can only be achieved when unit is not fully installed. (Controls are mounted on the rear of the unit).
WERMA Multi-Tone Electronic Buzzer, 230V AC, 100dB - 110 Series - 110.000.68
Ensure the highest level of operational safety with this multi-tone buzzer from WERMA. It features a choice of eight different tones that vary in pitch and pulse length, so you can choose the setting that best suits your application. The buzzer has a loud maximum sound output of 100dB (decibels) so it's clearly heard, even in noisy working environments. Its low current consumption of 40mA makes the unit an energy-efficient choice. A strong plastic housing offers good protection against abrasion and knocks.
Features & Benefits
• IP65 (ingress protection) rating to keep the buzzer well-protected against dust and low-pressure water jets
• Easy-to-use connector plug for simple and quick installation
• Supplied with screw terminal connector and sealing gasket for convenient and fast assembly
• Easy-to-use connector plug for simple and quick installation
• Supplied with screw terminal connector and sealing gasket for convenient and fast assembly
Applications
• Industrial automation
• Automotive industry
• Oil and gas refineries
• Paper mills
• Automotive industry
• Oil and gas refineries
• Paper mills
Can you adjust the volume of this buzzer?
Yes, this buzzer has an adjustable volume, which lets you set it to the sound level you need. The volume controls are mounted on the rear of the unit, so you should set your sound output before completing your installation.
Approvals
UL; CE
