Werma Wall Mount Buzzer, 24 V ac/dc, 80dB at 1 m, IP65, AC, DC, Single-Tone
- RS Stock No.:
- 384-7919
- Mfr. Part No.:
- 109.010.75
- Brand:
- Werma
Subtotal (1 unit)*
£69.83
(exc. VAT)
£83.80
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 8 unit(s) ready to ship
- Plus 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £69.83 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£69.83
(exc. VAT)
£83.80
(inc. VAT)
- RS Stock No.:
- 384-7919
- Mfr. Part No.:
- 109.010.75
- Brand:
- Werma
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Werma | |
| Supply Voltage | 24 V ac/dc | |
| IP Rating | IP65 | |
| Decibels at 1 Metre | 80dB | |
| Current Type | AC, DC | |
| Number Of Tones | 1 | |
| Housing Colour | Black | |
| Mounting Style | Wall Mount | |
| Diameter | 52 mm | |
| Application Type | Buzzer | |
| Maximum Decibel | 80dB | |
| Housing Material | ABS, Polycarbonate | |
| Tone Type | Pulse | |
| Maximum Temperature | +50°C | |
| Minimum Temperature | -20°C | |
Select all | ||
|---|---|---|
Brand Werma | ||
Supply Voltage 24 V ac/dc | ||
IP Rating IP65 | ||
Decibels at 1 Metre 80dB | ||
Current Type AC, DC | ||
Number Of Tones 1 | ||
Housing Colour Black | ||
Mounting Style Wall Mount | ||
Diameter 52 mm | ||
Application Type Buzzer | ||
Maximum Decibel 80dB | ||
Housing Material ABS, Polycarbonate | ||
Tone Type Pulse | ||
Maximum Temperature +50°C | ||
Minimum Temperature -20°C | ||
- COO (Country of Origin):
- DE

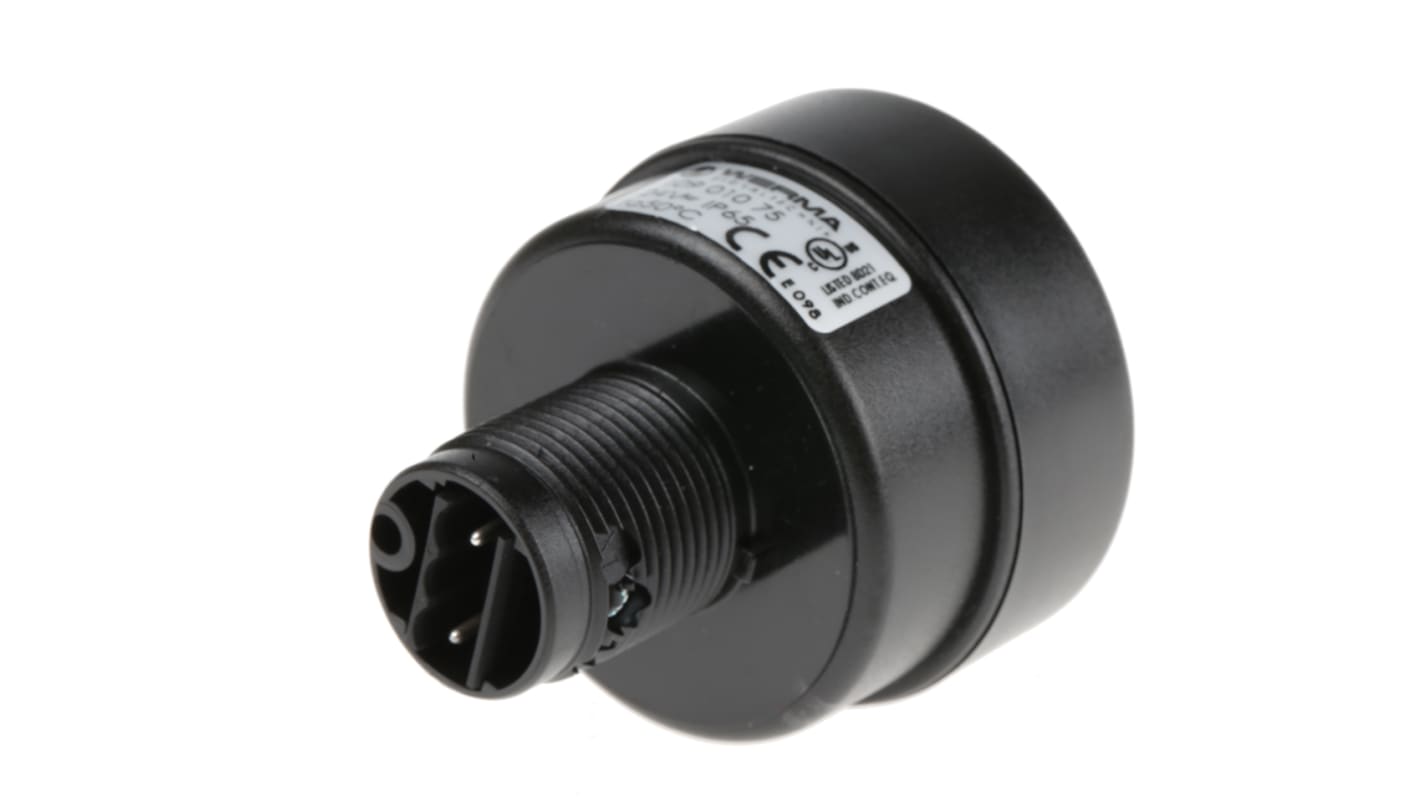

WERMA Pulse Tone Buzzer, 80dB, Wall Mount - 109 Series - 109.010.75
This single-tone buzzer from WERMA sends out an audible warning signal to draw the attention of people in the vicinity. It sounds a pulse tone at a loud 80dB to alert you that something has gone wrong with a process or system or when an environmental change triggers it. The compact black unit comes with a straightforward terminal screw connector, which lets you connect up your wires just with a screwdriver. It's suitable for through-hole mounting in your industrial setup.
Features & Benefits
• Operating temperature range of -20°C to +50°C, allowing use in both harsh indoor and outdoor settings
• 52mm diameter makes the unit compact and suitable for installation in tight spaces
• Supply voltage is 24V AC/DC for use in standard systems
• When correctly installed, the unit has an IP65 (ingress protection) rating, indicating it's protected from dust and water spray
• 52mm diameter makes the unit compact and suitable for installation in tight spaces
• Supply voltage is 24V AC/DC for use in standard systems
• When correctly installed, the unit has an IP65 (ingress protection) rating, indicating it's protected from dust and water spray
Applications
• Smoke alarms
• Entry and exit alerts on fire doors
• Entry and exit alerts on fire doors
How much current does a buzzer need?
The current requirement of a buzzer depends on what type it is. For example, magnetic buzzers use more power and will consume between 30 to 100mA, while piezo buzzers consume less than 30mA.
