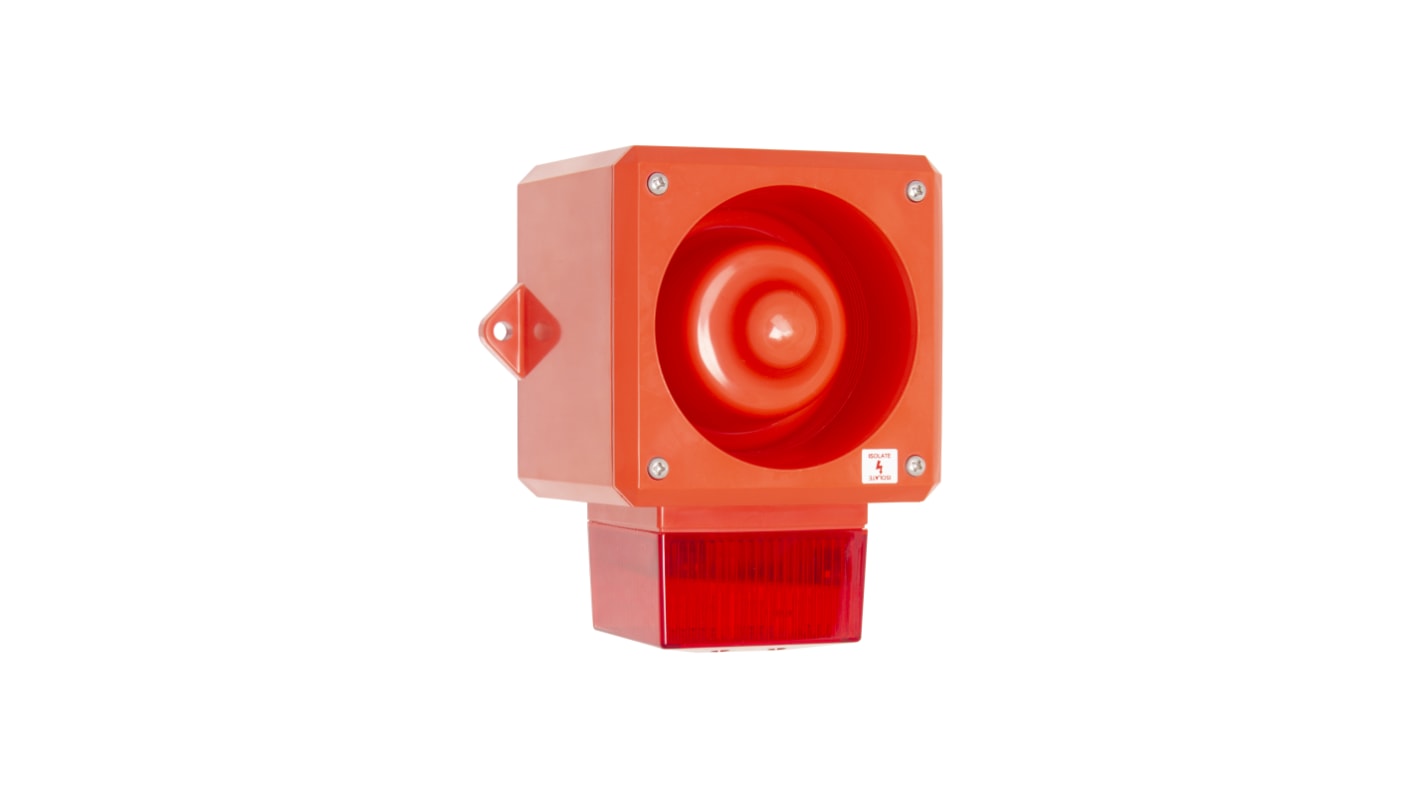

RS PRO Multi-Tone Alarm Sounder Surface, IP66, AC/DC 230V ac, 32-Tone 112 dB @ 1m
- RS Stock No.:
- 286-4201
- Brand:
- RS PRO
Subtotal (1 unit)*
£167.43
(exc. VAT)
£200.92
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 4 unit(s) shipping from 16 October 2026
- Plus 8 unit(s) shipping from 02 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £167.43 |
*price indicative
- RS Stock No.:
- 286-4201
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Multi-Tone Alarm Sounder | |
| Minimum Sound Level | 103dB | |
| IP Rating | IP66 | |
| Current Type | AC/DC | |
| Number of Tones | 32 | |
| Housing Colour | Red | |
| Mount Type | Surface | |
| Current Consumption | 100mA, 38mA | |
| Diameter | 169mm | |
| Maximum Supply Voltage | 230V ac | |
| Sound Level at 1m | 112dB | |
| Minimum Operating Temperature | -35°C | |
| Maximum Operating Temperature | 70°C | |
| Maximum Sound Level | 112dB | |
| Hazardous Area Certification | No | |
| Tone Type | 32 Selectable Tones | |
| Housing Material | Flame Retardant ABS Plastic | |
| Standards/Approvals | RoHS Compliant | |
| Base Width | 169mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Multi-Tone Alarm Sounder | ||
Minimum Sound Level 103dB | ||
IP Rating IP66 | ||
Current Type AC/DC | ||
Number of Tones 32 | ||
Housing Colour Red | ||
Mount Type Surface | ||
Current Consumption 100mA, 38mA | ||
Diameter 169mm | ||
Maximum Supply Voltage 230V ac | ||
Sound Level at 1m 112dB | ||
Minimum Operating Temperature -35°C | ||
Maximum Operating Temperature 70°C | ||
Maximum Sound Level 112dB | ||
Hazardous Area Certification No | ||
Tone Type 32 Selectable Tones | ||
Housing Material Flame Retardant ABS Plastic | ||
Standards/Approvals RoHS Compliant | ||
Base Width 169mm | ||
- COO (Country of Origin):
- GB
RS PRO Electronic Sounder – LED Lens, 230 V ac, 112 dB
This RS PRO electronic sounder is an efficient audible alarm suitable for marine, light industrial, and commercial applications. It emits a loud 112-decibel signal, ensuring it can be heard clearly over background noise, and alerting workers to emergencies and system failures that visual signals might miss. With 32 selectable tones, you can choose the one that best fits your workspace environment. The bright orange thermoplastic housing makes it easily visible, allowing for quick deactivation when conditions are safe again.
Why Would You Choose This Alarm Sounder?
The RS PRO Sounder is a combination audible and visual signalling device, delivering a sound output of up to 112dB. It also features an exceptionally bright light output from 25 integrated LEDs within the lens. Users can select flash rates via a jumper link on the beacon PCB, ensuring customisable alert settings for various environments.
Features and Benefits
Applications
