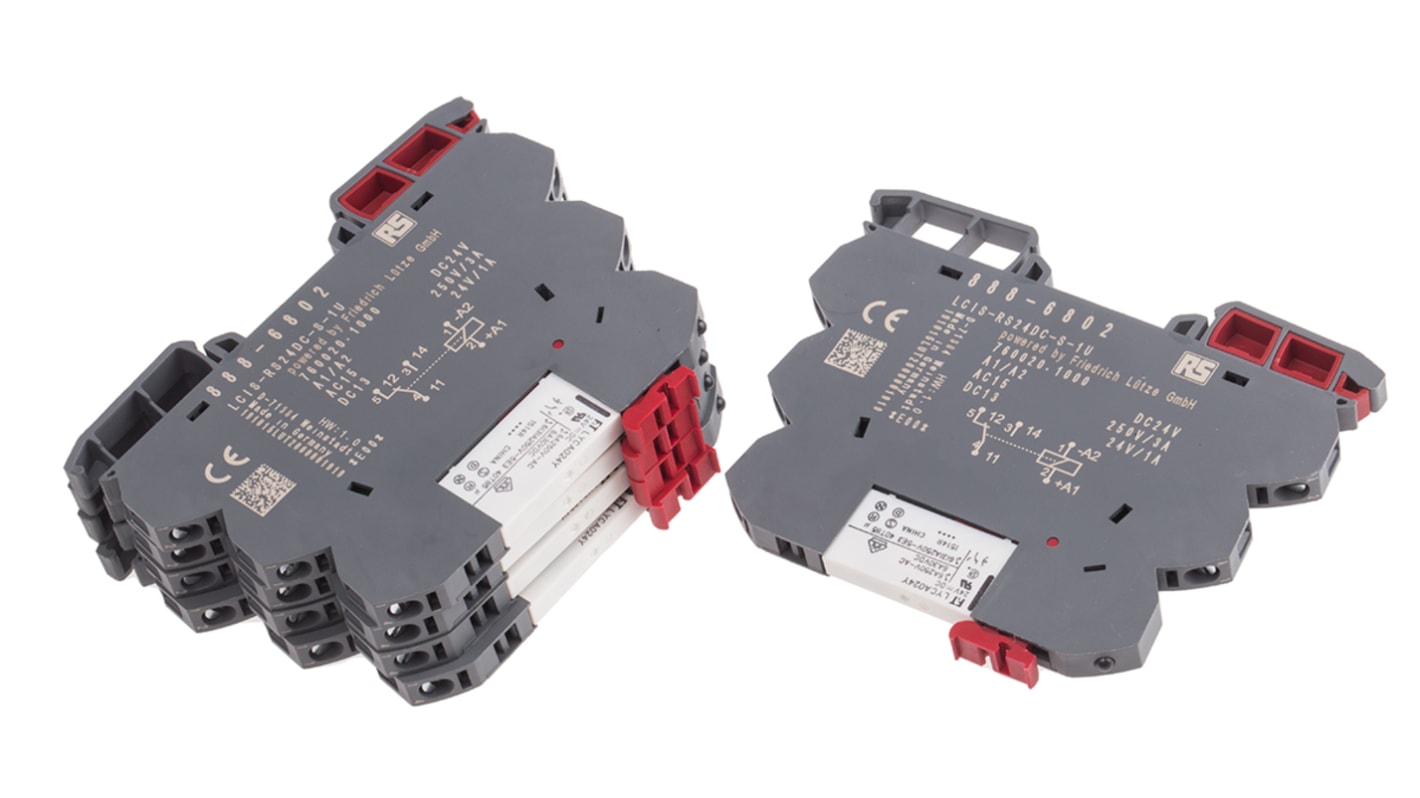

RS PRO Interface Relay, DIN Rail Mount, 24V dc Coil, SPDT, 1-Pole

View this category
Bulk discount available

Subtotal (1 pack of 5 units)*

£50.05

(exc. VAT)

£60.05

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 25 unit(s) ready to ship
  • Plus 65 unit(s) ready to ship from another location
  • Plus 340 unit(s) shipping from 04 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
5 - 20£10.01£50.05
25 - 45£9.70£48.50
50 +£9.288£46.44

*price indicative

RS Stock No.:
888-6802
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Coil Voltage

24V dc

Contact Configuration

SPDT

Mounting Type

DIN Rail

Number of Poles

1

Series

LCIS

Minimum Input Voltage

19.2V

Maximum Input Voltage

30V

Terminal Type

Screw

Switching Voltage

17 → 250V

Depth

76mm

Height

93mm

Length

6.2mm

Contact Material

Silver Alloy

Input Current

11mA

Turn On Time

6ms

Input Voltage Range

19.2 → 30V

Maximum Operating Temperature

+60°C

Minimum Operating Temperature

-25°C

Relay Switching Classification

General Purpose Relay

Life

>50000000 (Mechanical) operations

Standards Met

CSA, GL, UL

Operating Temperature Range

-25 → +60°C

Turn Off Time

13ms

Dimensions

6.2 x 76 x 93mm

COO (Country of Origin):
DE

RS PRO Interface Relay Module, SPDT, DIN Rail, 24 V DC, Screw Terminal


Need to control two different circuit terminals? Try this relay module from RS PRO. For maximum versatility, it can open and close the terminals, as well as regulate, measure and amplify the voltage.


The relay is easy to install as it has screw terminals and can be mounted onto a DIN rail. You can set it up quickly as the insulated bridges in various pin configurations make for a reduced wiring time.

This unit offers a long lifespan of more than 50 million mechanical cycles. It has a green LED indicator that makes it easy to check that the connections are working, and you can label it with up to 24 characters for ease of use.

Features and Benefits



  • Interface application

  • Coil voltage of 24 V DC

  • Single pole, double throw, (SPDT) contact configuration

  • Silver alloy contact material

  • Dimensions of 6.2 mm (length) x 93 mm (height) x 76 mm (depth)

  • Green LED (light-emitting diode) indicator

  • Reverse diode

  • Lifespan of greater than 50,000,000 (mechanical) cycles

  • Operating temperature range of -25°C to +60°C

  • Maximum switching voltage 250 V AC/DC

  • DIN rail mounting type

  • Single pole

  • General-purpose relay switching classification

  • Meets Canadian Standards Association (CSA), Germanischer Lloyd (GL) and Underwriters Laboratories (UL) safety standards

  • Switching current of 11 mA

  • Screw terminal type
