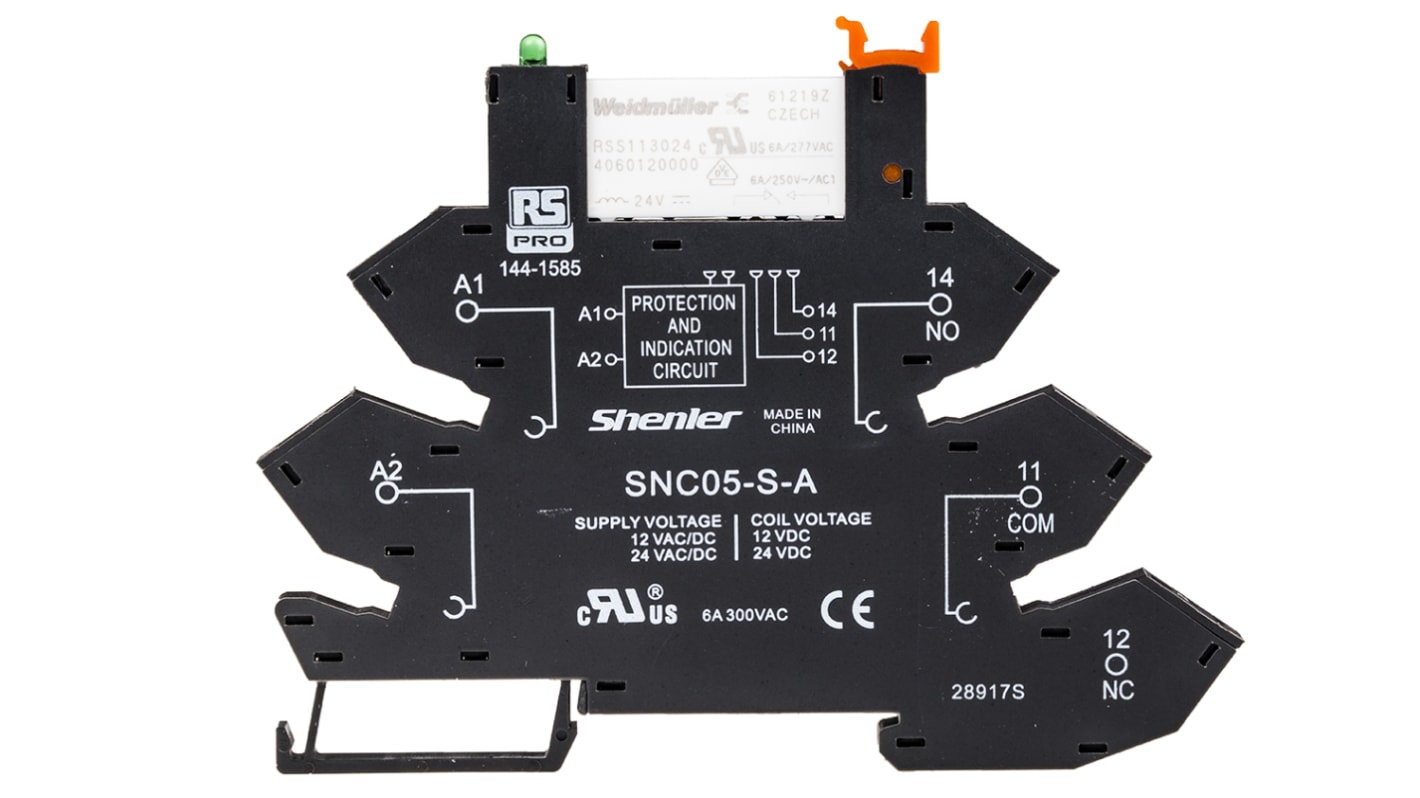

RS PRO Interface Relay, DIN Rail Mount, 24V dc Coil, SPDT
- RS Stock No.:
- 144-1585
- Brand:
- RS PRO
Subtotal (1 unit)*
£14.16
(exc. VAT)
£16.99
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 168 unit(s) ready to ship
- Plus 20 unit(s) ready to ship from another location
- Plus 72 unit(s) shipping from 10 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £14.16 |
*price indicative
- RS Stock No.:
- 144-1585
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Coil Voltage | 24V dc | |
| Contact Configuration | SPDT | |
| Mounting Type | DIN Rail | |
| Depth | 6.2mm | |
| Height | 103mm | |
| Length | 96mm | |
| Input Current | 8A | |
| Input Voltage Range | 300V dc | |
| Minimum Operating Temperature | -40°C | |
| Operating Temperature Range | -40 → +85°C | |
| Maximum Operating Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Coil Voltage 24V dc | ||
Contact Configuration SPDT | ||
Mounting Type DIN Rail | ||
Depth 6.2mm | ||
Height 103mm | ||
Length 96mm | ||
Input Current 8A | ||
Input Voltage Range 300V dc | ||
Minimum Operating Temperature -40°C | ||
Operating Temperature Range -40 → +85°C | ||
Maximum Operating Temperature +85°C | ||
- COO (Country of Origin):
- CN
RS PRO 24 V DC SPDT Interface Relay Module, DIN Rail
This interface relay module from the RS PRO range is designed to digitally transmit signals between components that you can't directly connect to one another. This reliable product can safely convert small electrical currents into larger ones, making it suitable for use with components that have varying electrical potential and voltage ratings.
This single pole double throw (SPDT) switch can be added to complex circuits, as it can connect to two different output settings. Its compact dimensions mean it's perfect for use in smaller spaces.
The relay is RoHS (Restriction of Hazardous Substances) compliant, so it contains only minimal amounts of any harmful materials. It has an operating temperature range of -40°C to +85°C, making it suitable for use in a variety of demanding applications.
This single pole double throw (SPDT) switch can be added to complex circuits, as it can connect to two different output settings. Its compact dimensions mean it's perfect for use in smaller spaces.
The relay is RoHS (Restriction of Hazardous Substances) compliant, so it contains only minimal amounts of any harmful materials. It has an operating temperature range of -40°C to +85°C, making it suitable for use in a variety of demanding applications.
Features and Benefits
- Coil voltage of 24 V DC
- SPDT (single pole double throw) contact configuration
- Dimensions of 6.2 (depth) x 103 (height) x 96 mm (length)
- Input current of 8 A
- Input voltage range of 300 V DC
- Operating temperature range of -40°C to +85°C
- DIN rail mounting type
