Finder 39 Series Interface Relay, DIN Rail, 24V ac/dc Coil, SPST, 11mA
- RS Stock No.:
- 788-8664
- Mfr. Part No.:
- 39.21.0.024.0060
- Brand:
- Finder

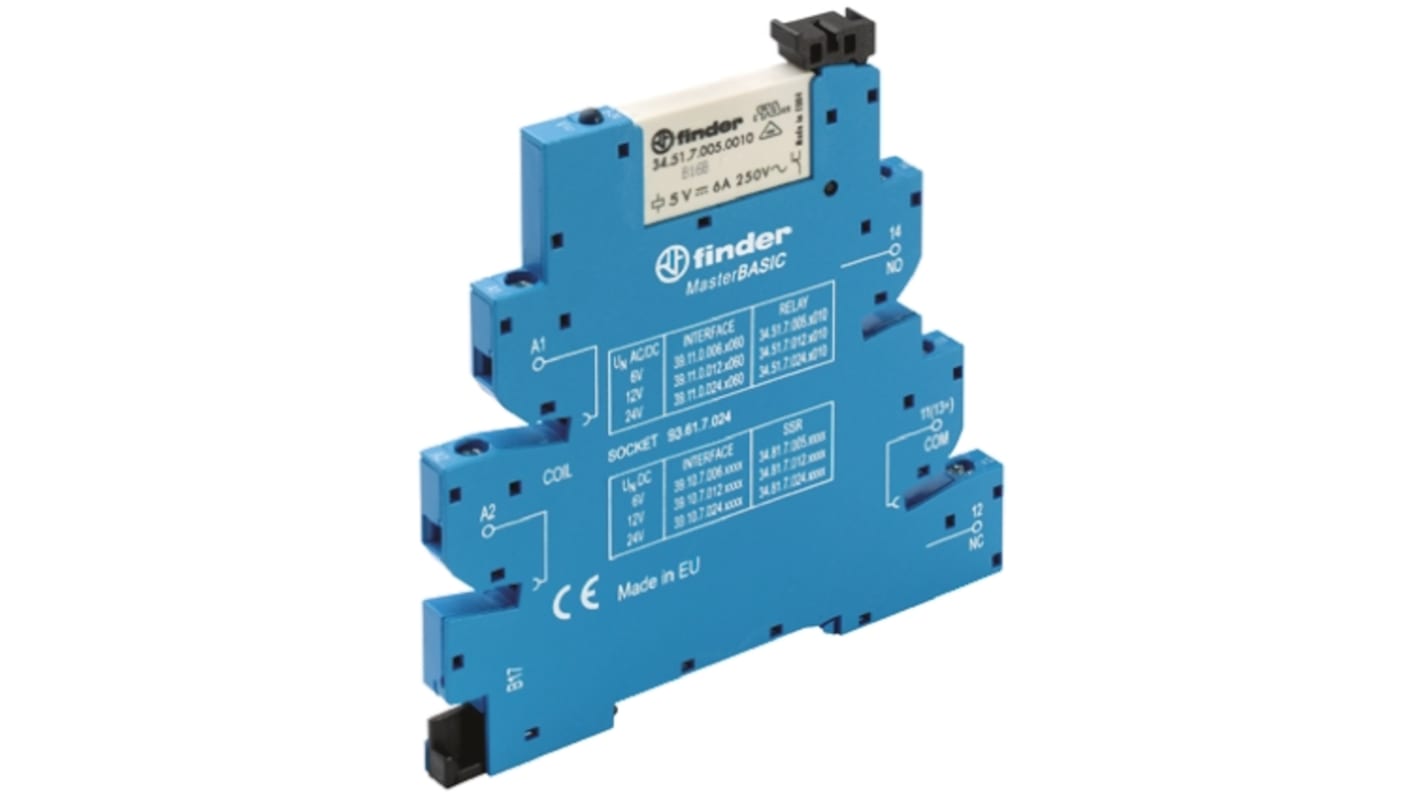

Image representative of range
Bulk discount available
Subtotal (1 unit)*
£19.24
(exc. VAT)
£23.09
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 12 unit(s) ready to ship
- Plus 7 unit(s) ready to ship from another location
- Plus 29 unit(s) shipping from 16 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £19.24 |
| 5 - 9 | £18.63 |
| 10 + | £17.84 |
*price indicative
- RS Stock No.:
- 788-8664
- Mfr. Part No.:
- 39.21.0.024.0060
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Finder | |
| Product Type | Interface Relay | |
| Coil Voltage | 24V ac/dc | |
| Contact Configuration | SPST | |
| Mount Type | DIN Rail | |
| Series | 39 | |
| Terminal Type | Screw | |
| Switching Current | 6A | |
| Switching DC Voltage | 24V dc | |
| Minimum Operating Temperature | -40°C | |
| Coil Current | 11mA | |
| Switching AC Voltage | 250V ac | |
| Maximum Operating Temperature | 70°C | |
| Contact Material | Silver Alloy | |
| Length | 6.2mm | |
| Height | 87mm | |
| Width | 90.7mm | |
| Standards/Approvals | EAC, CE | |
| Select all | ||
|---|---|---|
Brand Finder | ||
Product Type Interface Relay | ||
Coil Voltage 24V ac/dc | ||
Contact Configuration SPST | ||
Mount Type DIN Rail | ||
Series 39 | ||
Terminal Type Screw | ||
Switching Current 6A | ||
Switching DC Voltage 24V dc | ||
Minimum Operating Temperature -40°C | ||
Coil Current 11mA | ||
Switching AC Voltage 250V ac | ||
Maximum Operating Temperature 70°C | ||
Contact Material Silver Alloy | ||
Length 6.2mm | ||
Height 87mm | ||
Width 90.7mm | ||
Standards/Approvals EAC, CE | ||
- COO (Country of Origin):
- IT
39 Series
A wide range of relay interface modules suitable for different applications.
Connections for 16-way jumper link
Integral coil indication and protection circuit
Space saving 6.2 mm wide
Secure retention and easy ejection by plastic clip
Dual screw head (blade+cross) terminals
35 mm rail mounting (EN 60715)
