Finder 4C Series Interface Relay Module, DIN Rail Mount, 12V ac Coil, DPDT, 2-Pole, 8/15A Load

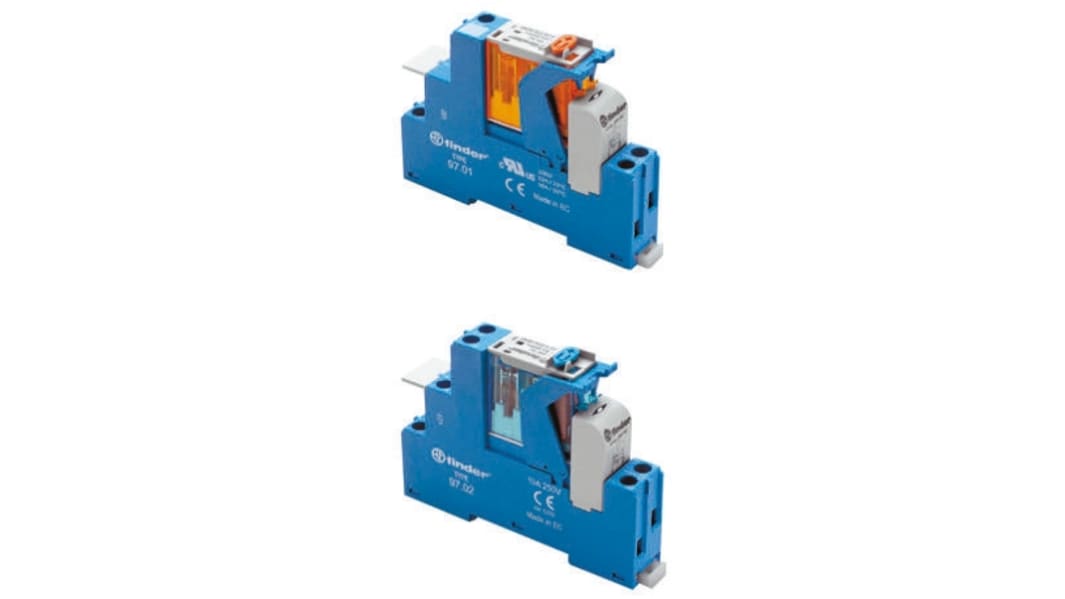

Image representative of range

View this category
Bulk discount available

Subtotal (1 unit)*

£23.83

(exc. VAT)

£28.60

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 14 unit(s) ready to ship
  • Plus 21 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£23.83
5 - 9£23.11
10 +£22.14

*price indicative

Sponsored
Finder Relay Sockets
Finder Relay Sockets
Finder relay sockets are known for their reliability, ease of use, and versatility in various electrical and industrial applications. Browse the complete range of Finder Relay Sockets today.
Explore Finder Relays Sockets
RS Stock No.:
613-7007
Mfr. Part No.:
4C.02.8.012.0060SPA
Brand:
Finder
Find similar products by selecting one or more attributes.
Select all

Brand

Finder

Coil Voltage

12V ac

Contact Configuration

DPDT

Mounting Type

DIN Rail

Number of Poles

2

Series

4C Series

Load Current Rating

8/15A

Minimum Input Voltage

8.8V

Load Voltage Rating

250/440V ac

Maximum Input Voltage

13.2V ac/dc

Terminal Type

Screw

Switching Voltage

250 → 440V ac

Depth

64.6mm

Height

82.9mm

Length

15.8mm

Contact Material

Silver Alloy

Input Current

90mA

Dimensions

81 x 15.8 x 64.6mm

Maximum Operating Temperature

+70°C

Minimum Operating Temperature

-40°C

Standards Met

cURus, EAC

Relay Type

Interface Relay

Accessory Type

Interface Relay

Life

100000 Cycles

Turn On Time

10ms

Turn Off Time

10ms

Input Resistance

80Ω

Operating Temperature Range

-40 → +70°C

COO (Country of Origin):
IT

Finder 4C Series Interface Relay Module, 12V AC Coil Voltage, DPDT Contact Configuration - 4C.02.8.012.0060SPA


This interface relay module is engineered for seamless integration with PLC and electronic systems. With compact dimensions of 81 x 15.8 x 64.6 mm, it operates on a coil voltage of 12V AC. The device boasts a double-pole double-throw (DPDT) configuration, making it ideal for versatile relay applications in various control and automation tasks.

Features & Benefits


• High load rating up to 15 A for diverse applications
• Rated switching voltage operation between 250 to 440V AC
• Reliable silver alloy relay contacts enhance durability
• Quick turn-on and turn-off times of 10 ms improve performance
• Compatible with DIN rail mounting for easy installation
• Exceptional life expectancy of 100,000 cycles ensures longevity

Applications


• Used for escalators and hoists automation
• Ideal for road and tunnel lighting control
• Suitable for carousel warehouse operations
• Utilised in control panels for electrical distribution

What are the specific electrical ratings for load current and voltage?


The relay module supports a load current rating of 8 A at 250V AC and 15 A at 440V AC, ensuring compatibility with various electrical systems.

How does the module handle different coil voltages?


It operates effectively within a voltage range of 8.8V to 13.2V AC/DC, accommodating varying power supply conditions while maintaining optimal performance.

What is the significance of the insulation ratings provided?


The module features a dielectric strength of 6 kV and an insulation rated voltage of 250V, ensuring safe operation in demanding environments and reducing the risk of electrical failure.
