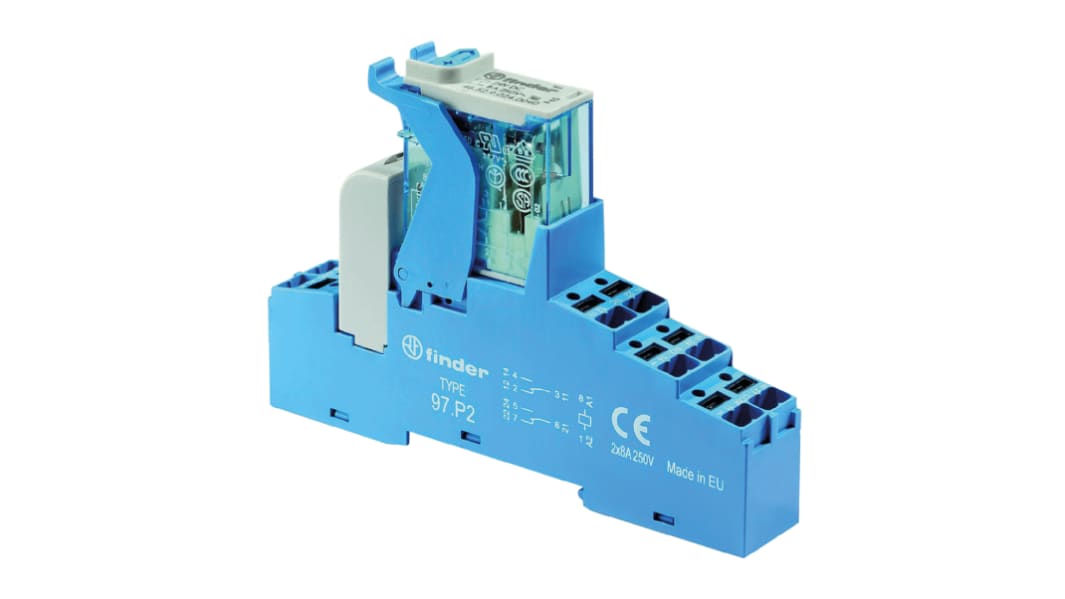

Finder 4C Series Interface Relay Module, DIN Rail Mount, 12V dc Coil, DPDT-2C/0, 2-Pole, 8A Load

View this category

Subtotal (1 unit)*

£20.98

(exc. VAT)

£25.18

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 53 unit(s) ready to ship
  • Plus 17 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£20.98

*price indicative

Sponsored
Finder Relay Sockets
Finder Relay Sockets
Finder relay sockets are known for their reliability, ease of use, and versatility in various electrical and industrial applications. Browse the complete range of Finder Relay Sockets today.
Explore Finder Relays Sockets
RS Stock No.:
123-2835
Distrelec Article No.:
301-62-767
Mfr. Part No.:
4C.P2.9.012.0050SPA
Brand:
Finder
Find similar products by selecting one or more attributes.
Select all

Brand

Finder

Coil Voltage

12V dc

Contact Configuration

DPDT-2C/0

Mounting Type

DIN Rail

Series

4C Series

Number of Poles

2

Load Current Rating

8A

Load Voltage Rating

250/440V ac

Minimum Input Voltage

250V ac

Maximum Input Voltage

440V ac

Terminal Type

Push In

Switching Voltage

250 V ac → 440V ac

Depth

66.8mm

Height

95.5mm

Length

15.8mm

Contact Material

Silver Alloy

Input Current

40mA

Life

100000 Cycles

Standards Met

CE, CSA, CULus, EAC, GOST, IMQ, VDE

Special Features

AC Coils or DC Coils, Identification Label, Supply Status Indication & Coil Suppression Module as Standard

Turn On Time

(ac) 10 ms, (dc) 10ms

Input Resistance

300Ω

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+70°C

Operating Temperature Range

-40 → +70°C

Relay Type

Interface Relay

Accessory Type

Interface Relay

Turn Off Time

(dc) 10 ms, (ac) 3ms

Relay Switching Classification

General Purpose Relay

Dimensions

15.8 x 66.8 x 95.5mm

COO (Country of Origin):
IT

Finder 4C Series Interface Relay Module, 12V DC Coil Voltage, 2 Poles - 4C.P2.9.012.0050SPA

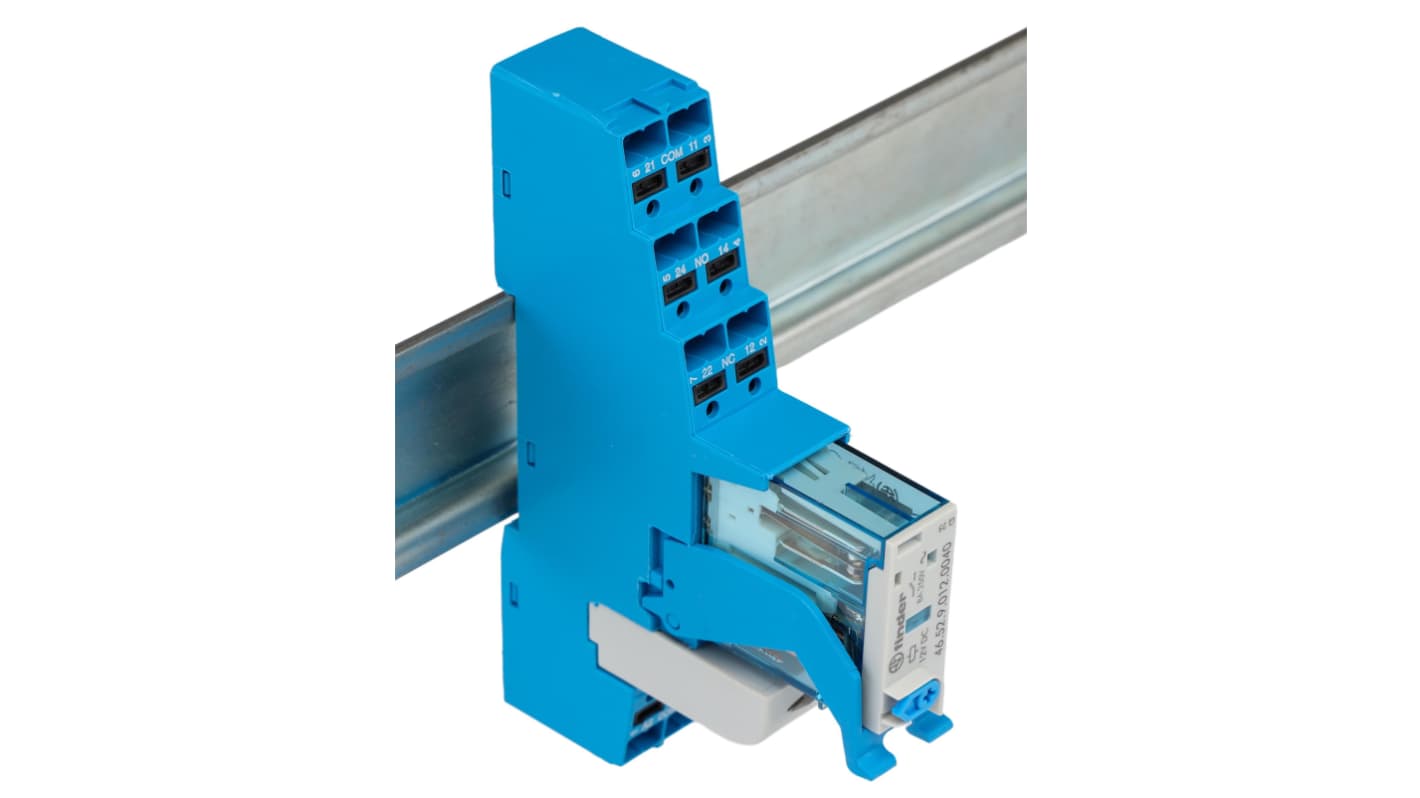

This interface relay module is an essential component designed for automation applications, featuring a compact design with dimensions of 15.8 x 66.8 x 95.5 mm. Operating at a coil voltage of 12V DC, this relay module utilises a DPDT configuration to facilitate effective switching between electrical circuits. It is suitable for DIN rail mounting, ensuring versatile installation in various panels.

Features & Benefits


• Equipped with dual contact configurations for expanded functionality
• Solid performance with a load current rating of 8 A
• Versatile operation across 250V AC to 440V AC voltage ranges
• Incorporates push-in terminals for easy wiring and maintenance
• Robust construction ensures a mechanical life of up to 10 million cycles
• Designed to function efficiently in a wide temperature range from -40 °C to +70 °C

Applications


• Used for controlling escalators in modern construction
• Suitable for road and tunnel lighting systems
• Implemented in hoists and cranes for safety operations
• Utilised in carousel warehouses for efficient logistics
• Ideal for integration into control panels and electrical distribution

What input current is necessary for operation?


An input current of 40 mA is required for effective relay operation, ensuring reliable switching performance.

How does the relay handle various coil voltages?


It accommodates a range of coil voltages, specifically designed for both AC and DC use, enhancing its versatility in different applications.

What is the significance of the relay's DPDT configuration?


The DPDT configuration allows for dual circuit control, providing more complex switching capabilities for intricate electrical systems.

What kind of terminals does this module utilise?


It features push-in terminals that facilitate quick and easy installation, minimising assembly time and enhancing connections.

Is there a way to confirm supply status?


Yes, the module includes a supply status indication as a standard feature, aiding in the monitoring of operational conditions.
