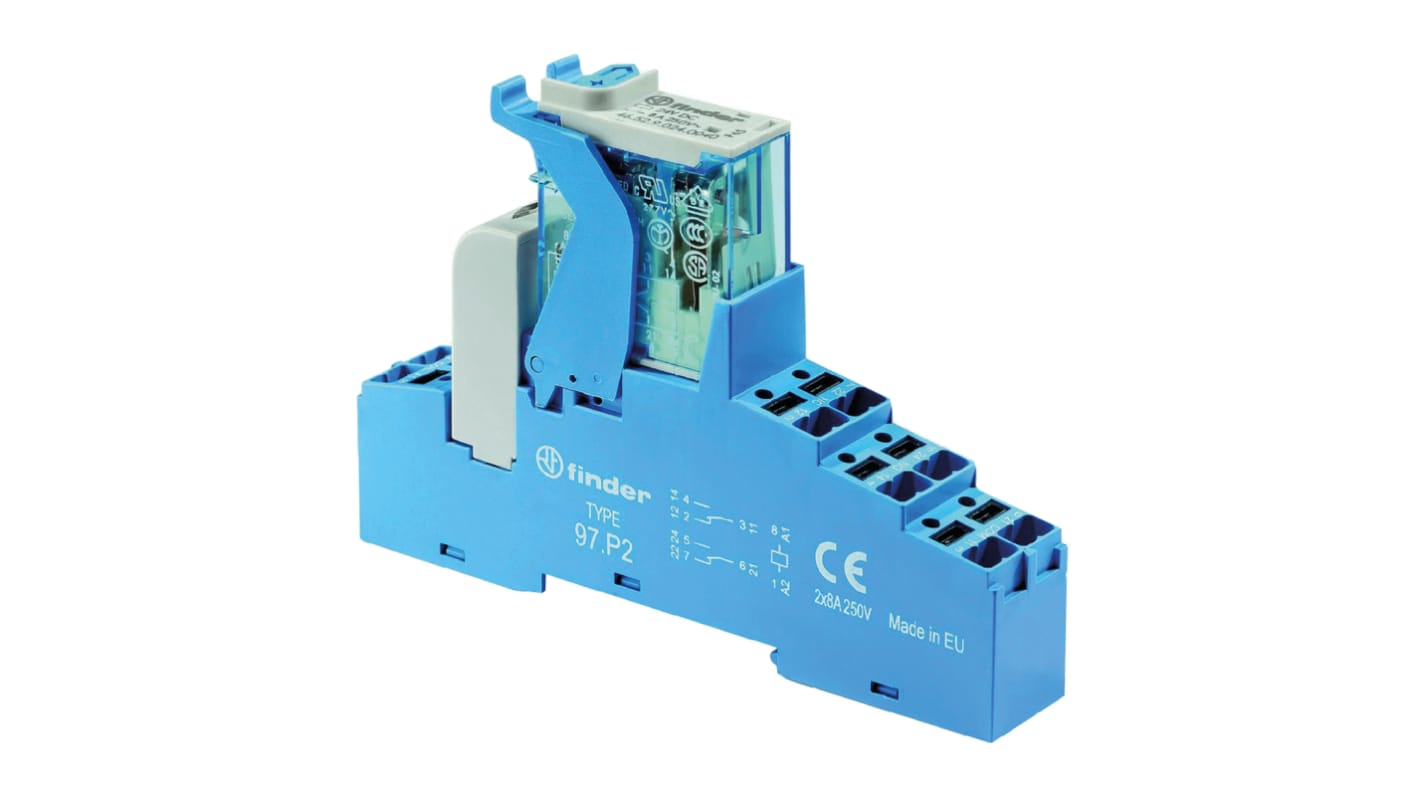

Finder 4C Series Interface Relay, DIN Rail Mount, 12V ac Coil, DPDT-2C/0, 2-Pole, 8A Load

RS Stock No.:: 123-2830
Mfr. Part No.:: 4C.P2.8.012.0060SPA
Brand:: Finder

Finder 4C Series Interface Relay, DIN Rail Mount, 12V ac Coil, DPDT-2C/0, 2-Pole, 8A Load

Available to back order for despatch 04/12/2024

Price Each

£22.12

(exc. VAT)

£26.54

(inc. VAT)

Units	Per unit
1 +	£22.12

RS Stock No.:: 123-2830
Mfr. Part No.:: 4C.P2.8.012.0060SPA
Brand:: Finder

Datasheet

Attribute	Value
Coil Voltage	12V ac
Contact Configuration	DPDT-2C/0
Mounting Type	DIN Rail
Number of Poles	2
Load Current Rating	8A
Maximum Input Voltage	440V ac
Minimum Input Voltage	250V ac
Switching Voltage	250 V ac → 440V ac
Terminal Type	Push In
Depth	66.8mm
Height	95.5mm
Length	15.8mm
Series	4C Series
Contact Material	Silver Alloy
Input Current	90mA
Operating Temperature Range	-40 → +70°C
Input Resistance	80Ω
Minimum Operating Temperature	-40°C
Relay Switching Classification	General Purpose Relay
Standards Met	CE, CSA, CULus, EAC, GOST, IMQ, VDE
Special Features	AC Coils or DC Coils, Identification Label, Supply Status Indication & Coil Suppression Module as Standard
Turn Off Time	(dc) 10 ms, (ac) 3ms
Maximum Operating Temperature	+70°C
Dimensions	15.8 x 66.8 x 95.5mm
Turn On Time	(ac) 10 ms, (dc) 10ms

Finder 4C Series Interface Relay, DIN Rail Mount, 12V ac Coil, DPDT-2C/0, 2-Pole, 8A Load

4C Series with Instant Eject Relays
